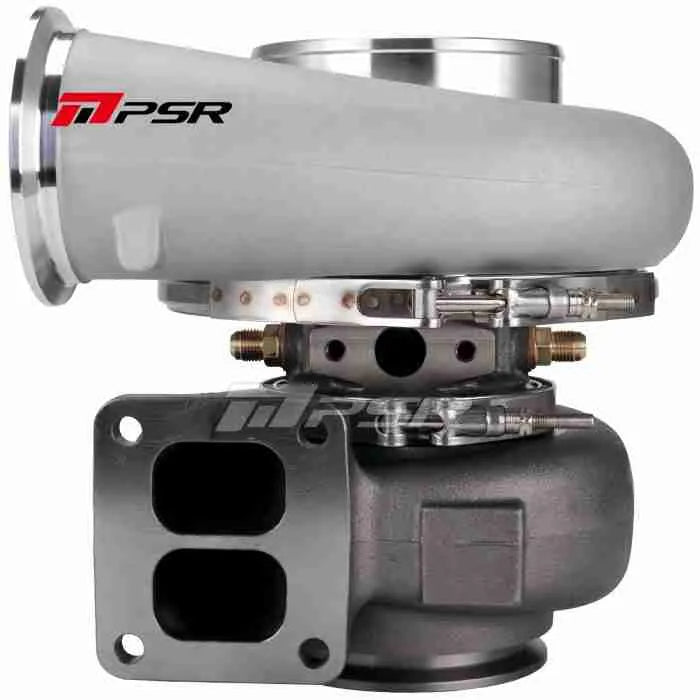

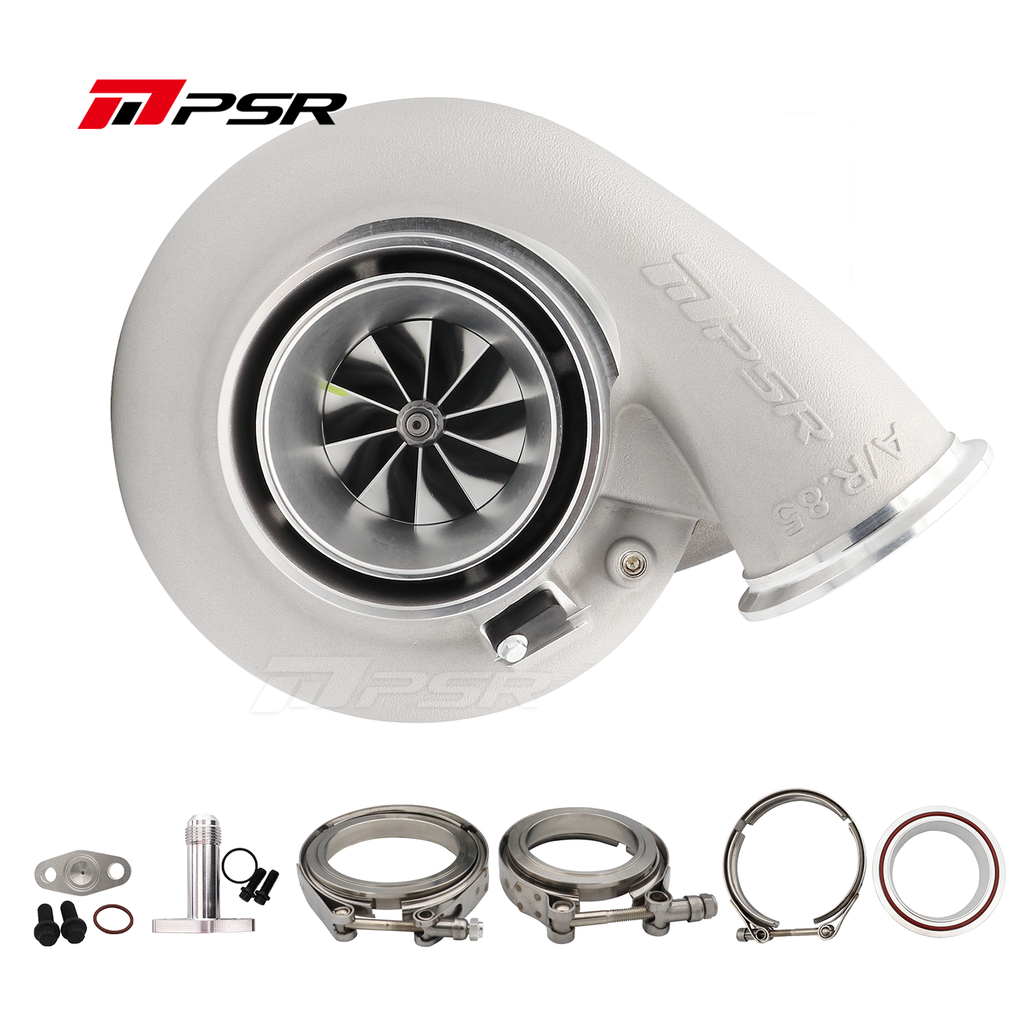

PSR Class Legal 6275G Dual Ball Bearing Turbocharger

• PSR Class Legal Turbo with 62/98mm Compressor wheel
• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

• -Compressor Wheel: 62*98mm

  -Turbine Wheel: 82*75mm

  -Compressor Inlet: 5″ Hose

  -Compressor Outlet: 3″ V-Band

  -Turbine Inlet: 3″ V-Band

  -Turbine Outlet: 3.5″ V-Band

  -Water Ports: -6AN

  -Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included

  -Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

  Turbine housing option:

  1. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
  2. T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  3. T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  4. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
  5. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
  6. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
  7. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R

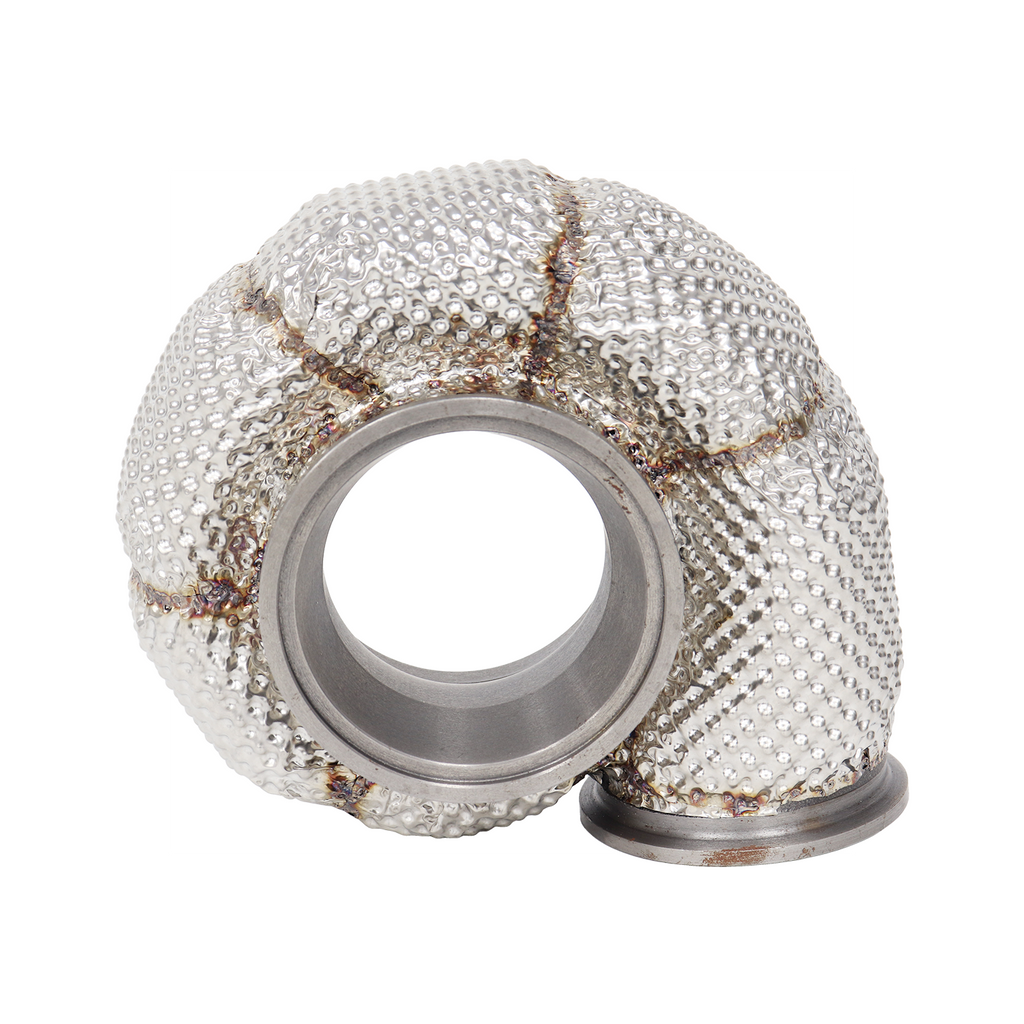

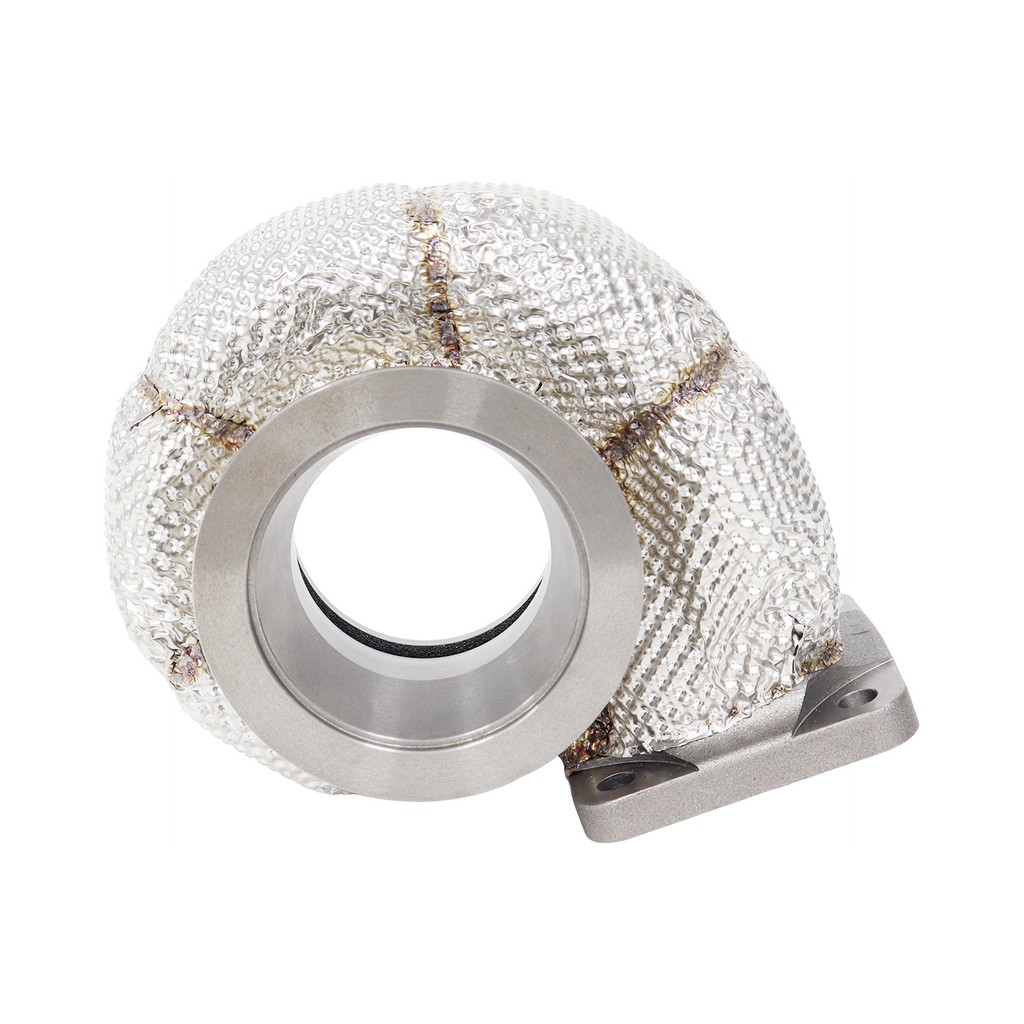

Stainless steel wrapped housing option

Where the stainless steel wrapped style is selected with a turbine housing, Pulsar adds an external stainless heat-retaining wrap around that housing to help contain radiant heat near the turbine. Standard Housing and Stainless Steel Wrapped Housing are separate selectable styles; the wrapped style costs extra.

Pulsar advises allowing 1–2 weeks for a wrapped housing when it is not in stock. BBT can confirm current availability and dispatch timing for the chosen configuration.

If the turbo is selected without a turbine housing, there is no turbine housing to wrap. Choose an eligible turbine housing together with the wrapped style when a wrapped unit is required.

BBT can help match the selected turbine A/R, flange pattern, wastegate arrangement and wrapped-housing clearance to your manifold, exhaust and turbo setup. Send BBT your vehicle and turbo details for a configuration check.

Current selectable options

• Turbine Housing Option: Without Turbine Housing, T4 Divided 1.01 A/R, T4 Divided 1.15 A/R, T4 Divided 1.28 A/R, T4 Open 1.15 A/R, Dual V Band 1.01 A/R, Dual V Band 1.15 A/R, Dual V Band 1.28 A/R, T4 Divided .95 A/R
• Housing Style: Standard Housing, Stainless Steel Wrapped Housing
