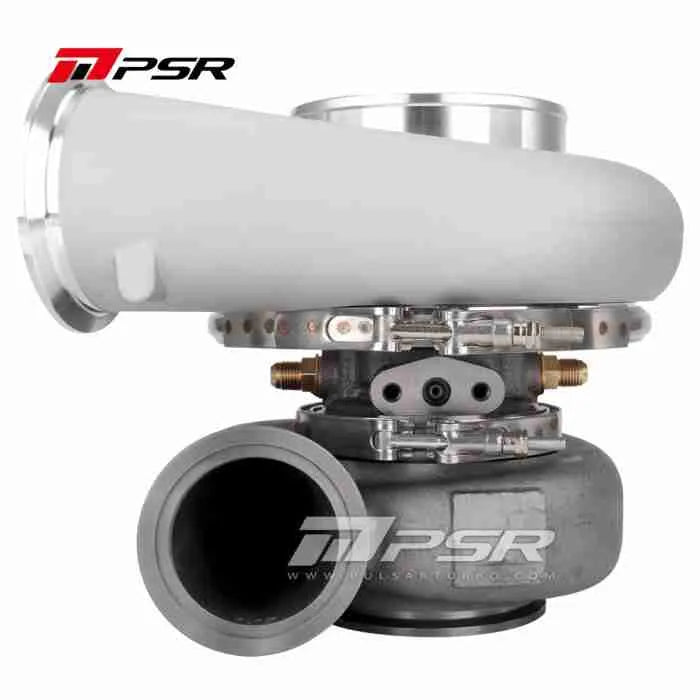

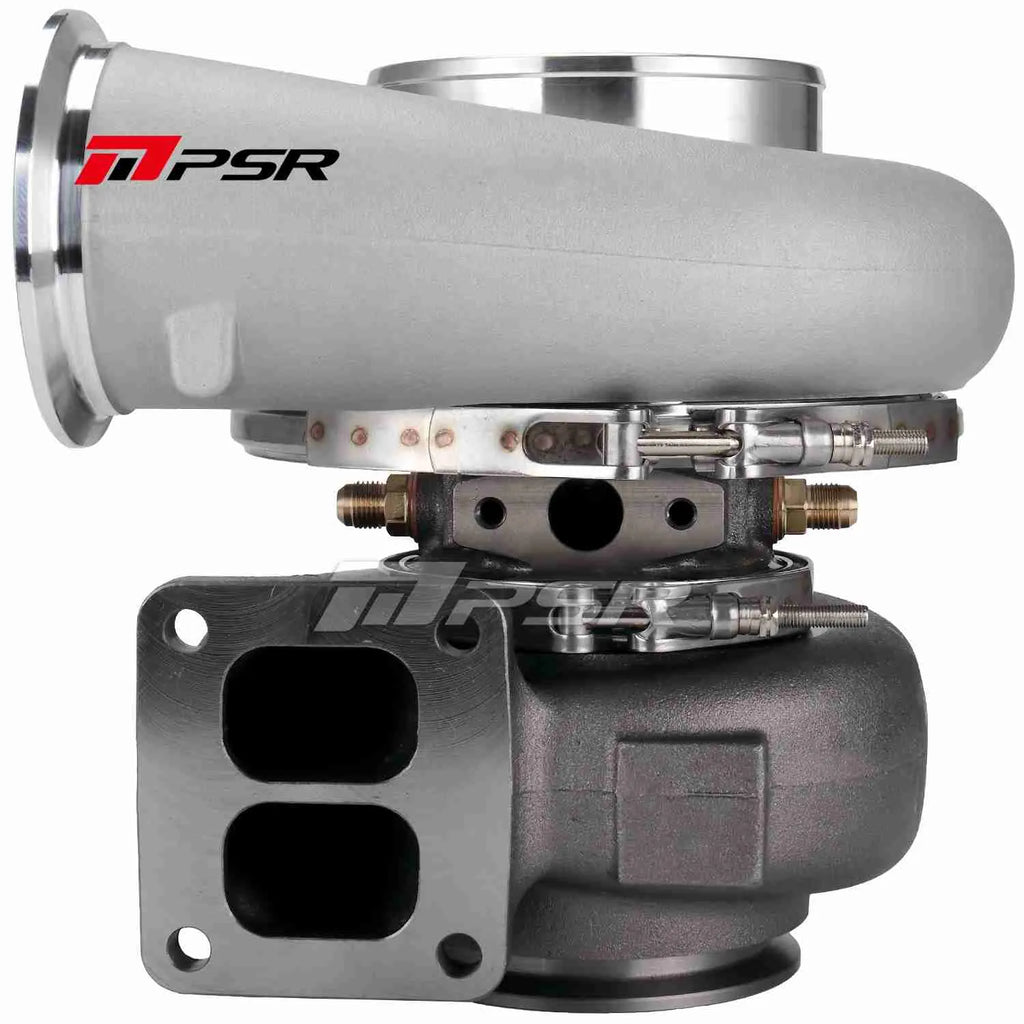

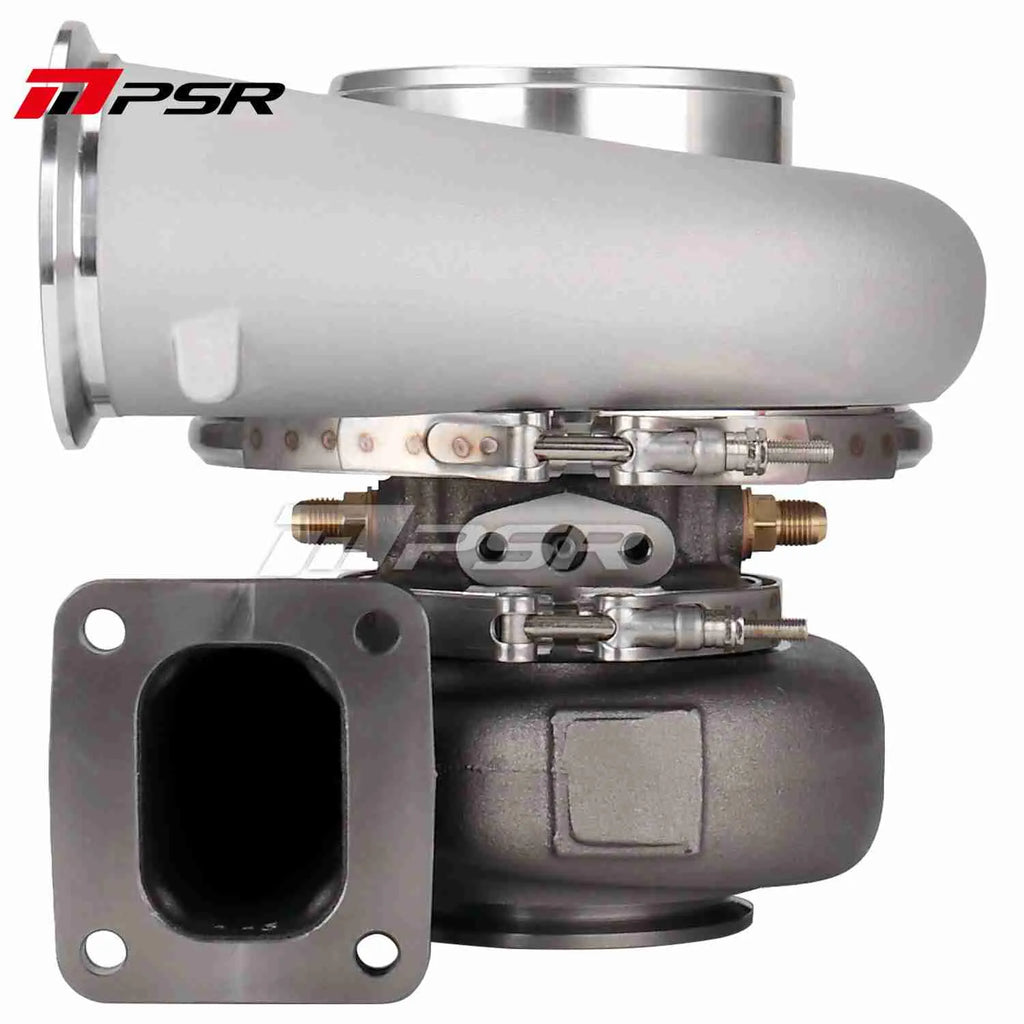

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

$1,299.00

Compressor Housing Option

Turbine Housing Option

Housing Style

PSR Class Legal Turbo with 67/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

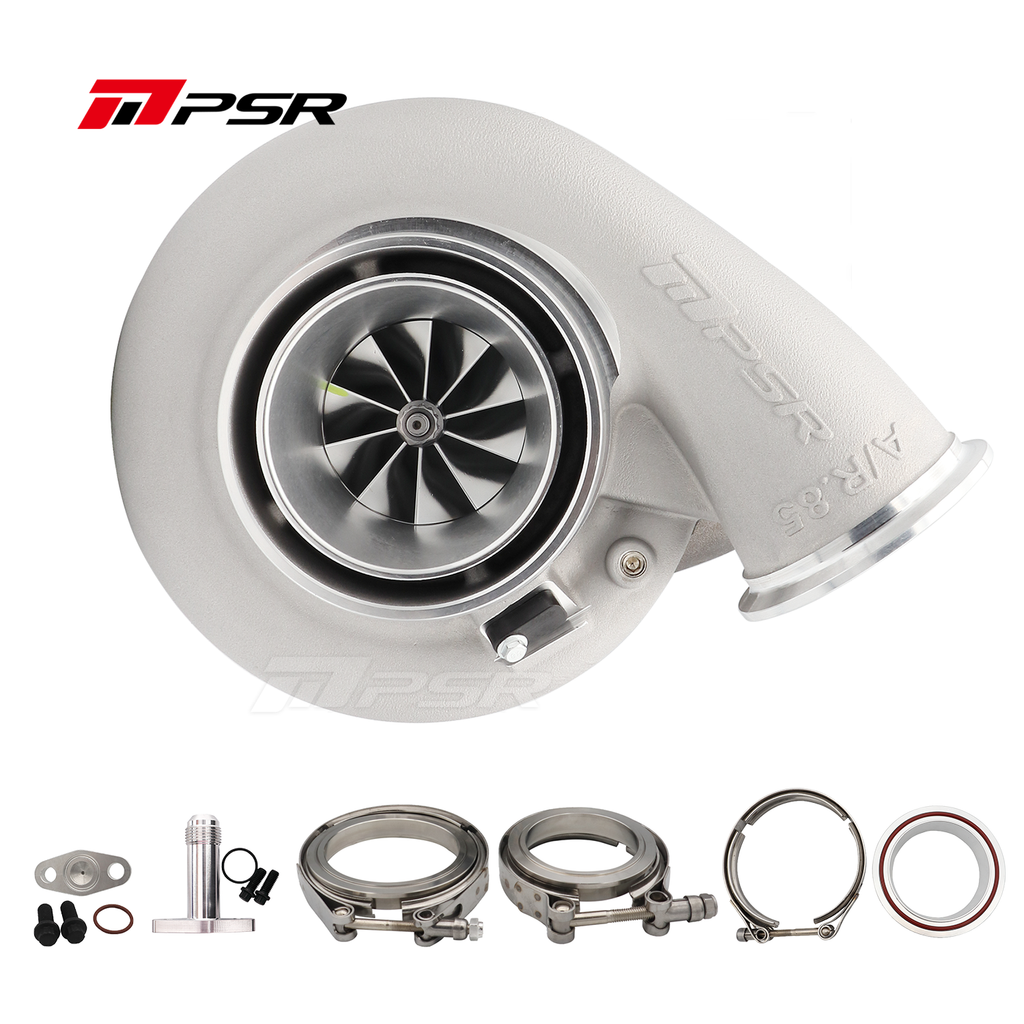

Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turbo. Inlet, 3.5”/4” flange kit for Turbo. Outlet and oil Drain Fitting kit are included by default
-Compressor Wheel: 67*98mm

-Turbine Wheel: 81.6*89mm

-Compressor Inlet: 5″ Hose

-Compressor Outlet: 3″ V-Band

-Water Ports: -6AN

-Oil Feed: Flange Required

-Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

-Eight Turbine housings in Option:
1. T4(Divided) inlet, Vband outlet, 1.01 A/R
2. T4(Open) inlet, Vband outlet, 1.15 A/R
3. T4(Divided) inlet, Vband outlet, 1.15 A/R
4. T4(Divided) inlet, Vband outlet, 1.28 A/R
5. T4(Divided) inlet, Vband outlet, 1.44 A/R
6. Vband inlet and Vband outlet, 1.01 A/R
7. Vband inlet and Vband outlet, 1.15 A/R
8. Vband inlet and Vband outlet, 1.28 A/R

Current Selectable Options

Compressor Housing Option: Without Compressor Cover, Standard
Turbine Housing Option: Without Turbine Housing, T4 Open 1.15 A/R, T4 Divided .95 A/R, T4 Divided 1.01 A/R, T4 Divided 1.15 A/R, T4 Divided 1.28 A/R, T4 Divided 1.44 A/R, Dual V Band 1.01 A/R, Dual V Band 1.15 A/R, Dual V Band 1.28 A/R
Housing Style: Standard Housing, Stainless Steel Wrapped Housing

Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.

Ordering & Fitment

This listing is for PSR Class Legal 6782G Dual Ball Bearing Turbocharger. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.

Built by Boost & Tune Support

Built by Boost & Tune can assist with fitment, fabrication, installation and dyno calibration where required.

Supplier

Pulsar Turbos Australia

Product System

Turbo & Forced Induction

Application

Universal turbocharger for a custom installation. Confirm turbine inlet and outlet flanges, compressor dimensions and orientation, manifold and engine-bay clearance, oil and water connections, wastegate control, intake and exhaust fabrication, and supporting fuel and engine management before ordering.
