PSR PTE 7685E Ball Bearing Turbo Up to 1500HP

• Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
• Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 11 Blade Turbine Wheel

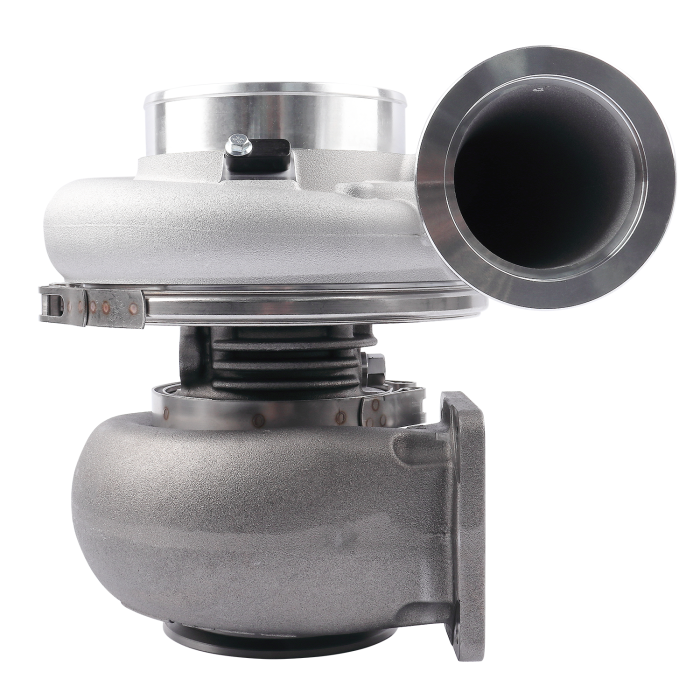

• T4 divided and V-Band In/out are available in turbine housing option
• Vband Flange kit for the exhaust housing included
• Billet Compressor Wheel: 76x 102.4mm, 7+7 Blade

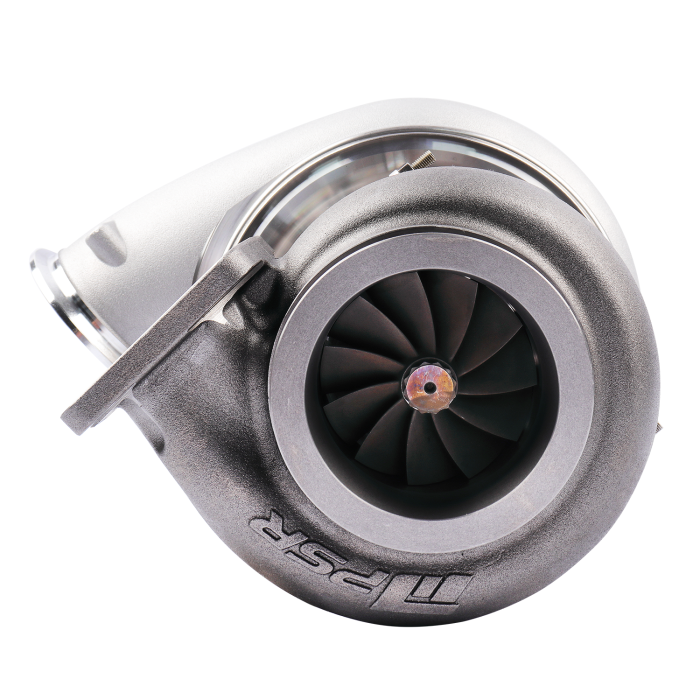

• Turbine Wheel: 85 x 89.5mm, 11 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
• Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

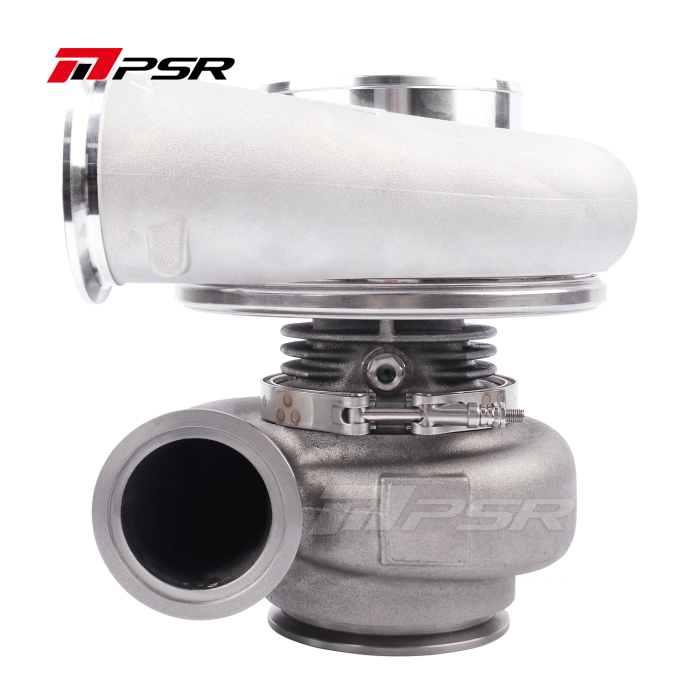

• Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)

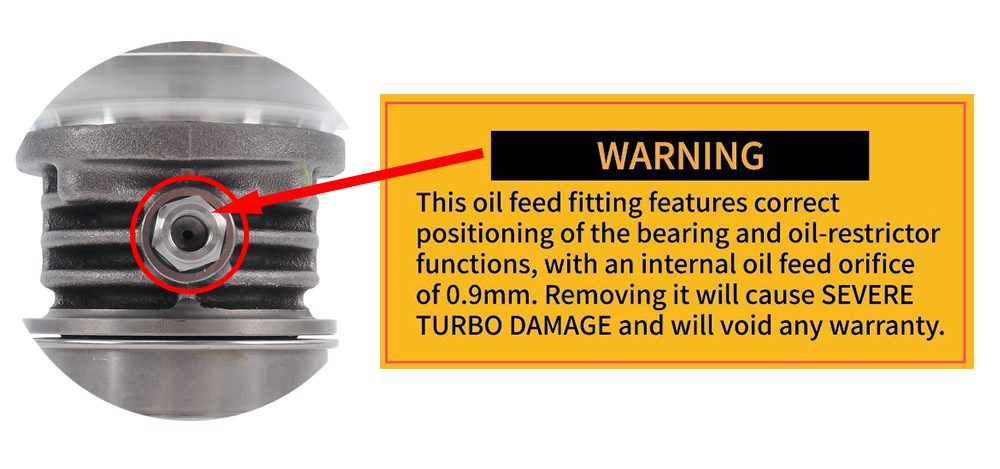

• The internal oil feed port is 0.9mm(An oil restrictor is not needed)
• Oil feed fitting: 1/8-27 NPSF

Stainless steel wrapped housing style

Pulsar offers Standard Housing and an extra-cost Stainless Steel Wrapped Housing style where applicable to the selected turbine housing. This external stainless covering is intended to help contain radiant heat at the turbine. The style selection applies to the housing chosen in the turbine housing menu.

Pulsar advises allowing 1–2 weeks for a wrapped housing if it is not available from stock. BBT can confirm availability and dispatch timing for the exact selected configuration.

A turbo selected without a turbine housing has no housing to wrap. Choose an eligible turbine housing with the wrapped style if a wrapped housing is required.

BBT can help confirm compressor-cover and turbine-housing choices, flange compatibility, wastegate arrangement and clearance around the wrapped turbine for your build. Send us your turbo and application details for a configuration review.

Current selectable options

• Compressor Cover Option: Standard
• Turbine Housing Option: Without Turbine Housing, Dual V Band 1.15 A/R, Dual V Band 1.28 A/R, T4 Divided 1.28 A/R
• Housing Style: Standard Housing, Stainless Steel Wrapped Housing
