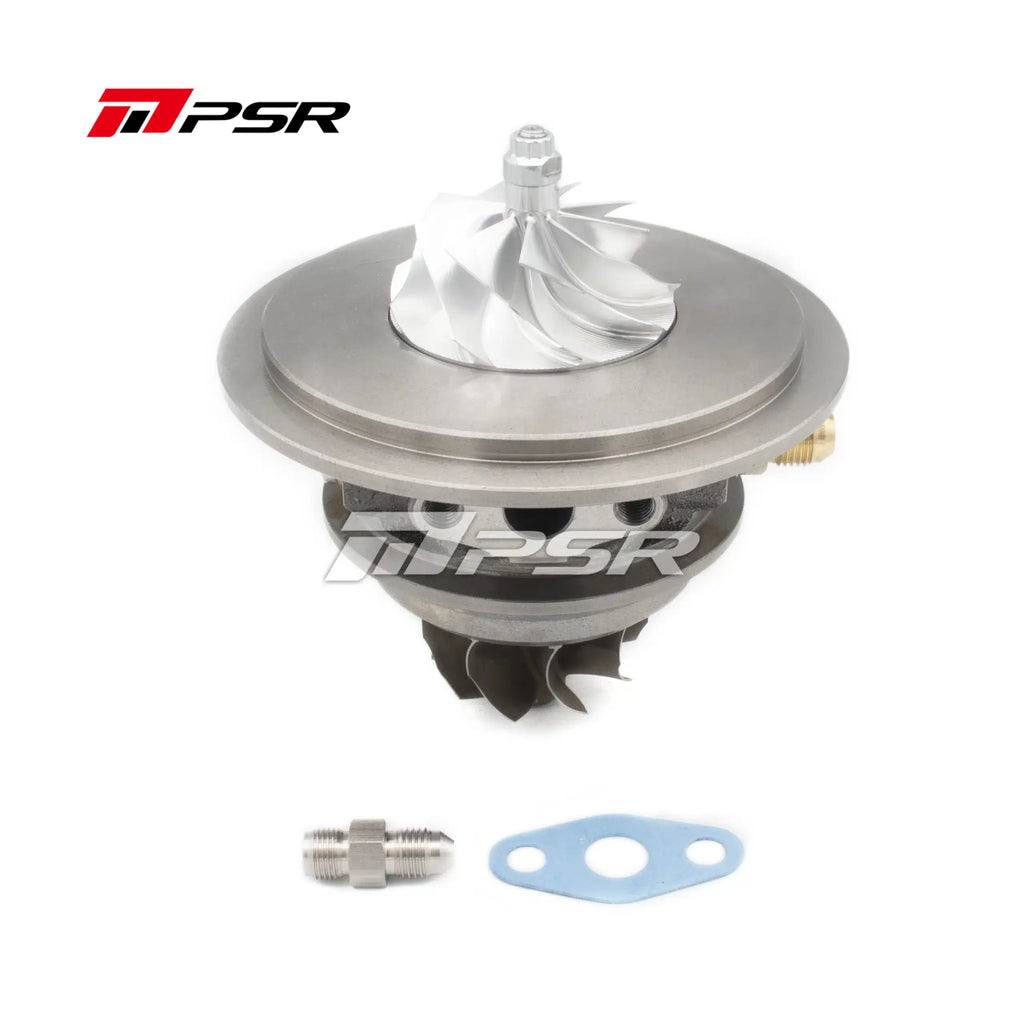

Pulsar 5455G 660HP 54mm Dual Ball Bearing Turbo

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade PTG-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Compressor Wheel: 54*67mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3 or T4
• Turbine Outlet: 3″ V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange
• Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

Stainless steel wrapped housing option

Where the stainless steel wrapped style is selected with a turbine housing, Pulsar adds an external stainless heat-retaining wrap around that housing to help contain radiant heat near the turbine. Standard Housing and Stainless Steel Wrapped Housing are separate selectable styles; the wrapped style costs extra.

Pulsar advises allowing 1–2 weeks for a wrapped housing when it is not in stock. BBT can confirm current availability and dispatch timing for the chosen configuration.

If the turbo is selected without a turbine housing, there is no turbine housing to wrap. Choose an eligible turbine housing together with the wrapped style when a wrapped unit is required.

BBT can help match the selected turbine A/R, flange pattern, wastegate arrangement and wrapped-housing clearance to your manifold, exhaust and turbo setup. Send BBT your vehicle and turbo details for a configuration check.

Current selectable options

• Compressor Housing Options: Without Compressor Housing, Standard, T51R
• Turbine Housing Options: Without Turbine Housing, .72 A/R Dual V Band IWG, .92 A/R DVB IWG, .72 A/R Dual V Band, .83 A/R Dual V Band, 1.01 A/R Dual V Band, .72 A/R T3 V Band, .83A/R T3 V Band, .82 A/R T4 V Band, .85 A/R Divided T4, T25 .72 A/R IWG, .49 A/R DVB IWG
• Housing Style: Standard Housing, Stainless Steel Wrapped Housing
