- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Optional Internal Wastegate (IWG), Billet Actuator (Working pressure 12 psi)
- Compressor Wheel: 62*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3 or T4
- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

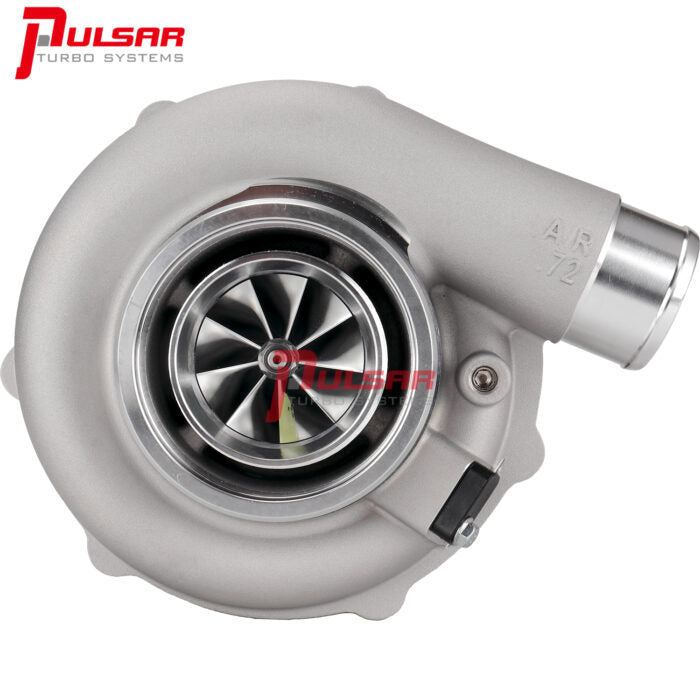

Pulsar 6255G 900HP 62mm Dual Ball Bearing Turbo
Without Compressor Housing / Without Turbine Housing / Standard Housing
$999.00
Skip to product information
Pulsar 6255G 900HP 62mm Dual Ball Bearing Turbo
$999.00
Current Selectable Options
- Compressor Housing Options: Without Compressor Housing, Standard, T51R
- Turbine Housing Options: Without Turbine Housing, .83 T3 V Band Rear, .82 T4 V Band Rear, .85 Divided T4, 1.01 Dual V Band, .72 Dual Band IWG, .72 Dual Band, .83 Dual V Band, .92 DVB IWG, .49 DVB IWG, .82 Stainless Steel Dual V Band
- Housing Style: Standard Housing, Stainless Steel Wrapped Housing
Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.
Ordering & Fitment
This listing is for Pulsar 6255G 900HP 62mm Dual Ball Bearing Turbo. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.
Built by Boost & Tune Support
Built by Boost & Tune can assist with fitment, fabrication, installation and dyno calibration where required.
Supplier
Pulsar Turbos Australia
Product System
- Turbo & Forced Induction
Application
Universal turbocharger for a custom installation. Confirm turbine inlet and outlet flanges, compressor dimensions and orientation, manifold and engine-bay clearance, oil and water connections, wastegate control, intake and exhaust fabrication, and supporting fuel and engine management before ordering.
