- Compressor Wheel: 68*84mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2.5” Hose
- Turbine Inlet: T3/T4/V-BAND
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3

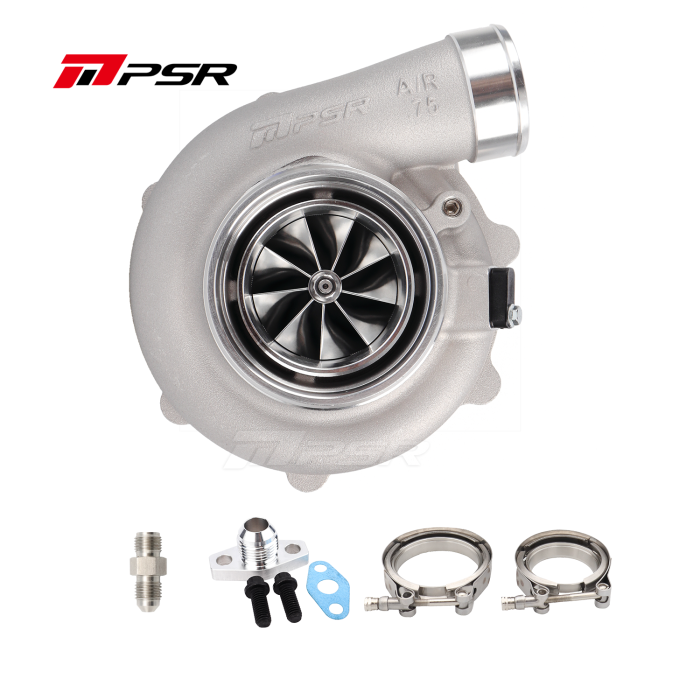

- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp

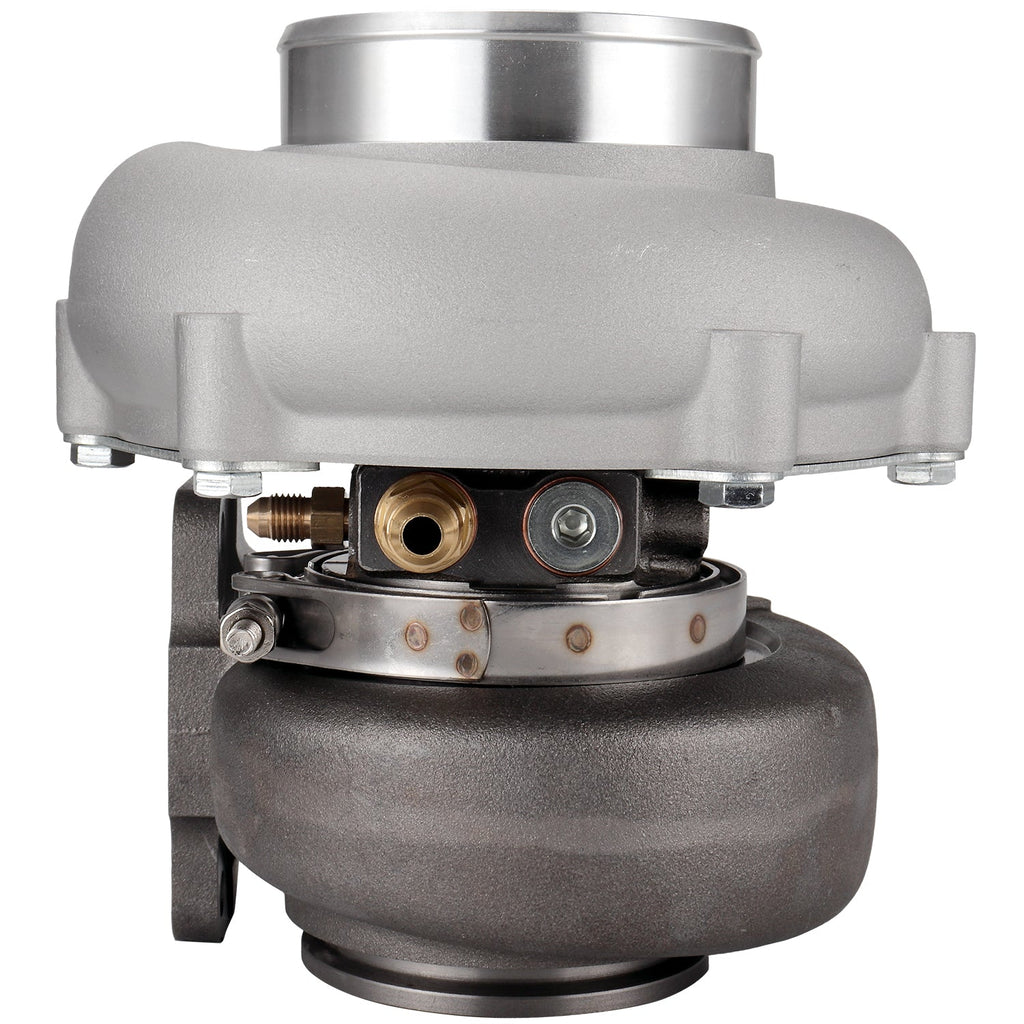

Pulsar 6862G 1050HP 68mm Dual Ball Bearing Turbo
Without Turbine Housing / Without Compressor Housing / Standard Housing
$999.00
Skip to product information

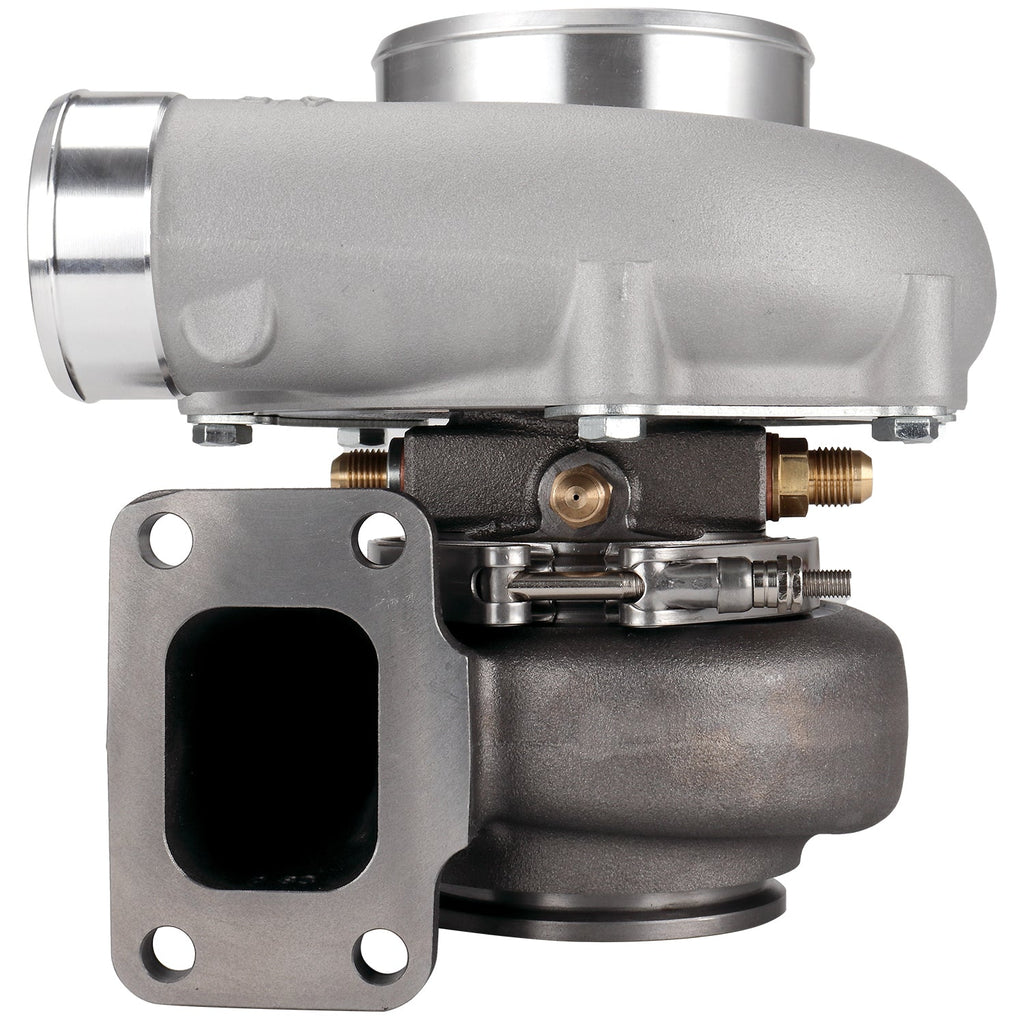

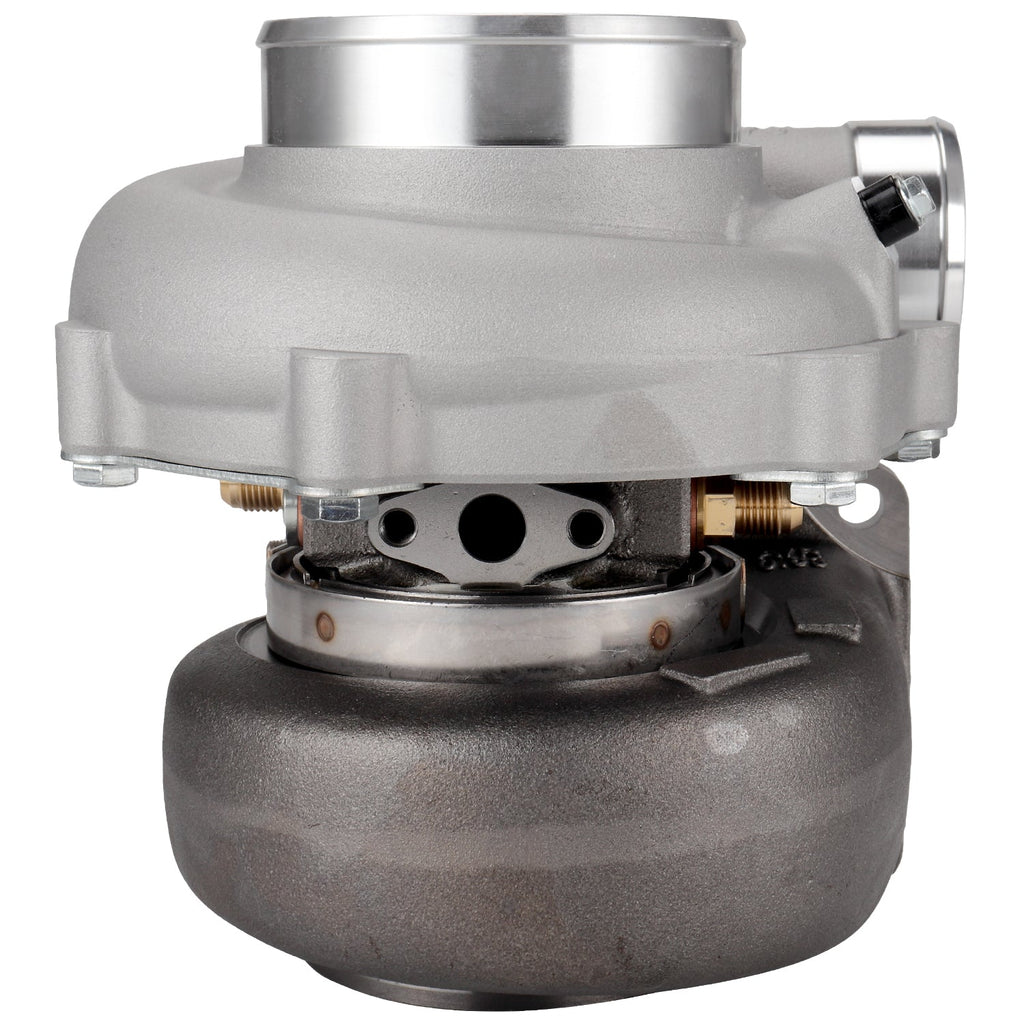

Pulsar 6862G 1050HP 68mm Dual Ball Bearing Turbo
$999.00
- Dual ceramic ball bearing system provides optimal turbo response &

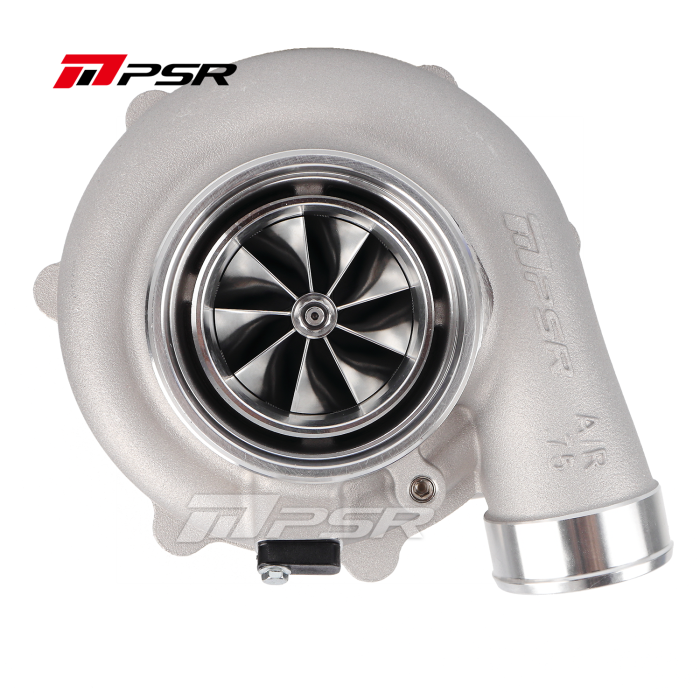

better durability by reducing the shaft-motion - 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology

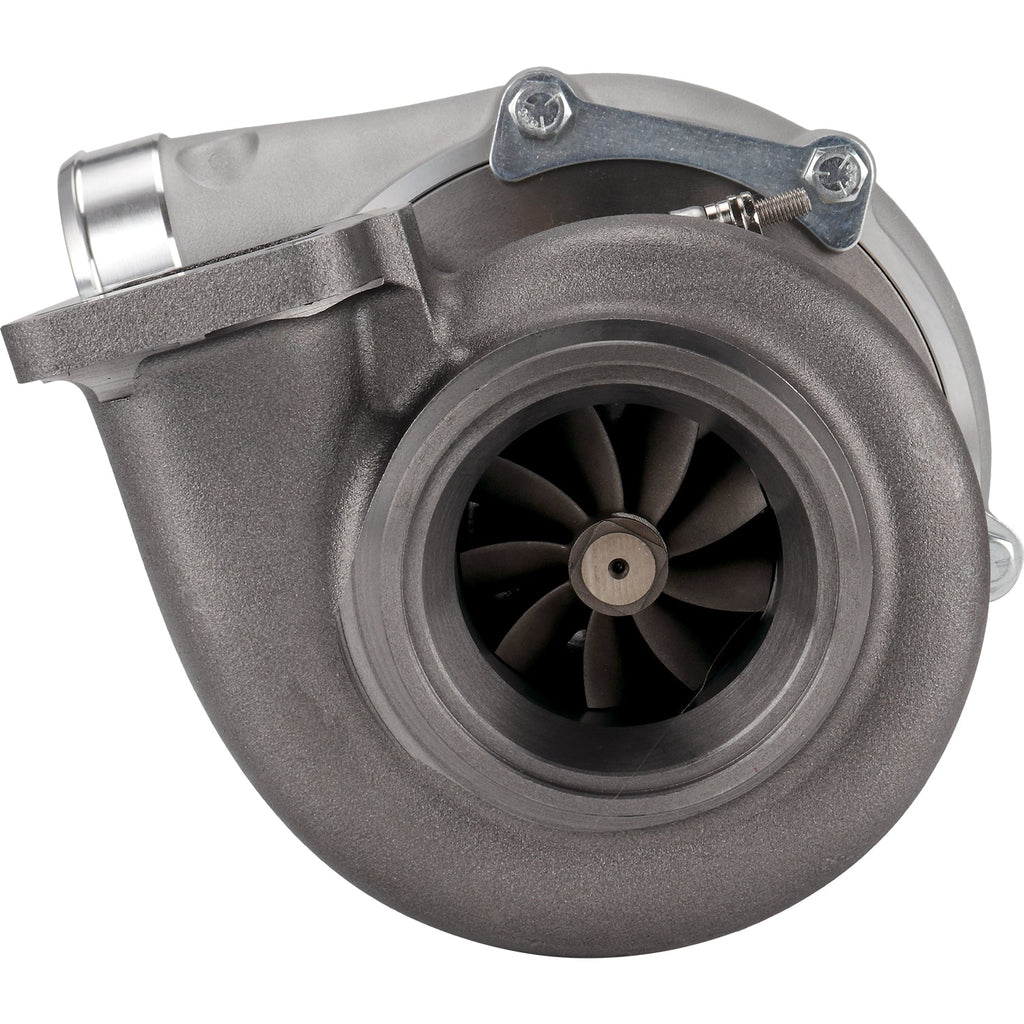

- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Stainless steel wrapped housing option

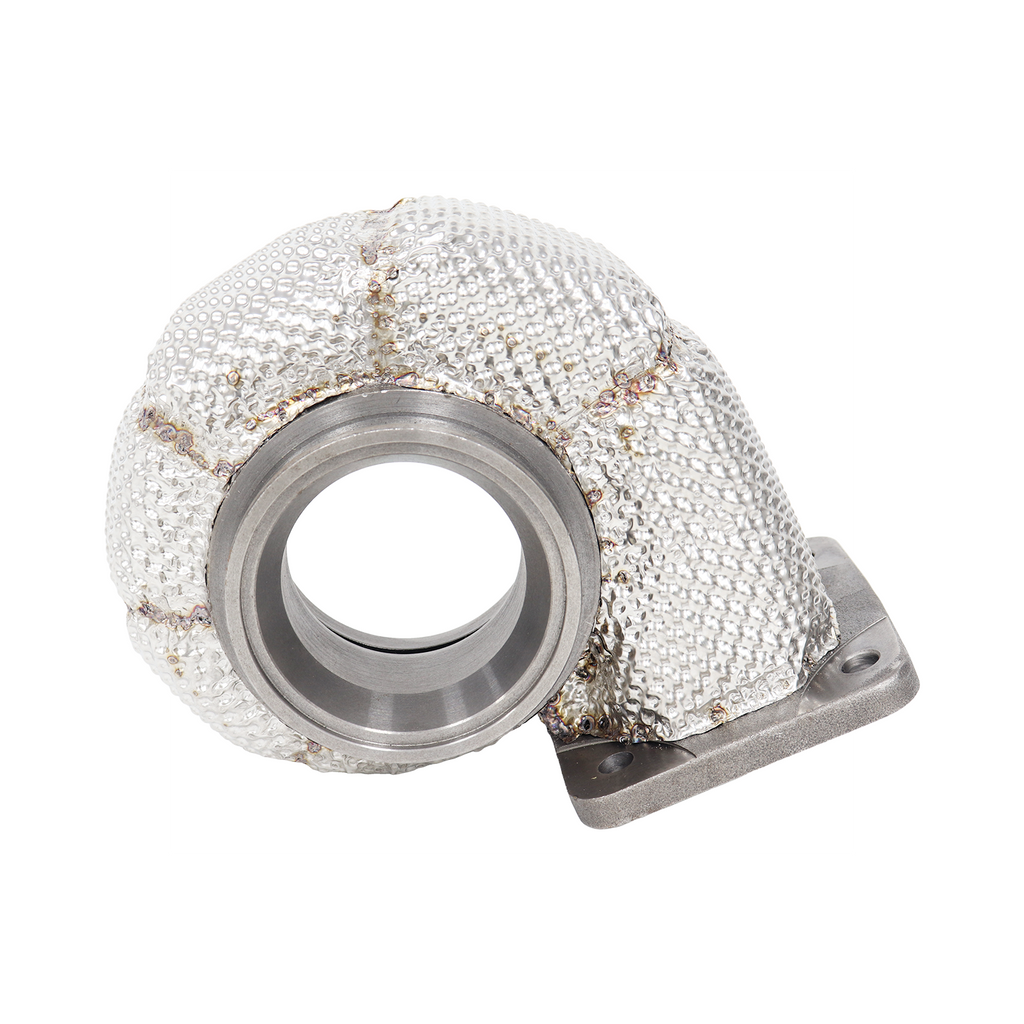

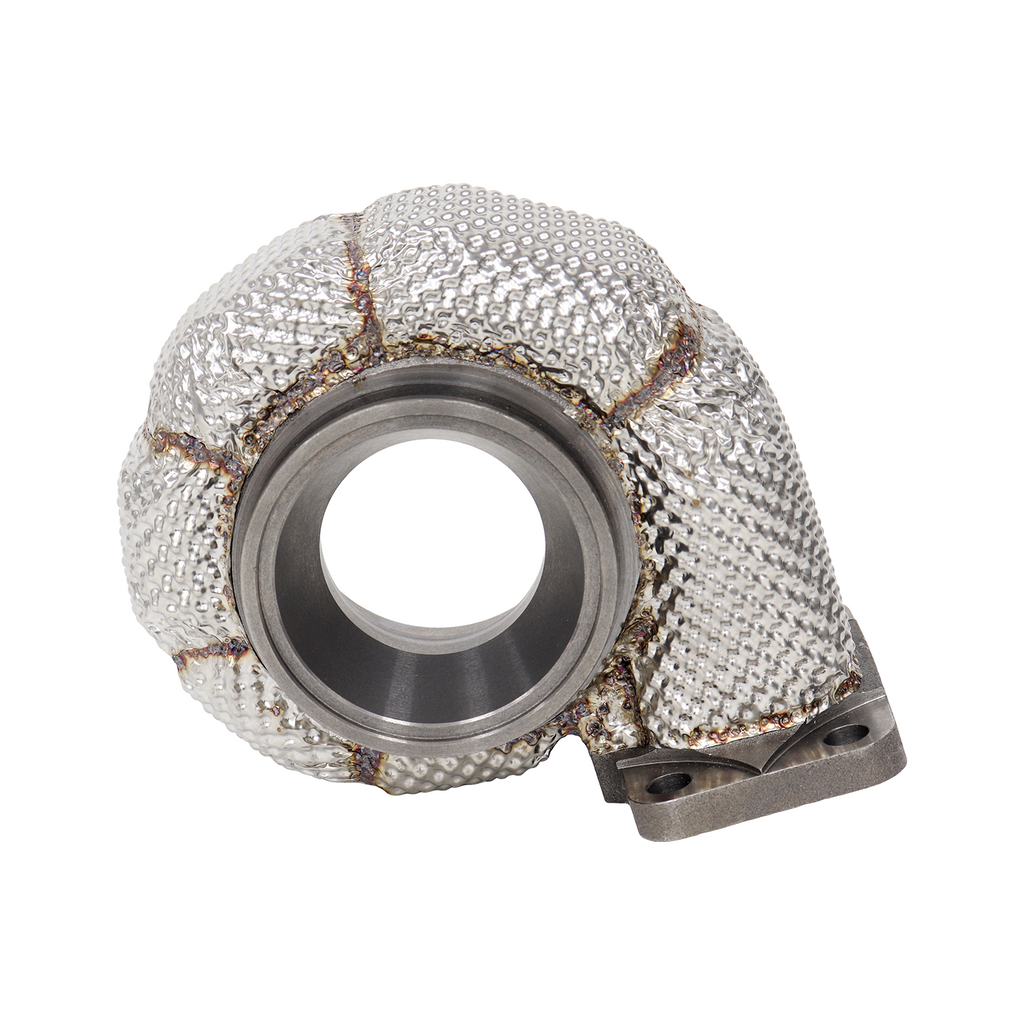

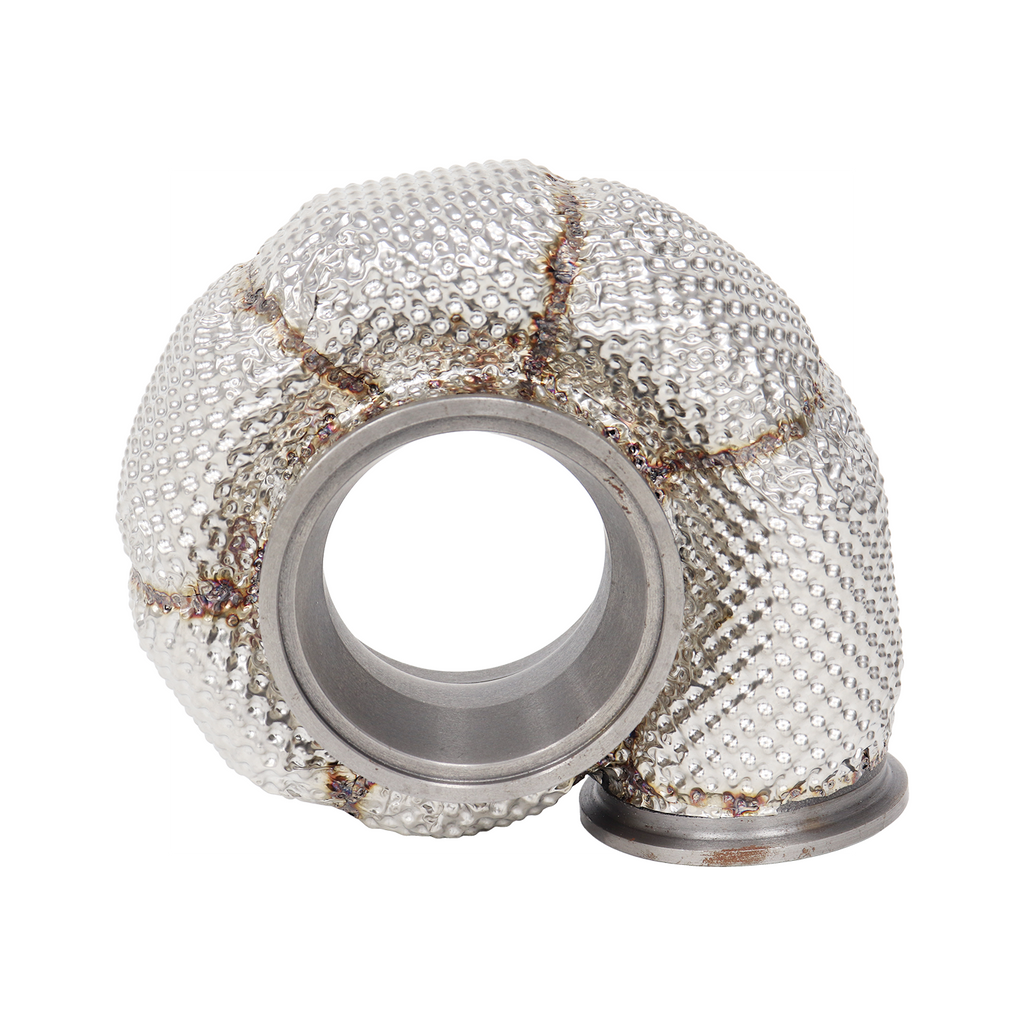

Where the stainless steel wrapped style is selected with a turbine housing, Pulsar adds an external stainless heat-retaining wrap around that housing to help contain radiant heat near the turbine. Standard Housing and Stainless Steel Wrapped Housing are separate selectable styles; the wrapped style costs extra.
Pulsar advises allowing 1–2 weeks for a wrapped housing when it is not in stock. BBT can confirm current availability and dispatch timing for the chosen configuration.
If the turbo is selected without a turbine housing, there is no turbine housing to wrap. Choose an eligible turbine housing together with the wrapped style when a wrapped unit is required.
A stainless steel turbine housing, where offered in the Turbine Housing menu, describes the housing material. The stainless steel wrapped style describes an additional external covering. Check both selections against the configuration you intend to buy.
BBT can help match the selected turbine A/R, flange pattern, wastegate arrangement and wrapped-housing clearance to your manifold, exhaust and turbo setup. Send BBT your vehicle and turbo details for a configuration check.
Current selectable options
- Turbine Housing Options: Without Turbine Housing, T3 Inlet V-Band Outlet 0.83 A/R, T4 Inlet V-Band Outlet 0.82 A/R, .83 Dual V Band, 1.01 Dual V Band, .85 Divided T4, .82 Dual V Band Stainless Steel, T4 Open .63 Stainless Steel, T4 Divided 1.06 A/R
- Compressor Housing Options: Without Compressor Housing, T51R, Standard
- Housing Style: Standard Housing, Stainless Steel Wrapped Housing
