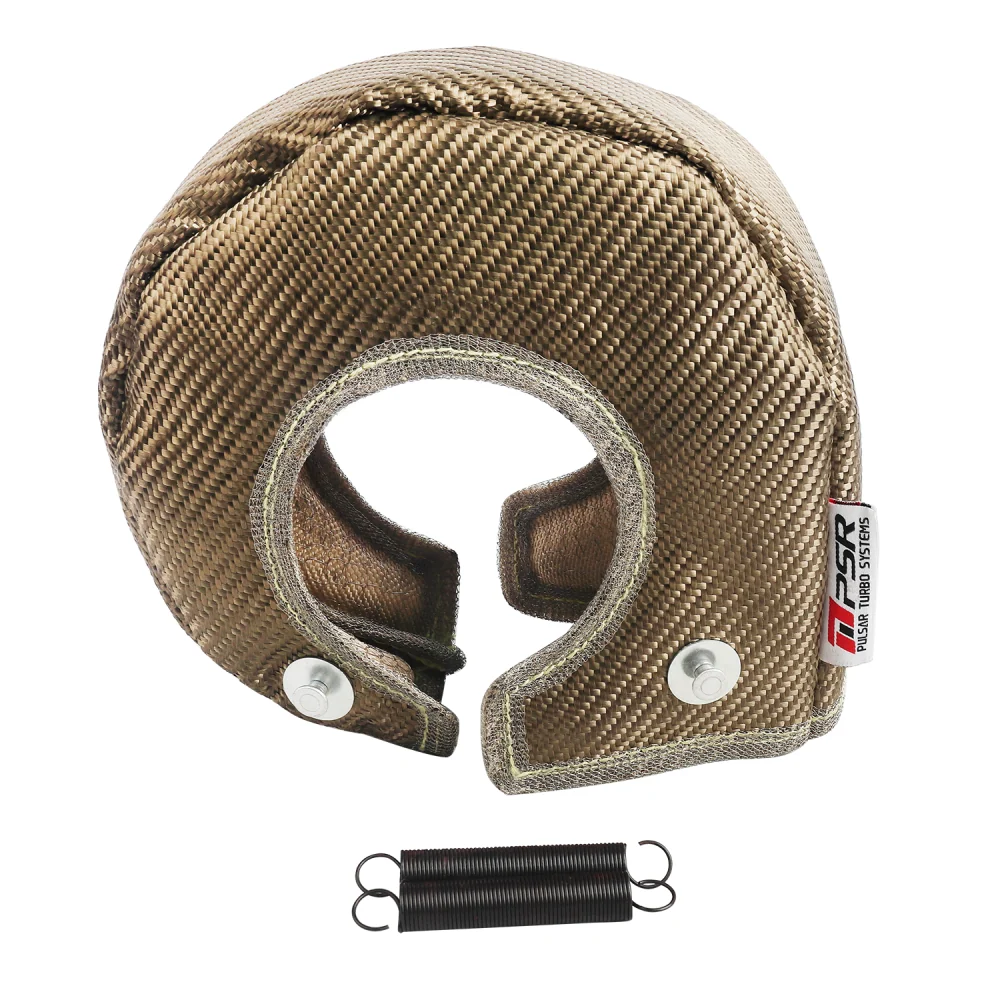

Pulsar Gen2 Turbo Blanket for PTG / PTX / PTE Series Turbos

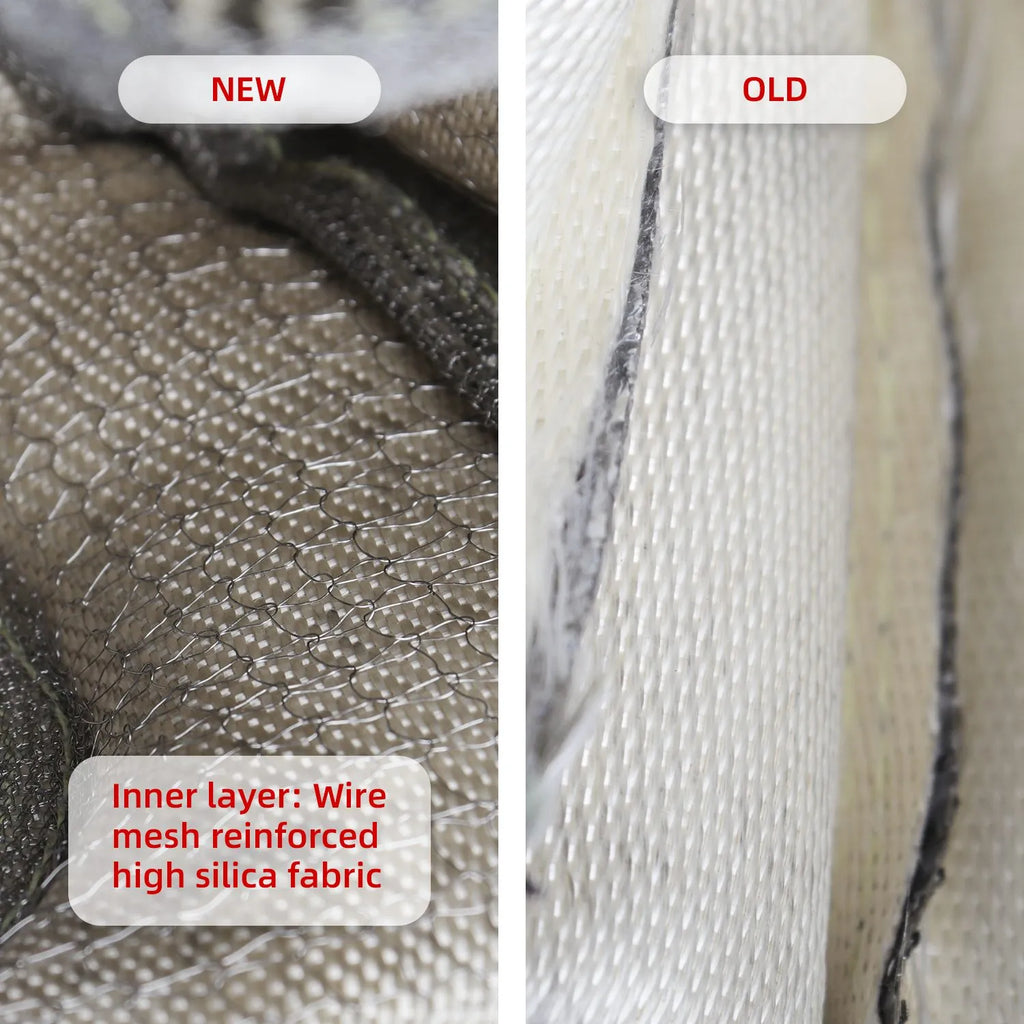

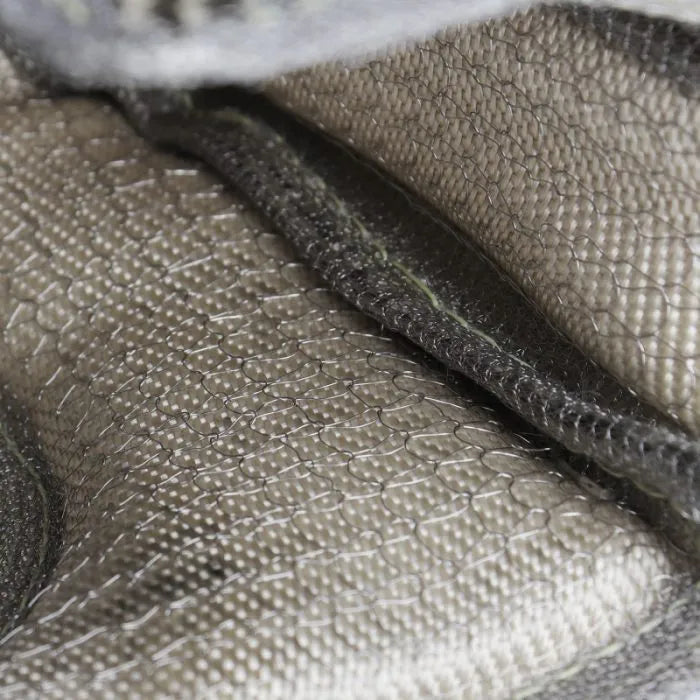

Inner layer: Wire-mesh-reinforced, high-silica fabric, making it heat-resistant up to 1000°C and providing superior mechanical reinforcement

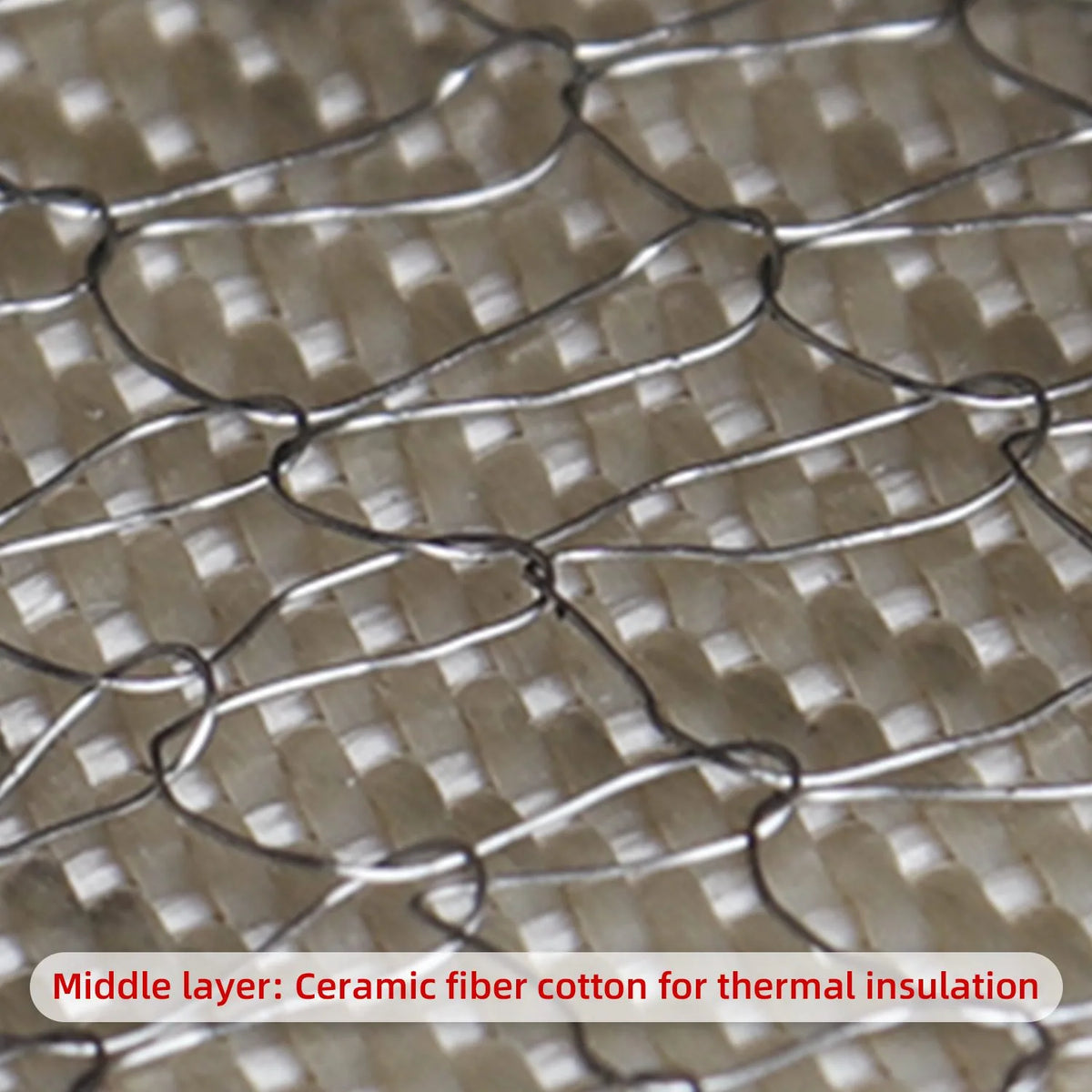

Middle insulation layer: Ceramic fibre cotton, with excellent high-temperature thermal insulation performance and low thermal conductivity, temperature resistance up to 1260℃

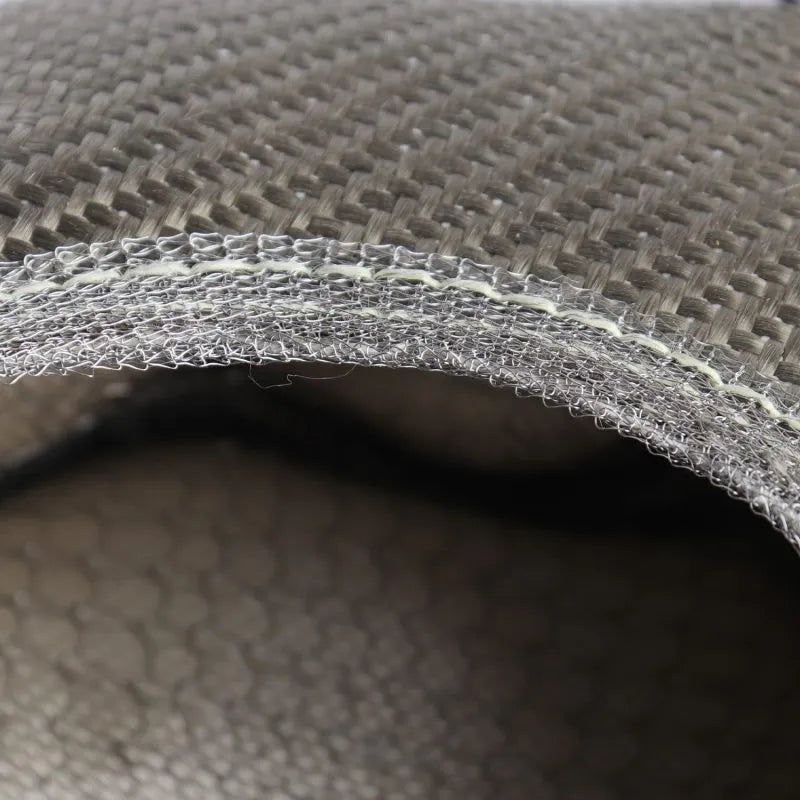

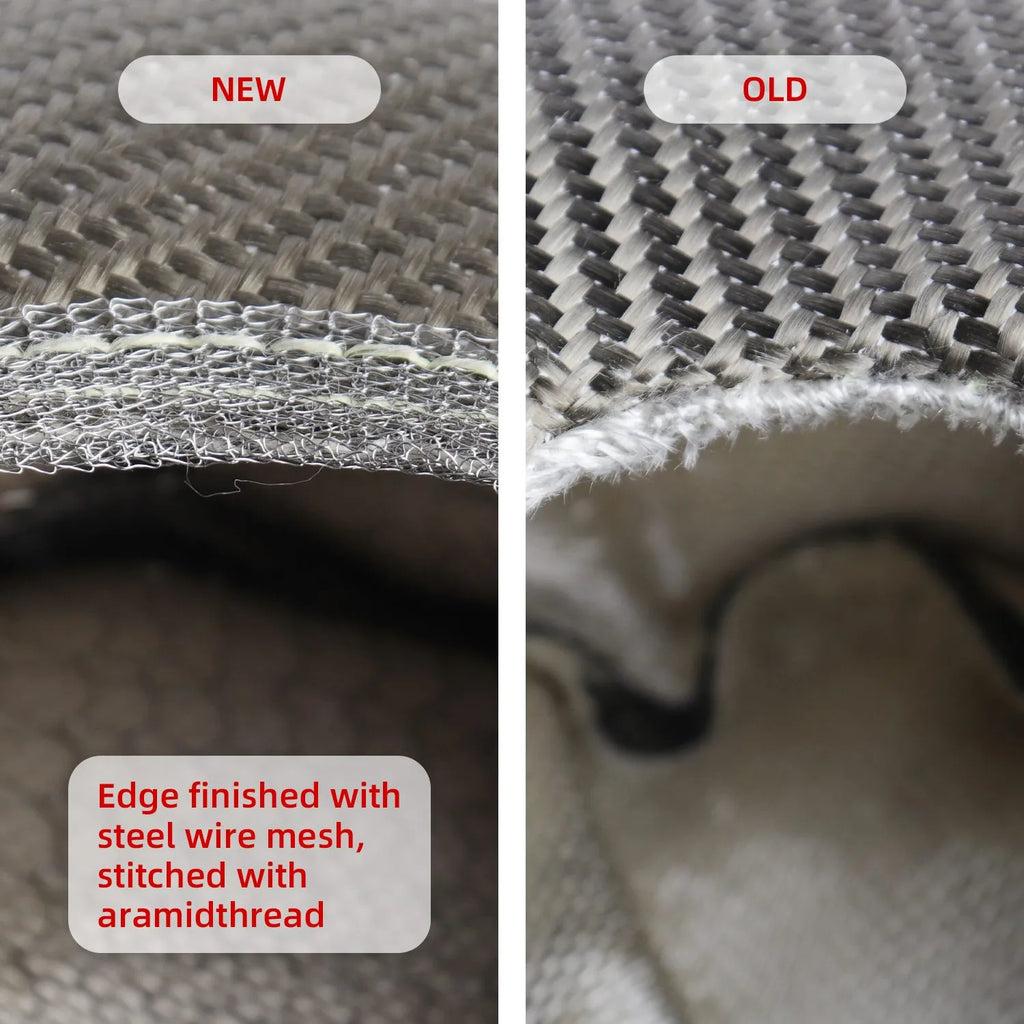

Steel wire mesh edging treatment: effectively prevents edge cracking caused by vibration and friction
Wire-mesh-reinforced aramid sewing thread: heat-resistant up to 800°C

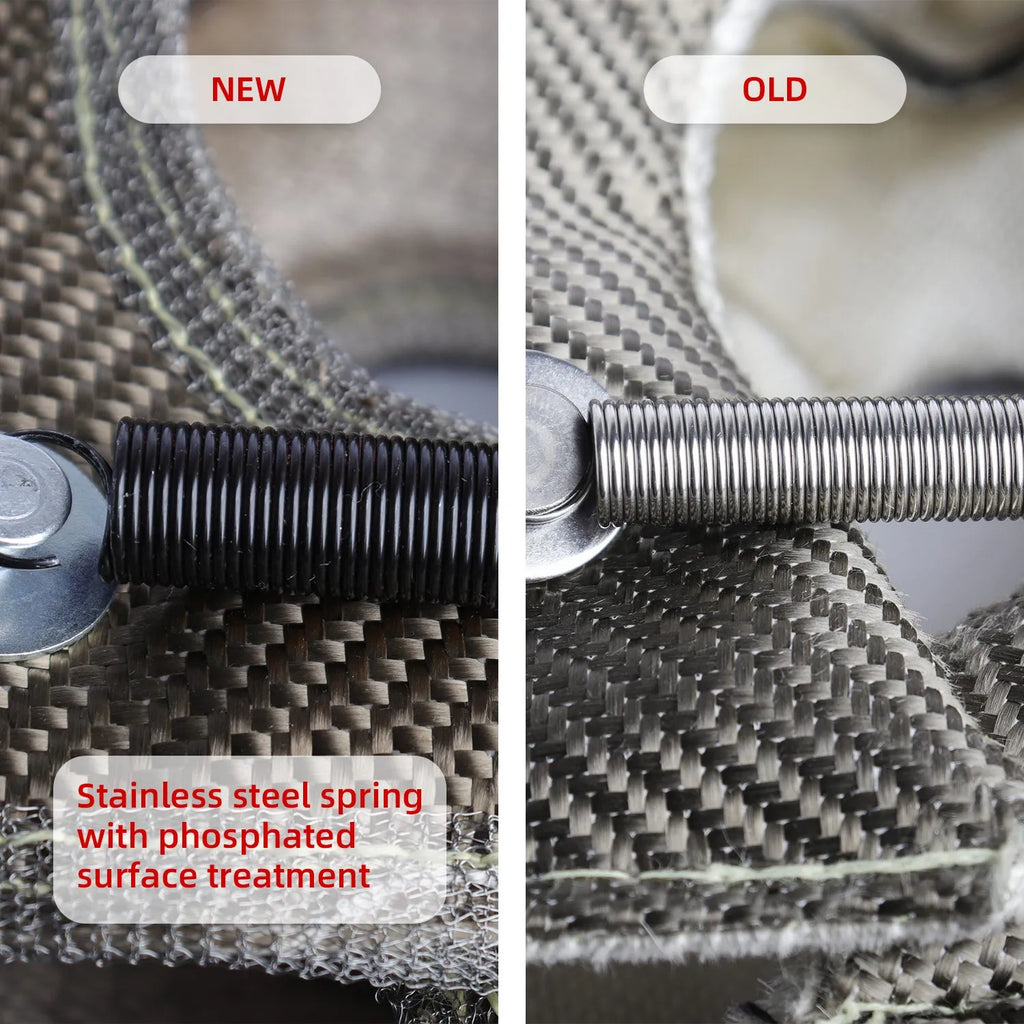

Spring: Stainless steel with phosphating surface treatment, excellent anti-fatigue property, durable for long-term use

Application:

PTG EWG Housing: 49G V-band Inlet/T3 Inlet, 55G V-band Inlet/T3 Inlet/T4 Inlet/T4 Divided Inlet, 62G V-band /T3 Inlet/T4 Inlet/T3 Divided Inlet/ T4 Divided Inlet;

PSR EWG Housing: PSR28 V-band Inlet, PSR30 V-band Inlet/T3 Inlet/T4 Divided Inlet, PSR35 V-band Inlet/T3 Inlet/T4 Inlet/T3 Divided Inlet/T4 Divided Inlet;

PTE EWG Housing: 62E/66E/70E/75E V-band Inlet 0.82A/R/T3 Inlet/T4 Inlet/T3 Divided Inlet/T4 Divided Inlet

Supplier Part Number

'414335210

Select compatible hardware

Match the selected size or configuration to the turbocharger, wastegate or pipework it will connect to. Check mating flanges, diameter and installation clearance before ordering.

Current selectable options

• Turbo Model: PSR28/PSR30PSR35 EWG Housing V Band Inlet T3 Inlet T4 Inlet (NOT XR6), 49G/55G/62G EWG Housing V Band Inlet T3 Inlet T4 Inlet, 62E/66E/70E/ EWG Housing V Band inlet 0.82A/R T3 Inlet T4 Inlet
