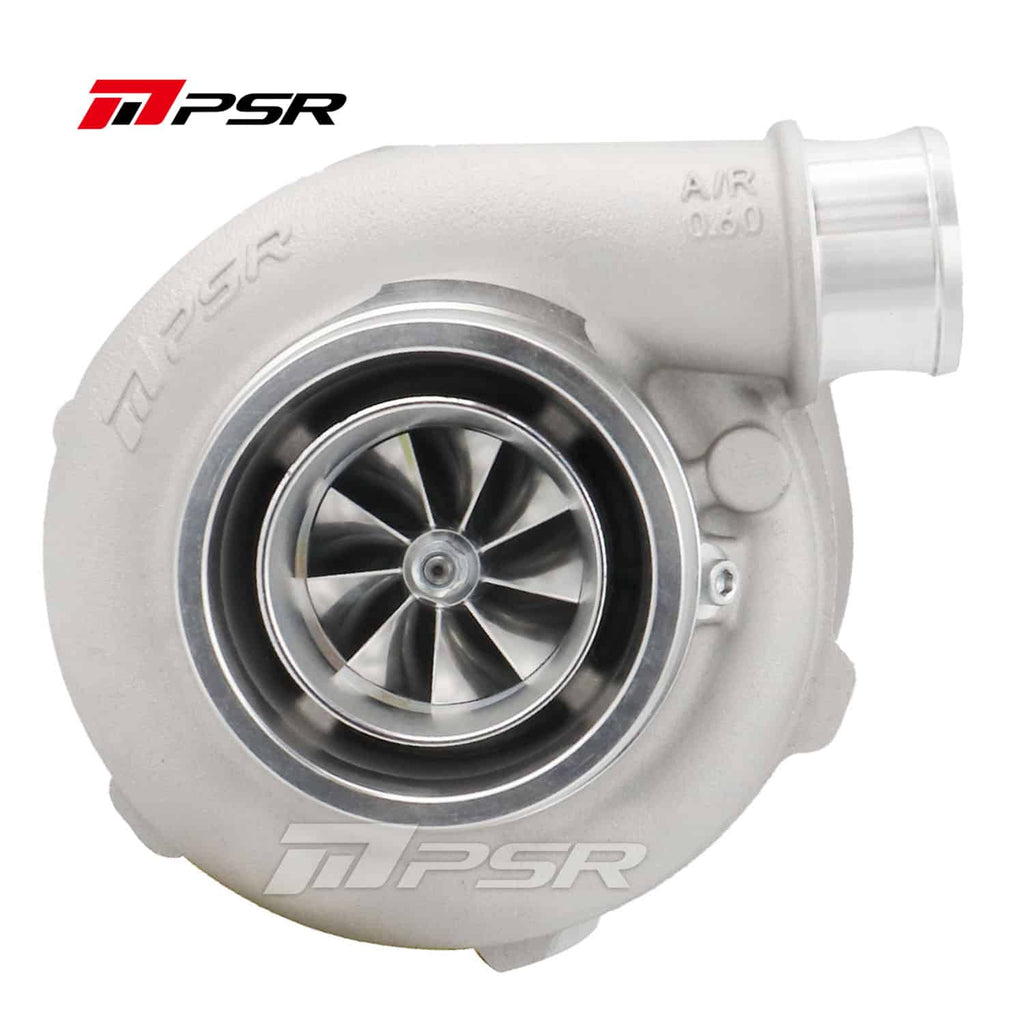

Pulsar PSR3071R GEN2 Turbocharger
Pulsar PSR3071R GEN2 Turbocharger
Pulsar PSR3071R GEN2 Turbocharger
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel

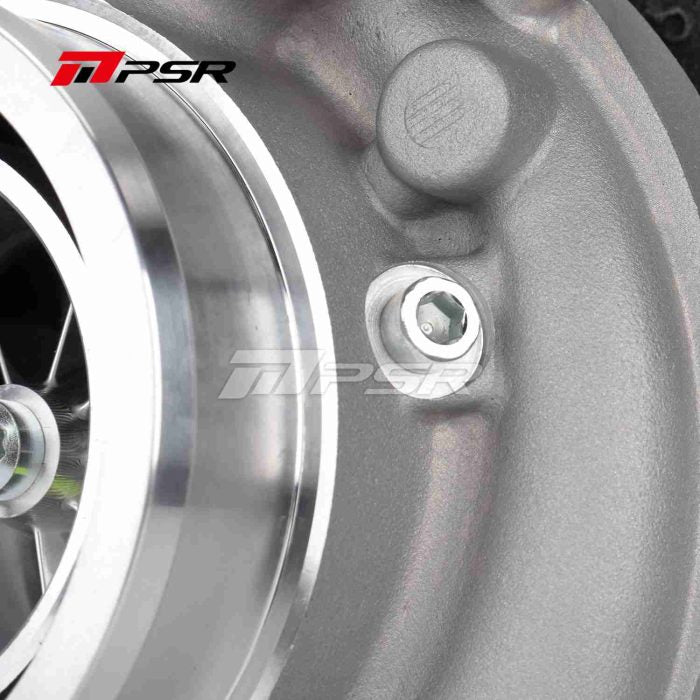

- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option

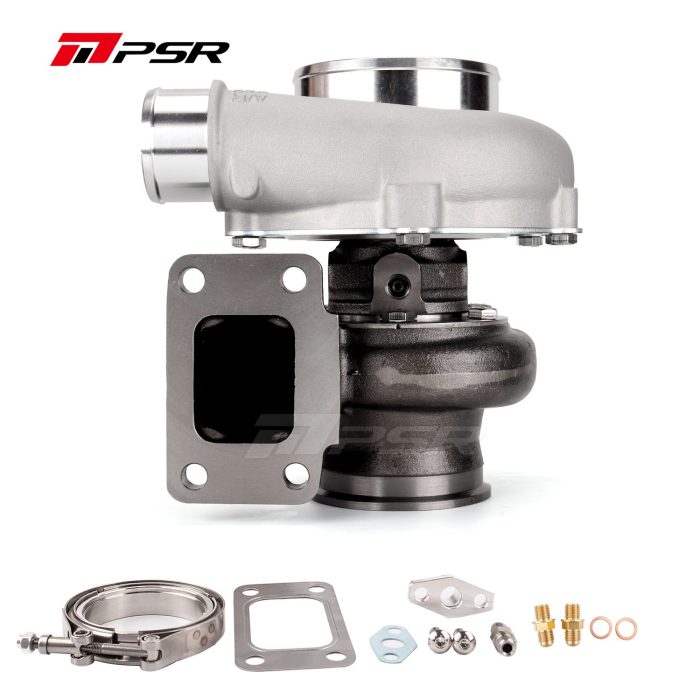

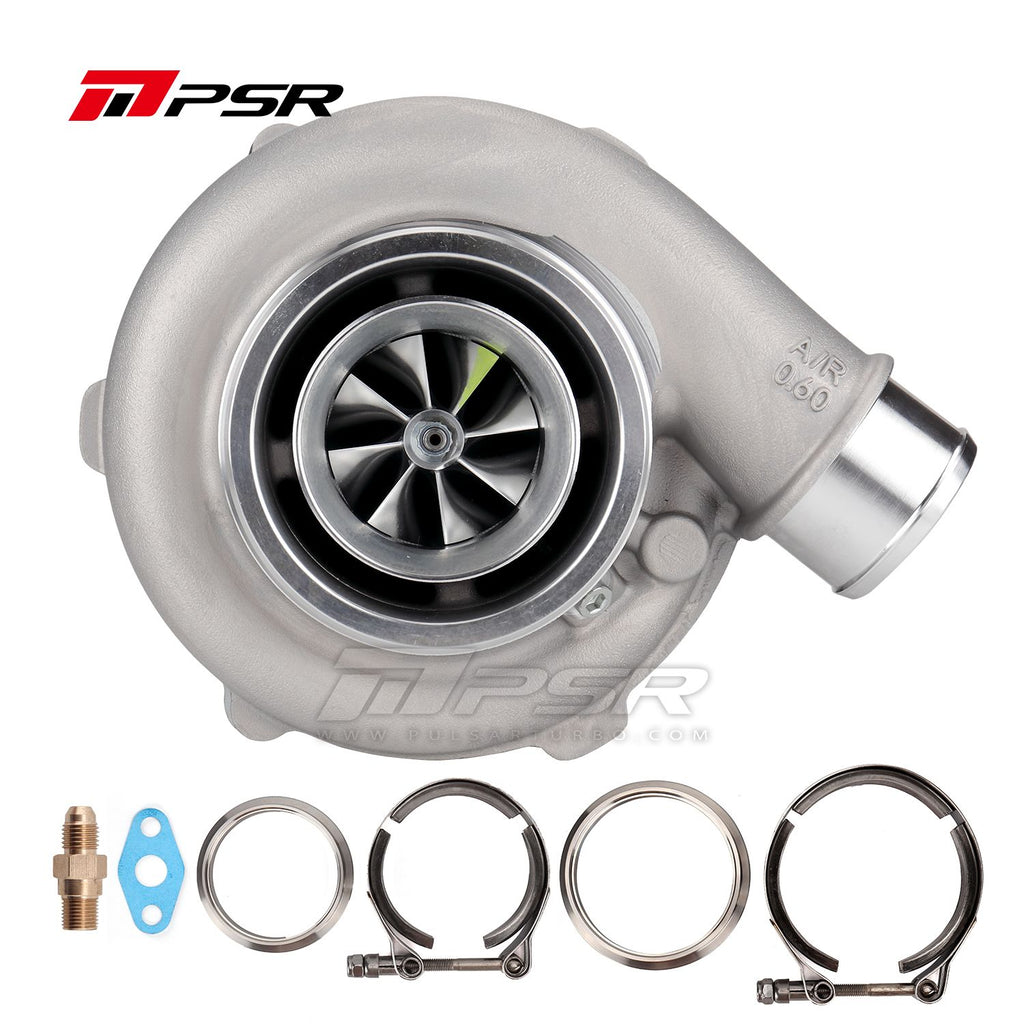

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP
- Compressor Wheel: 54*71mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
- IWG Version is 11.6 PSI
We highly recommended running water cooling for better durability.

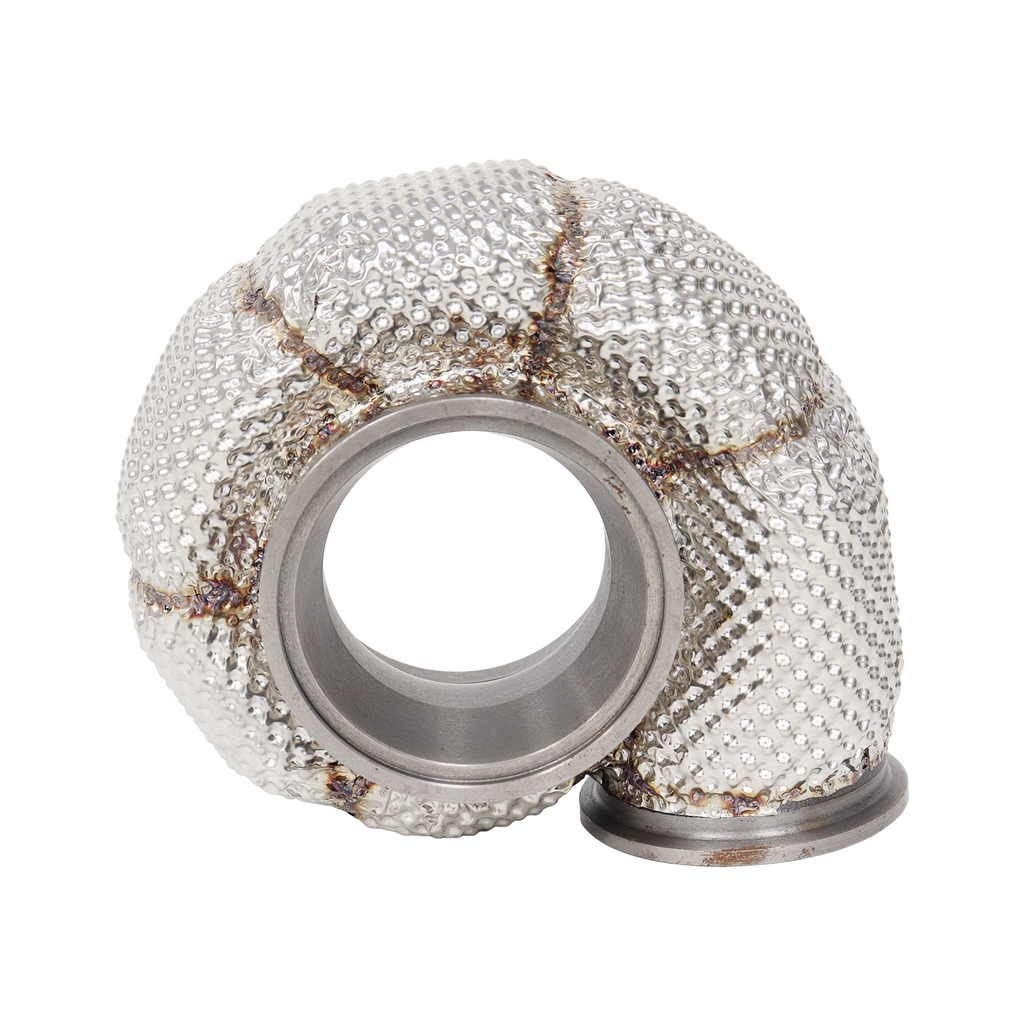

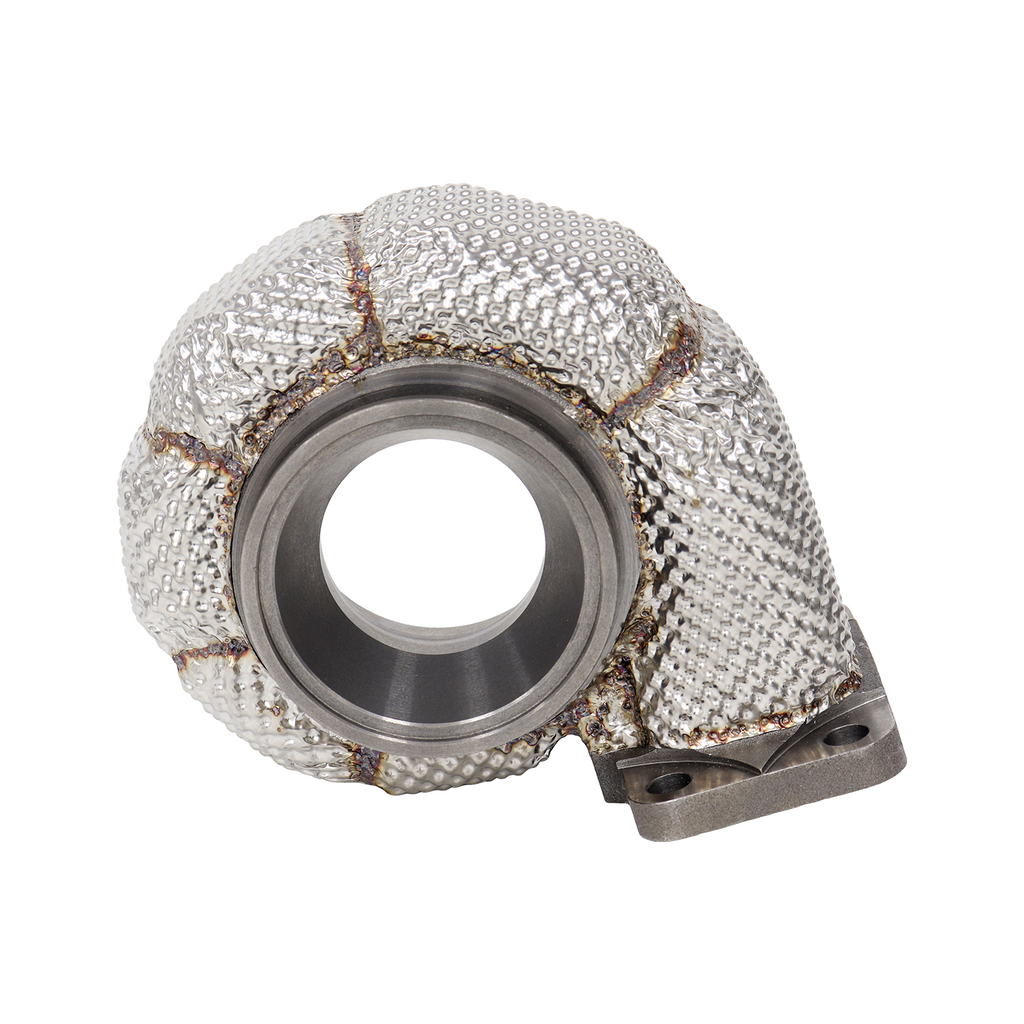

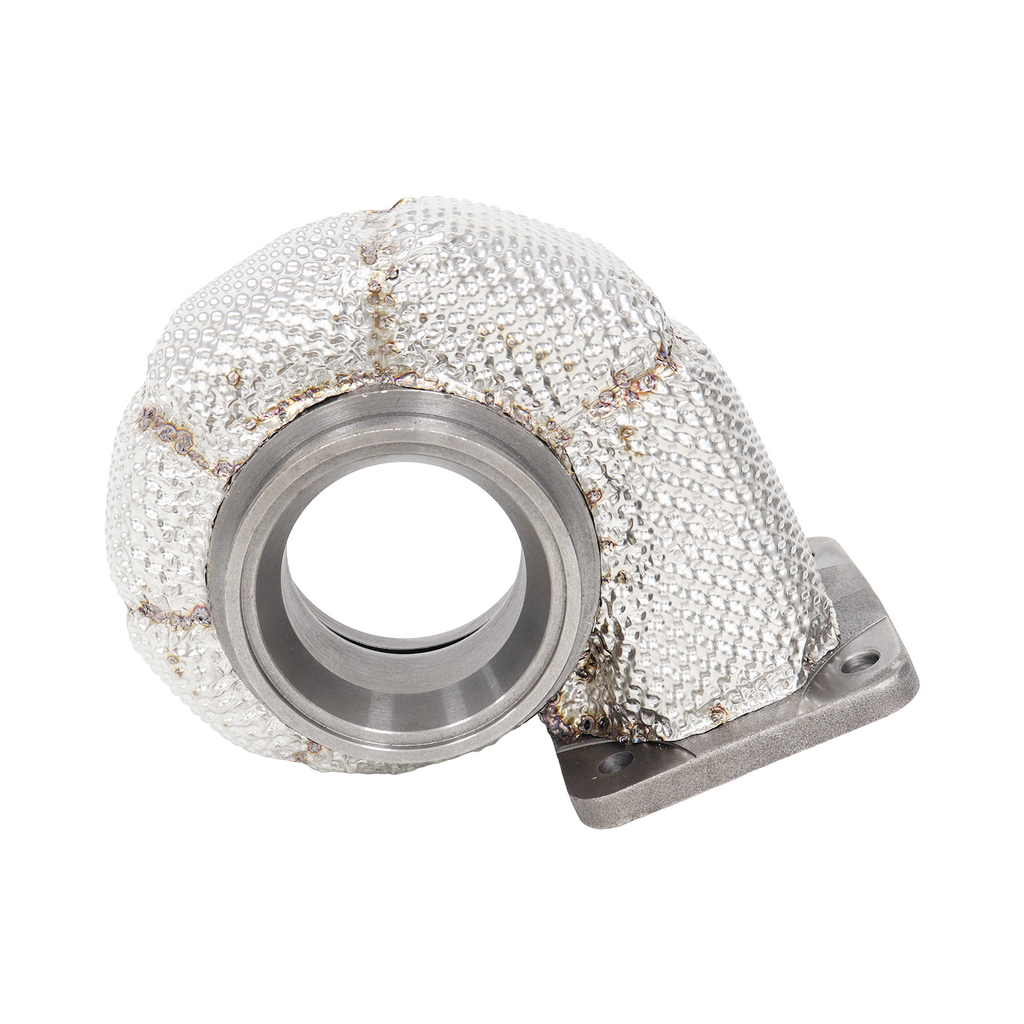

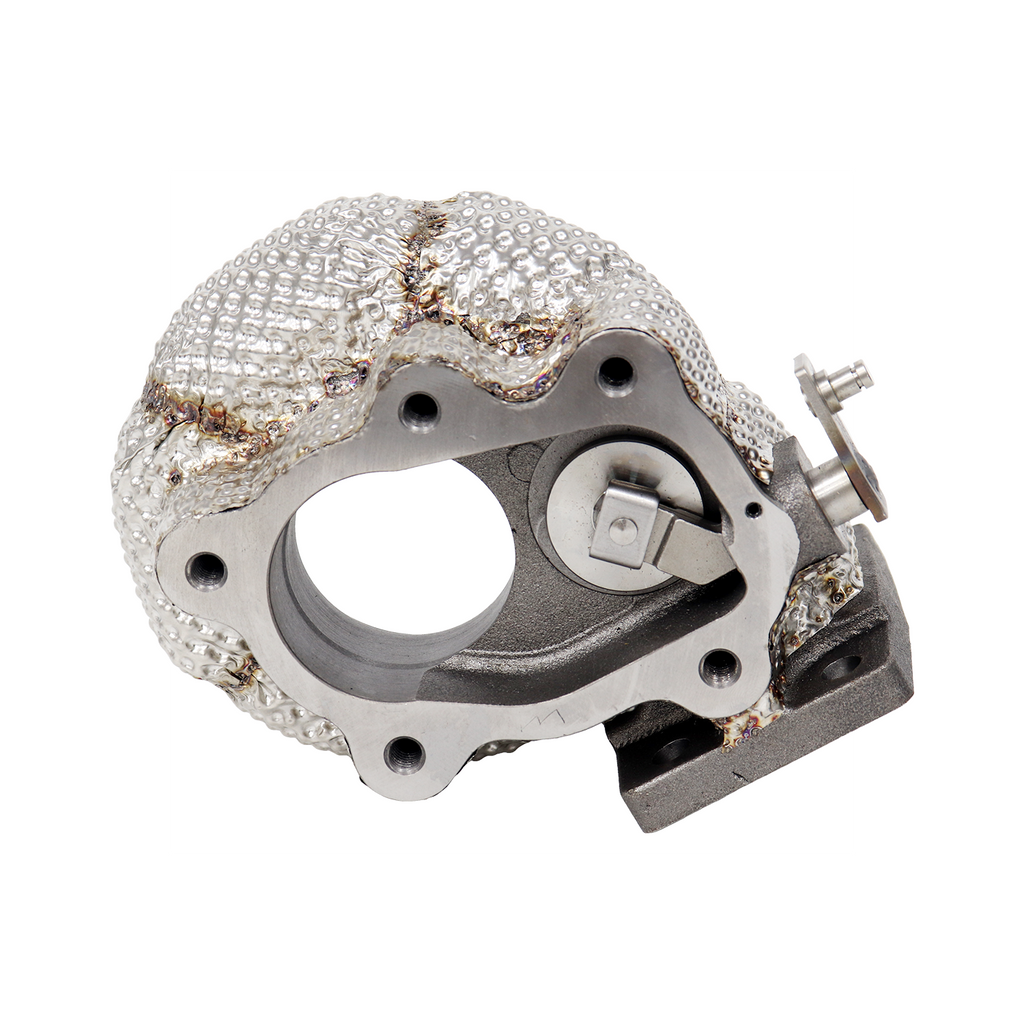

Stainless steel wrapped housing style
Pulsar offers Standard Housing and an extra-cost Stainless Steel Wrapped Housing style where applicable to the selected turbine housing. This external stainless covering is intended to help contain radiant heat at the turbine. The style selection applies to the housing chosen in the turbine housing menu.
Pulsar advises allowing 1–2 weeks for a wrapped housing if it is not available from stock. BBT can confirm availability and dispatch timing for the exact selected configuration.
Where the turbine housing menu separately lists stainless steel, that refers to the housing material. The wrapped style is an additional external covering; check both options before ordering.
BBT can help confirm compressor-cover and turbine-housing choices, flange compatibility, wastegate arrangement and clearance around the wrapped turbine for your build. Send us your turbo and application details for a configuration review.
