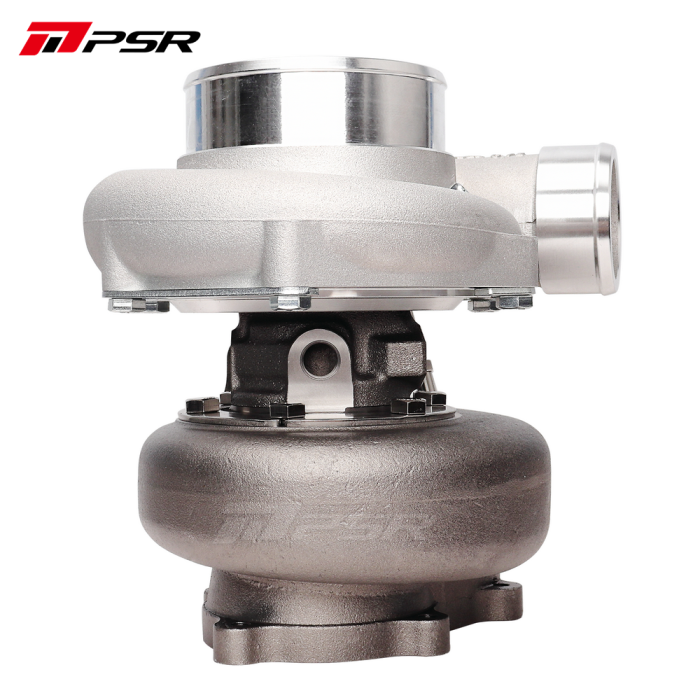

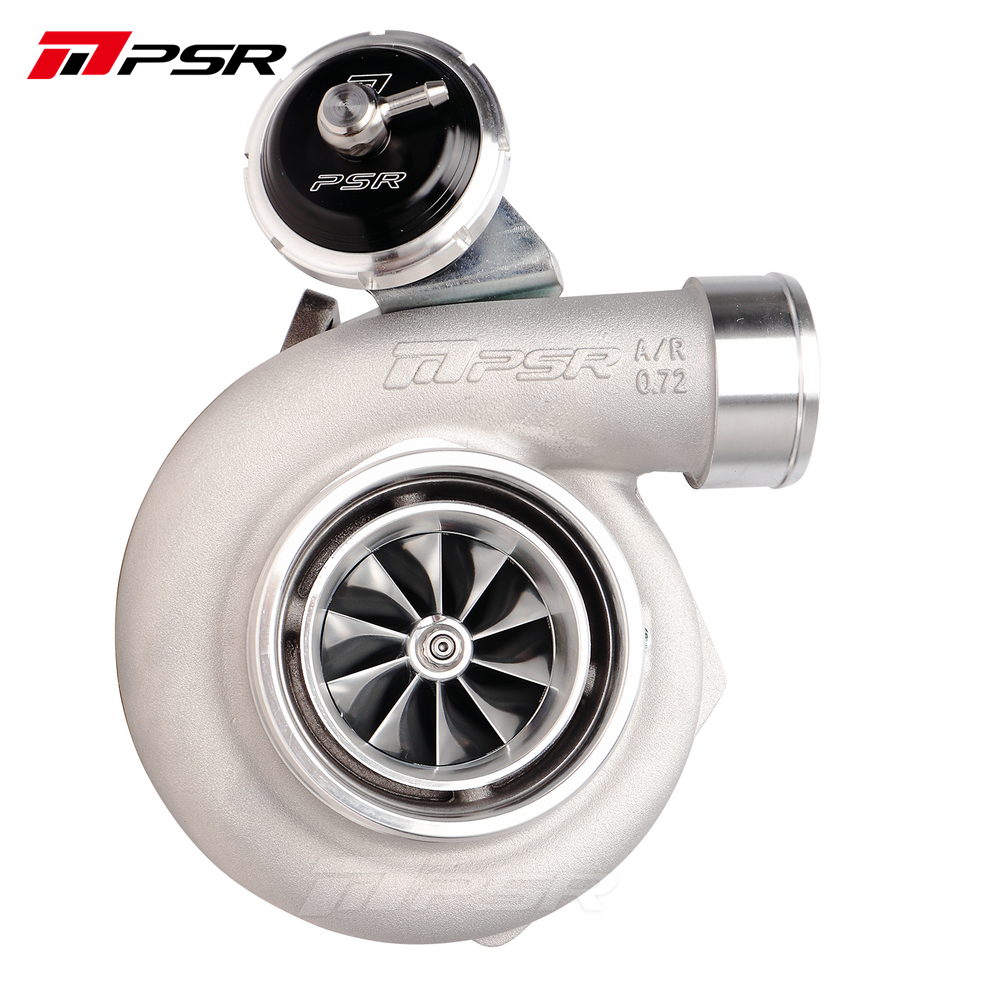

Pulsar Next GEN PSR3582 XR6 Turbo
Standard / No
$1,019.00
Skip to product information
Pulsar Next GEN PSR3582 XR6 Turbo
$1,019.00
- New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
- New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
- Genuine structure and rebuildable dual ceramic ball bearing system
- Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
- Billet actuator with black anodized coating
- 3 Layer Stainless Steel 5 Bolt Gasket
- Compressor Wheel: 65.7*82.6mm(extended tip diameter: 85.29mm)
- Turbine Wheel: 68*62.3mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ Hose
- Turbine Inlet: T3 Open
- Turbine Outlet: 5 Bolt
- Turbine housing internal wastegate hole: 33mm
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange
- Actuator working pressure: 15psi
- Add additional 6.5PSI spring, Please note this is not fitted.
XR6 turbo configuration
Select the offered housing, compressor cover and any optional wastegate spring shown in the menus. Confirm your existing manifold, five-bolt outlet and actuator arrangement against the chosen variant before ordering.
Current selectable options
- Compressor Housing Options: Standard, T51R MOD
- Add Extra 6.5PSI Internal Wastegate Spring: No, Yes
