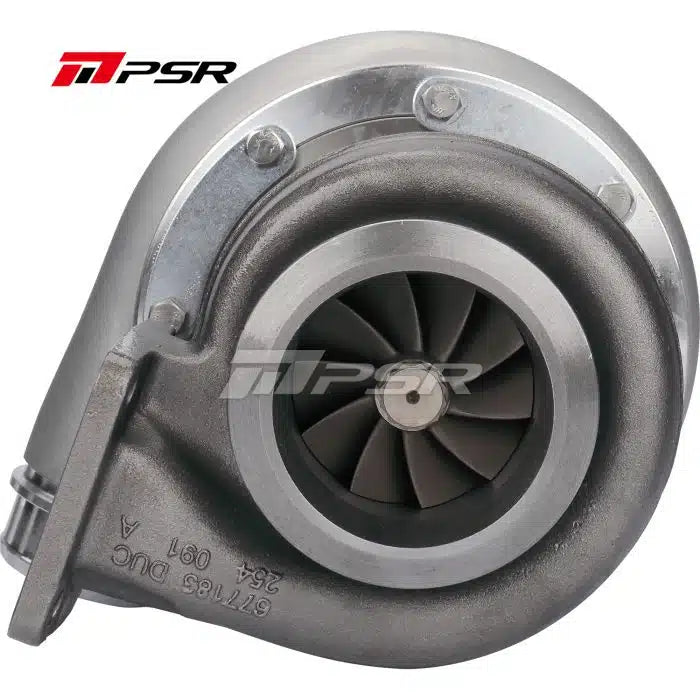

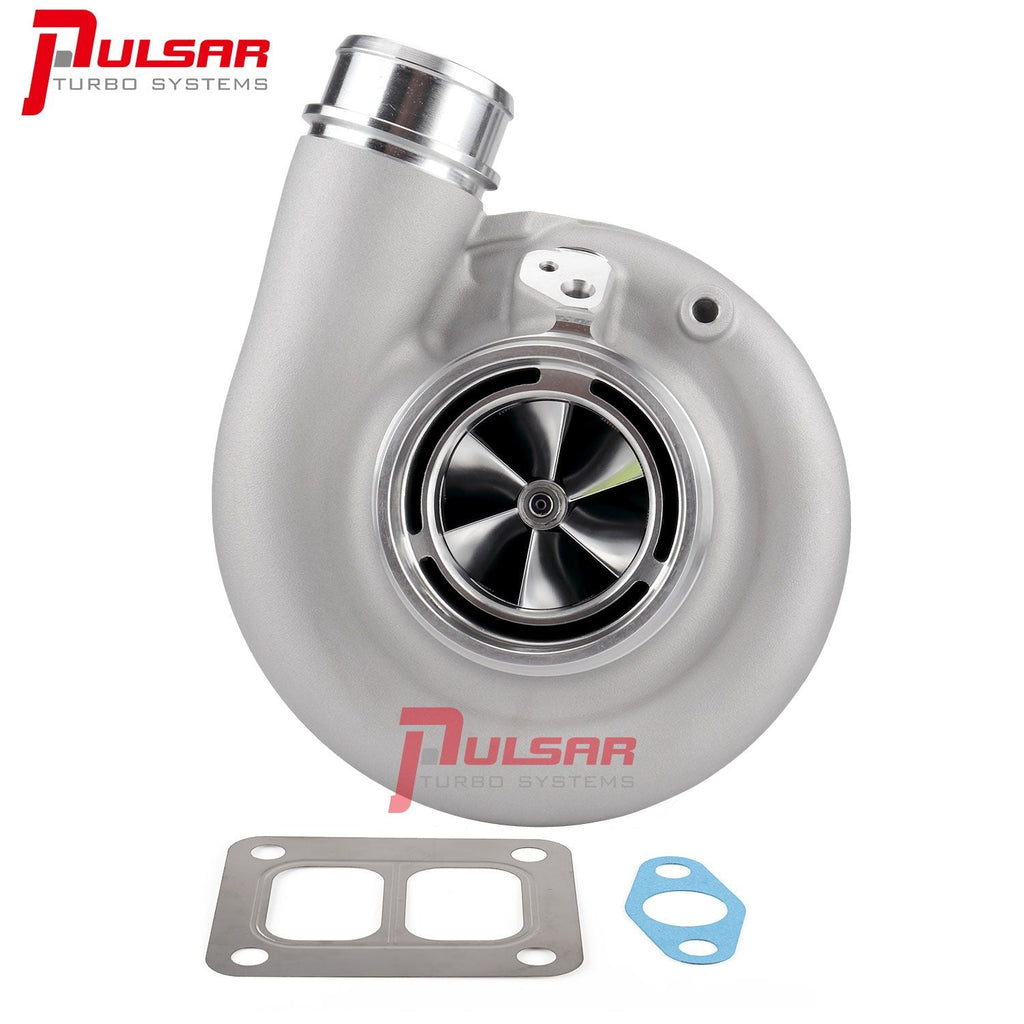

Pulsar NEXT GEN Billet S369 69/80 DUAL CERAMIC BALL BEARING Turbo
0.91 T4 Divided / Standard / No
$1,125.00
Skip to product information
Pulsar NEXT GEN Billet S369 69/80 DUAL CERAMIC BALL BEARING Turbo
$1,125.00
- Dual Ceramic Ball Bearing Systems
- 6+6 Blade 69*91mm Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 80*73mm Turbine Wheel
- G2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
- Max Flow Rate: 100+ lb/min, rated @ 950FWHP
Description
- Bearing Systems:? Dual Ceramic Ball Bearing
- Compressor Wheel: 69*94mm
- Turbine Wheel: 80*73mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T4 Divided
- Turbine Outlet: 4.21″ Marmon
- Oil Feed: 1/4″ NPT
- Oil Drain: Std T4 Flange
- Outlet Flange and Clamp not included
Choosing the turbo configuration
This turbocharger is offered for a custom application. Check the selected compressor and turbine housing, inlet and outlet flanges, manifold clearance, oil and water connections and supporting intake and exhaust work for your build.
Current selectable options
- Turbine Housing: 0.91 T4 Divided
- Compressor Housing: Standard, T51R Mod
- Add 3" Turbine Housing Outlet Flange and Clamp: No, Yes
