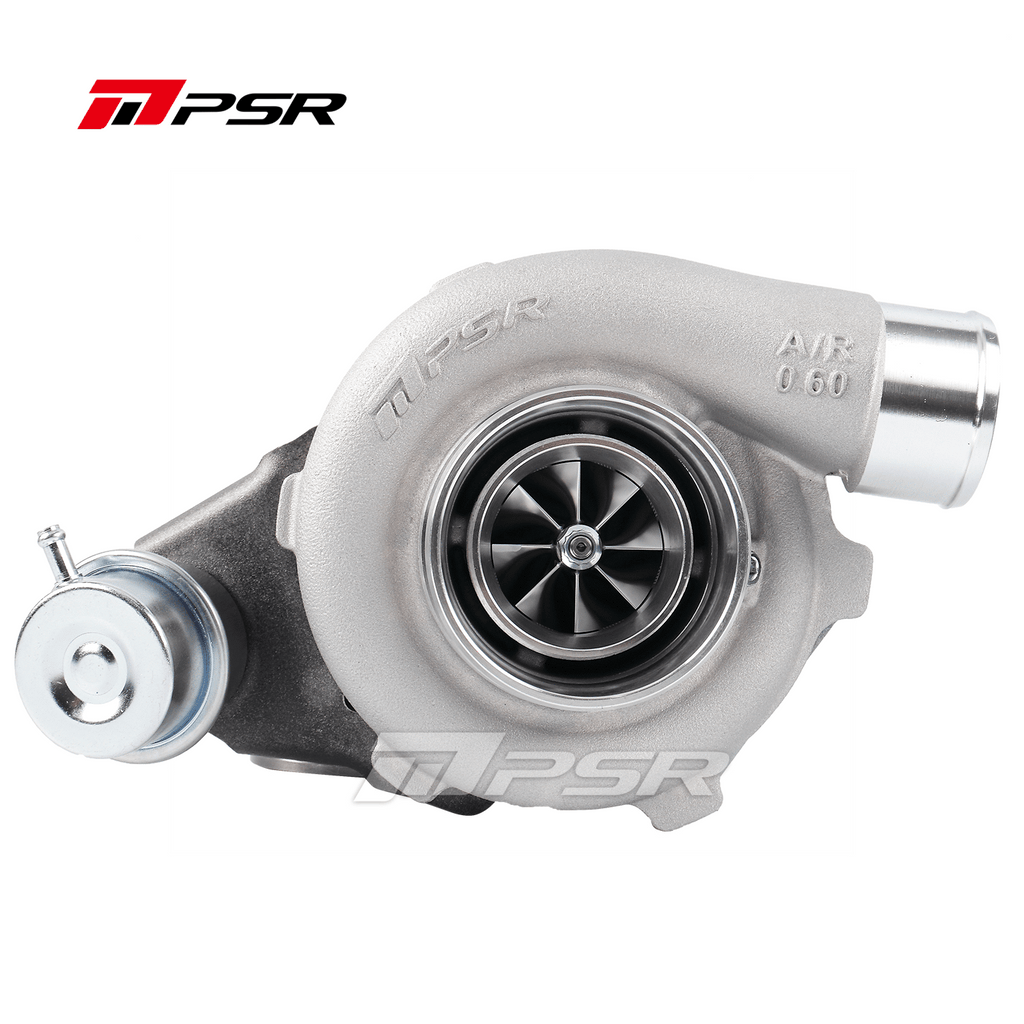

Pulsar PSR2860R GEN 2 Turbocharger
Pulsar PSR2860R GEN 2 Turbocharger
Pulsar PSR2860R GEN 2 Turbocharger
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9-blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.64 A/R dual V-BAND stainless steel, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~40 lb/min, rated @ 475 FWHP
-
- Compressor Wheel: 45.64/60.07/62mm
- Turbine Wheel: 54/47mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25 or 2.5″ V-Band
- Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Stainless steel wrapped housing style
Pulsar offers Standard Housing and an extra-cost Stainless Steel Wrapped Housing style where applicable to the selected turbine housing. This external stainless covering is intended to help contain radiant heat at the turbine. The style selection applies to the housing chosen in the turbine housing menu.
Pulsar advises allowing 1–2 weeks for a wrapped housing if it is not available from stock. BBT can confirm availability and dispatch timing for the exact selected configuration.
A turbo selected without a turbine housing has no housing to wrap. Choose an eligible turbine housing with the wrapped style if a wrapped housing is required.
BBT can help confirm compressor-cover and turbine-housing choices, flange compatibility, wastegate arrangement and clearance around the wrapped turbine for your build. Send us your turbo and application details for a configuration review.
