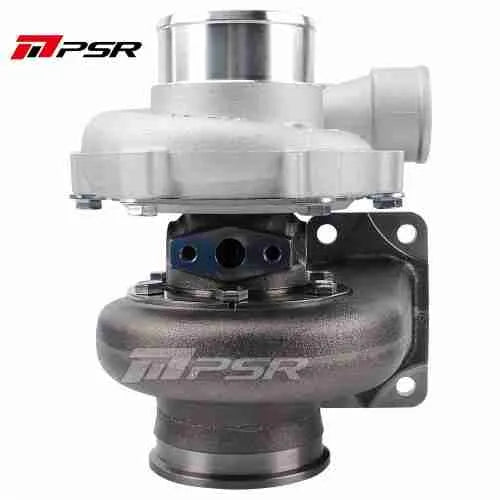

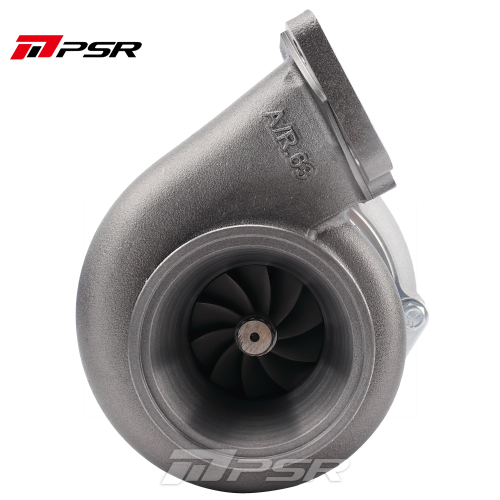

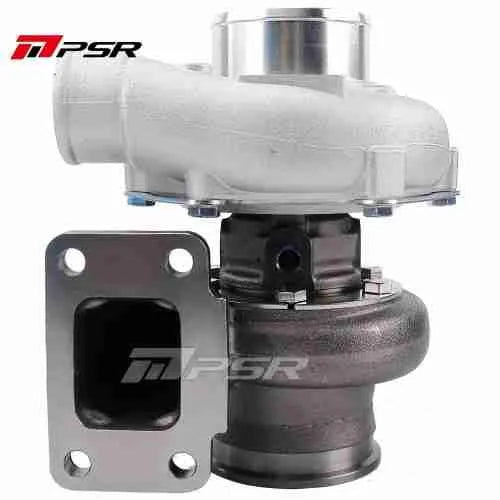

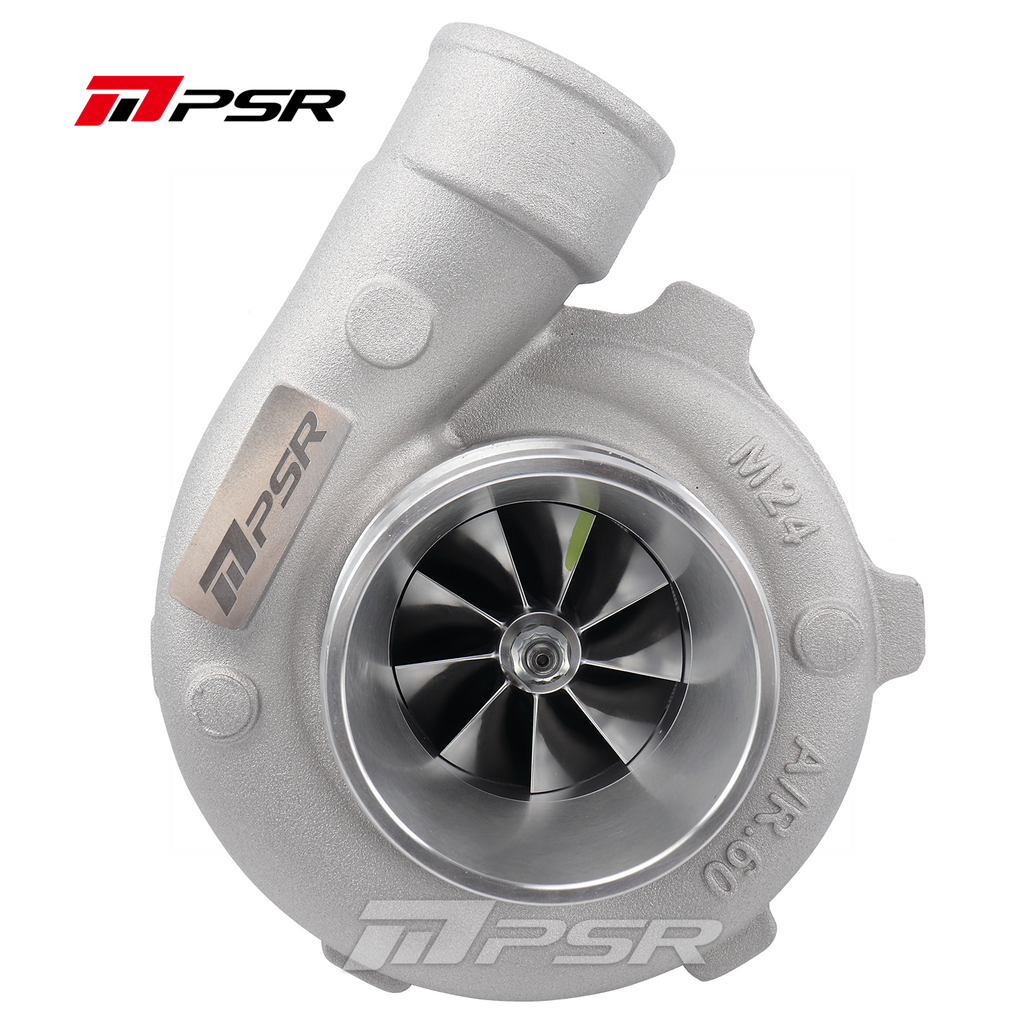

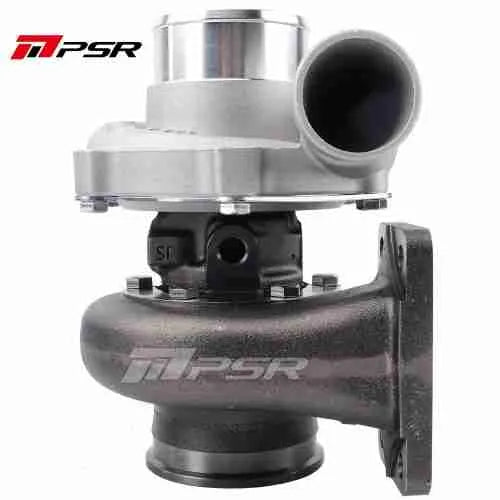

Pulsar PSR3076 GEN2 Compact Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System
• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Multiple options for turbine housing
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
• Compressor Wheel: 58*76mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4 or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

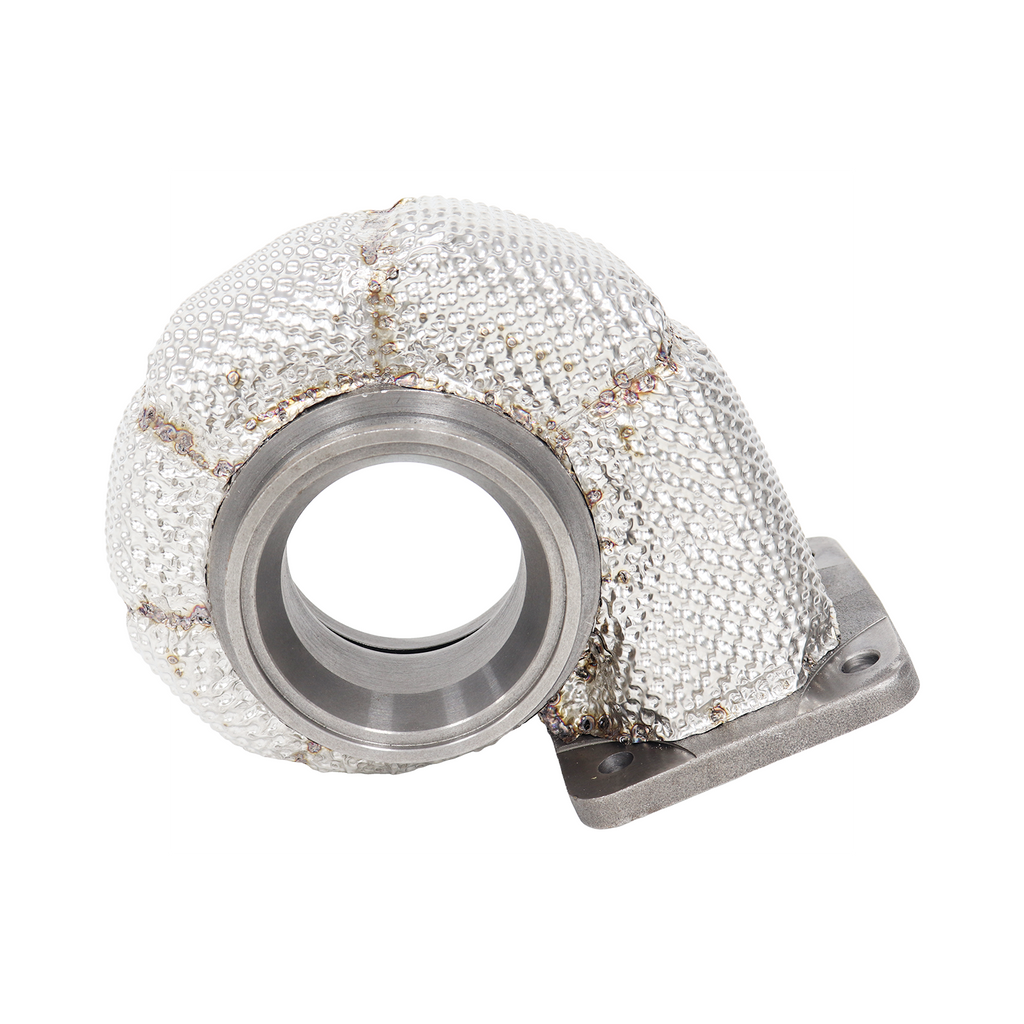

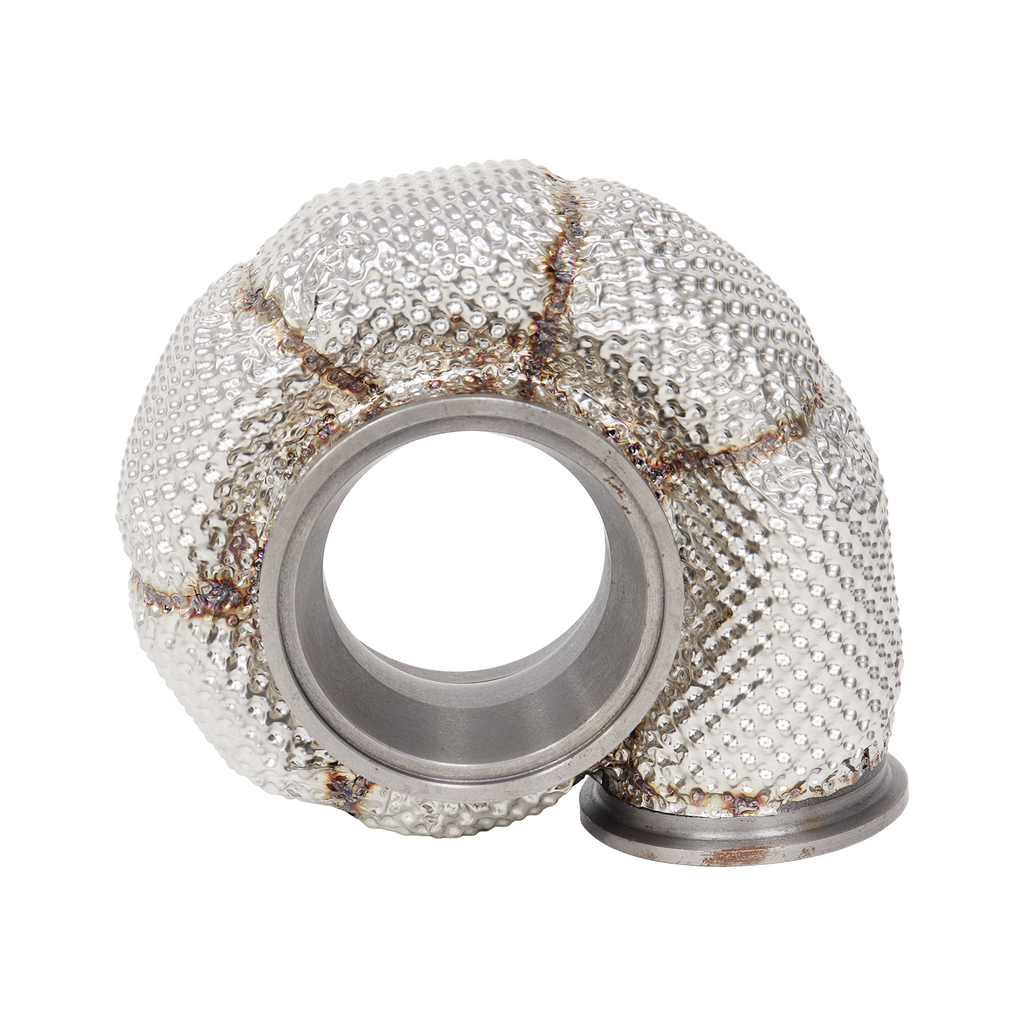

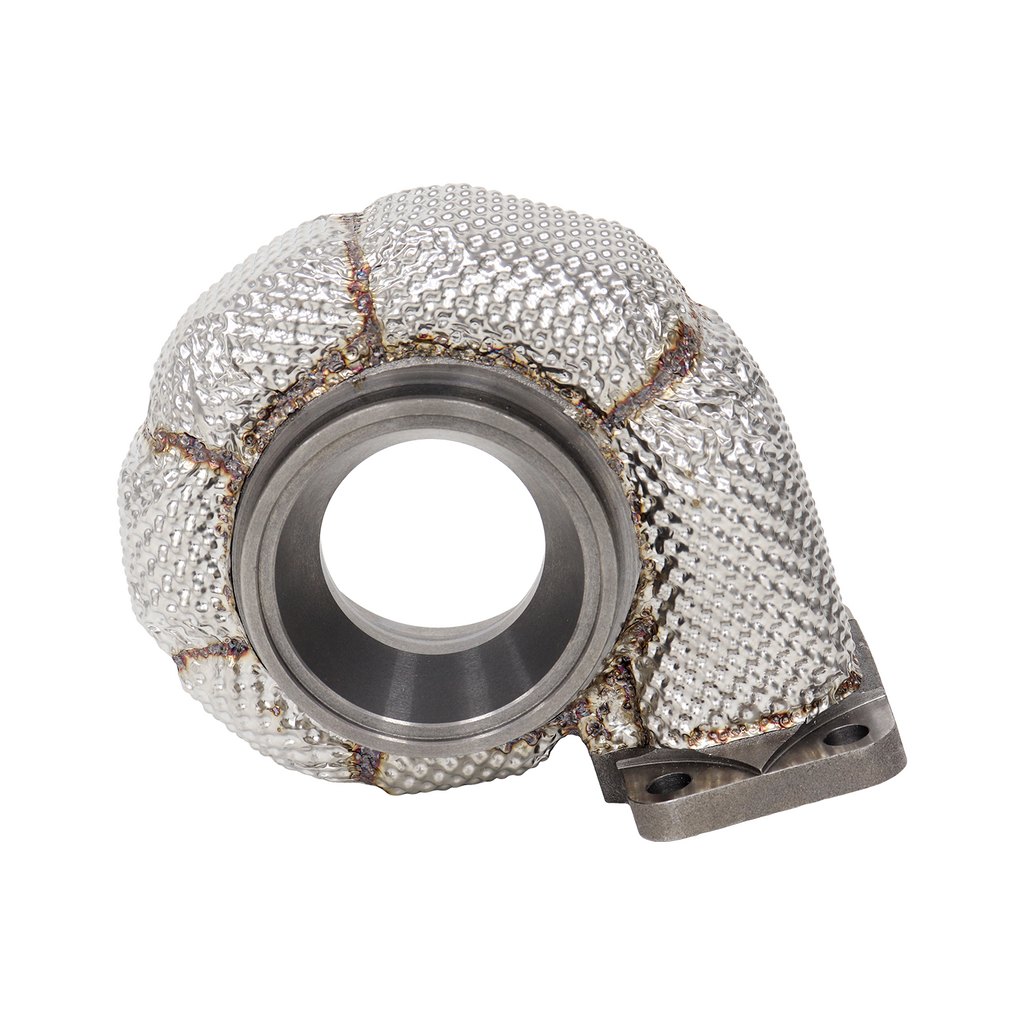

Stainless steel wrapped housing option

Where the stainless steel wrapped style is selected with a turbine housing, Pulsar adds an external stainless heat-retaining wrap around that housing to help contain radiant heat near the turbine. Standard Housing and Stainless Steel Wrapped Housing are separate selectable styles; the wrapped style costs extra.

Pulsar advises allowing 1–2 weeks for a wrapped housing when it is not in stock. BBT can confirm current availability and dispatch timing for the chosen configuration.

A stainless steel turbine housing, where offered in the Turbine Housing menu, describes the housing material. The stainless steel wrapped style describes an additional external covering. Check both selections against the configuration you intend to buy.

BBT can help match the selected turbine A/R, flange pattern, wastegate arrangement and wrapped-housing clearance to your manifold, exhaust and turbo setup. Send BBT your vehicle and turbo details for a configuration check.
