Pulsar PSR3584 Gen 3 Turbo

• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel with High Horsepower
• Cover Integrated with the Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
• Stronger Turbine Wheel for High flow

• • Compressor Wheel: 67*84mm
  • Turbine Wheel: 74*66mm
  • Compressor Inlet: 4.0” Hose
  • Compressor Outlet: 2.5” Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5
  • We highly recommended running water cooling for better durability

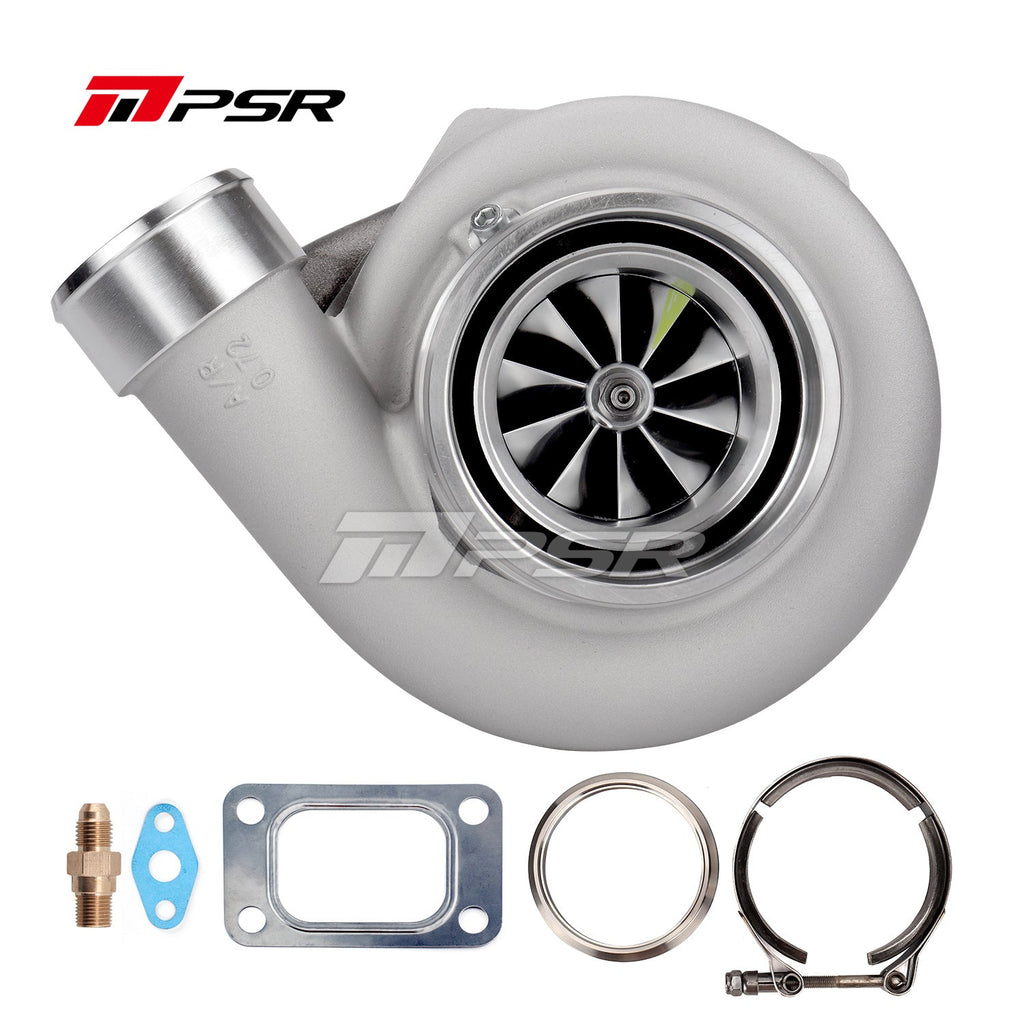

  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
• Based off our popular GTX3584RS series turbo, This is very similar but with the larger 66mm rear wheel.

• PSR3584 GEN3 TURBO comes with stronger turbine wheel for high flow.

Current selectable options

• Compressor Housing: Without Compressor Housing, Standard, T51R Mod
• Turbine Housing: Without Turbine Housing, .63 T3 V Band, .82 T3 V Band, 1.06 T3 V Band, .82 T4 V Band, 1.06 T3 XR6 5 Bolt Rear/ Internal Gate, .85 T4 Divided, 1.06 T4 Divided V Band, .86 T3 Divided V Band, .83 Dual V Band, 1.01 Dual V Band
• Housing Style: Standard Housing, Stainless Steel Wrapped Housing

Choose only combinations shown as available in the selectors; unavailable combinations cannot be added to cart.

Ordering & Fitment

This listing is for Pulsar PSR3584 Gen 3 Turbo. Confirm the vehicle, engine, dimensions and supporting components against your application before ordering where fitment is application-specific. If you require a configuration that is not shown, contact Built by Boost & Tune before purchase.

Built by Boost & Tune Support

Built by Boost & Tune can assist with fitment, fabrication, installation and dyno calibration where required.

Supplier

Pulsar Turbos Australia

Product System

• Turbo & Forced Induction

Application and housing choice

This is a configurable turbocharger for a custom installation. The menu also includes an XR6 style 5-bolt rear housing with an internal wastegate. Select that specific housing for an XR6 application and verify manifold, exhaust, compressor cover, actuator, oil and water connections before ordering. Other housing choices require a separate fitment check for the intended build.
