- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up and Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- V-Band Flange kit for the exhaust housing included
- Max Engine Horsepower: 735
- Billet Compressor Wheel: 62mm / 82.2mm, 7+7 Blade
- Turbine Wheel: 66.1 / 74.17mm, 10 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose
- Turbine Housing: T3 0.82A/R, T4 0.96A/R

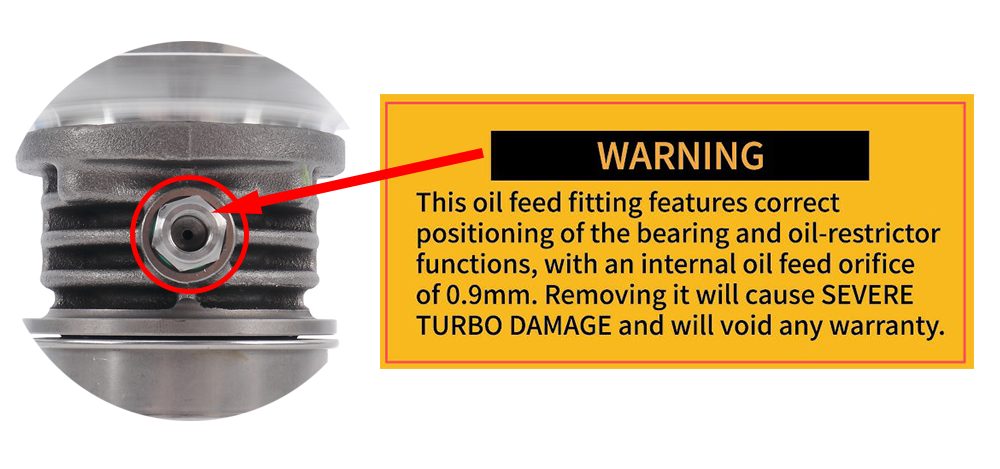

- Oil feed fitting: 1/8-27 NPSF
- Oil drain: T4 flange
Pulsar PTE 6266 Ball Bearing Turbo Up to 735HP
Without Turbine Housing / Standard Housing
$1,275.00
Skip to product information
Pulsar PTE 6266 Ball Bearing Turbo Up to 735HP
$1,275.00
Stainless steel wrapped housing style
Pulsar offers Standard Housing and an extra-cost Stainless Steel Wrapped Housing style where applicable to the selected turbine housing. This external stainless covering is intended to help contain radiant heat at the turbine. The style selection applies to the housing chosen in the turbine housing menu.
Pulsar advises allowing 1–2 weeks for a wrapped housing if it is not available from stock. BBT can confirm availability and dispatch timing for the exact selected configuration.
A turbo selected without a turbine housing has no housing to wrap. Choose an eligible turbine housing with the wrapped style if a wrapped housing is required.
BBT can help confirm compressor-cover and turbine-housing choices, flange compatibility, wastegate arrangement and clearance around the wrapped turbine for your build. Send us your turbo and application details for a configuration review.
Current selectable options
- Rear Housing Options: Without Turbine Housing, T3 .82 A/R, T3 .63 A/R, T4 .96 A/R, Dual V Band .96 A/R
- Housing Style: Standard Housing, Stainless Steel Wrapped Housing
