- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel with “RS” blade profile design
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
-
- Compressor Wheel: 67*84mm
- Turbine Wheel: 68*62mm (“RS” blade profile)
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.

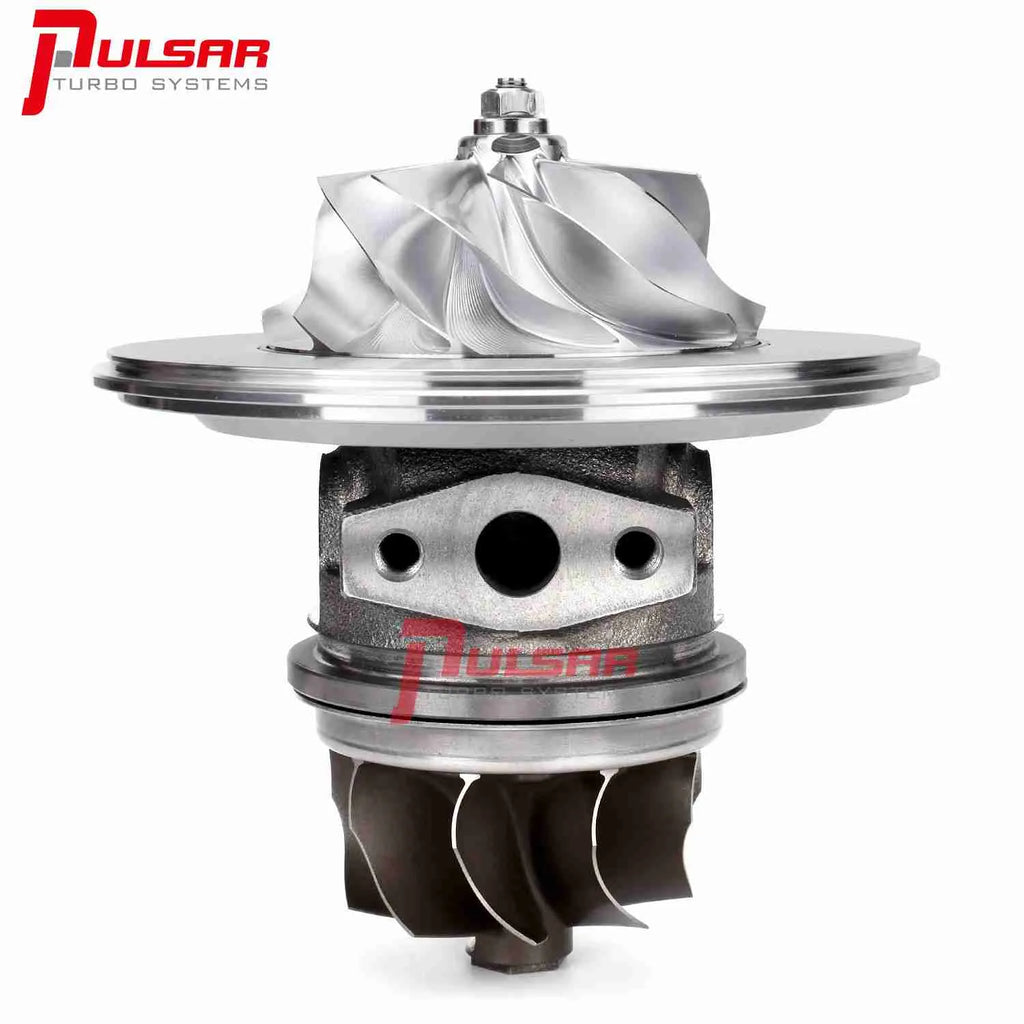

Pulsar Turbo PSR3584RS GEN2 Turbocharger
Without Compressor Housing / W/O Turbine Housing / Standard Housing
$749.00
Skip to product information
Pulsar Turbo PSR3584RS GEN2 Turbocharger
$749.00
Stainless steel wrapped housing style
Pulsar offers Standard Housing and an extra-cost Stainless Steel Wrapped Housing style where applicable to the selected turbine housing. This external stainless covering is intended to help contain radiant heat at the turbine. The style selection applies to the housing chosen in the turbine housing menu.
Pulsar advises allowing 1–2 weeks for a wrapped housing if it is not available from stock. BBT can confirm availability and dispatch timing for the exact selected configuration.
Where the turbine housing menu separately lists stainless steel, that refers to the housing material. The wrapped style is an additional external covering; check both options before ordering.
BBT can help confirm compressor-cover and turbine-housing choices, flange compatibility, wastegate arrangement and clearance around the wrapped turbine for your build. Send us your turbo and application details for a configuration review.
Current selectable options
- Compressor Housing Options: Without Compressor Housing, Standard, T51R MOD
- Turbine Housing Options: W/O Turbine Housing, T3 .82 V-BAND, T3 1.06 V-BAND, 1.01 DUAL V-BAND, 0.83 DUAL V-BAND, T4 .82 V-BAND, .82 STAINLESS STEEL DUAL V-BAND, .64 STAINLESS STEEL DUAL V-BAND, 1.06 T4 Divided, T3 .63 V-BAND
- Housing Style: Standard Housing, Stainless Steel Wrapped Housing
