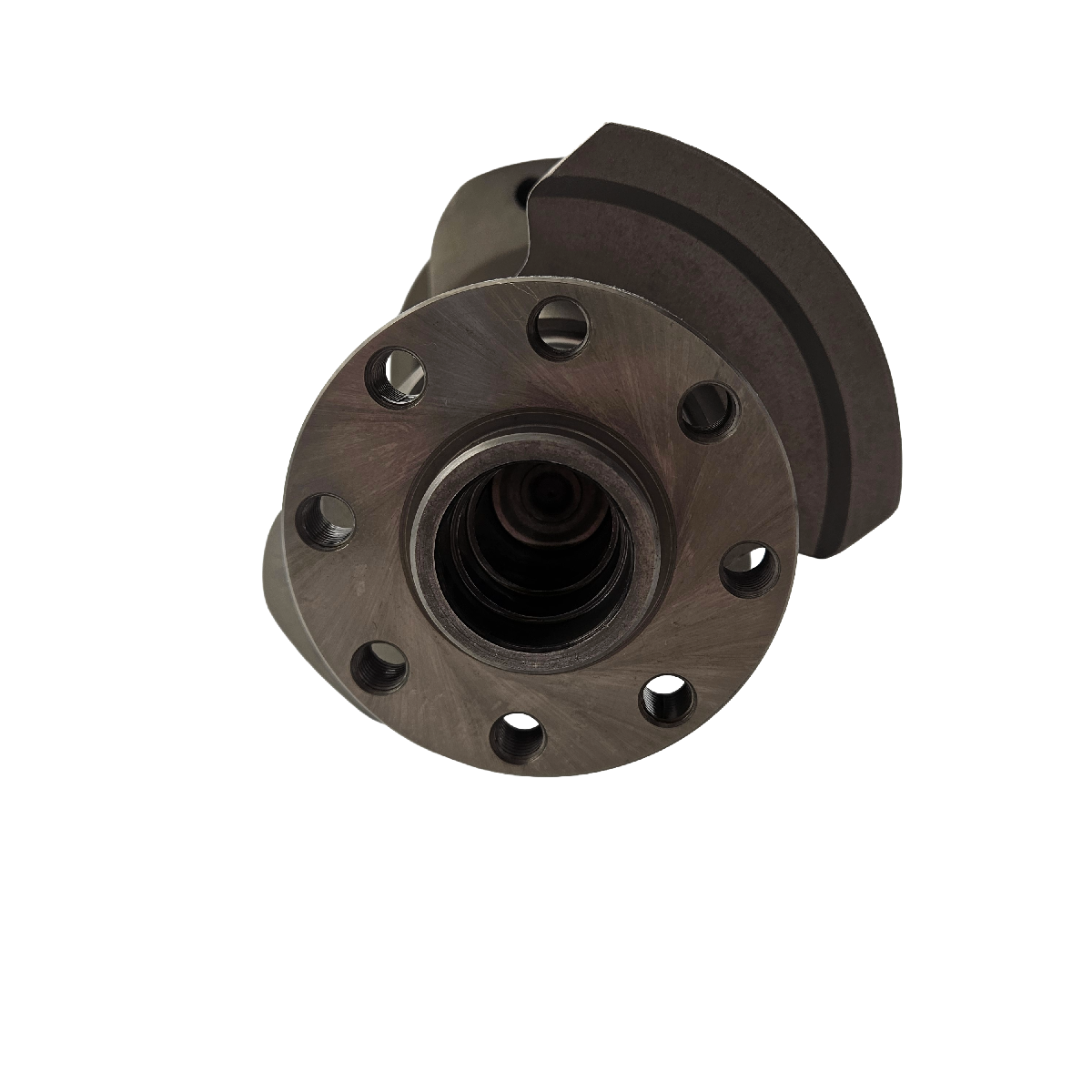

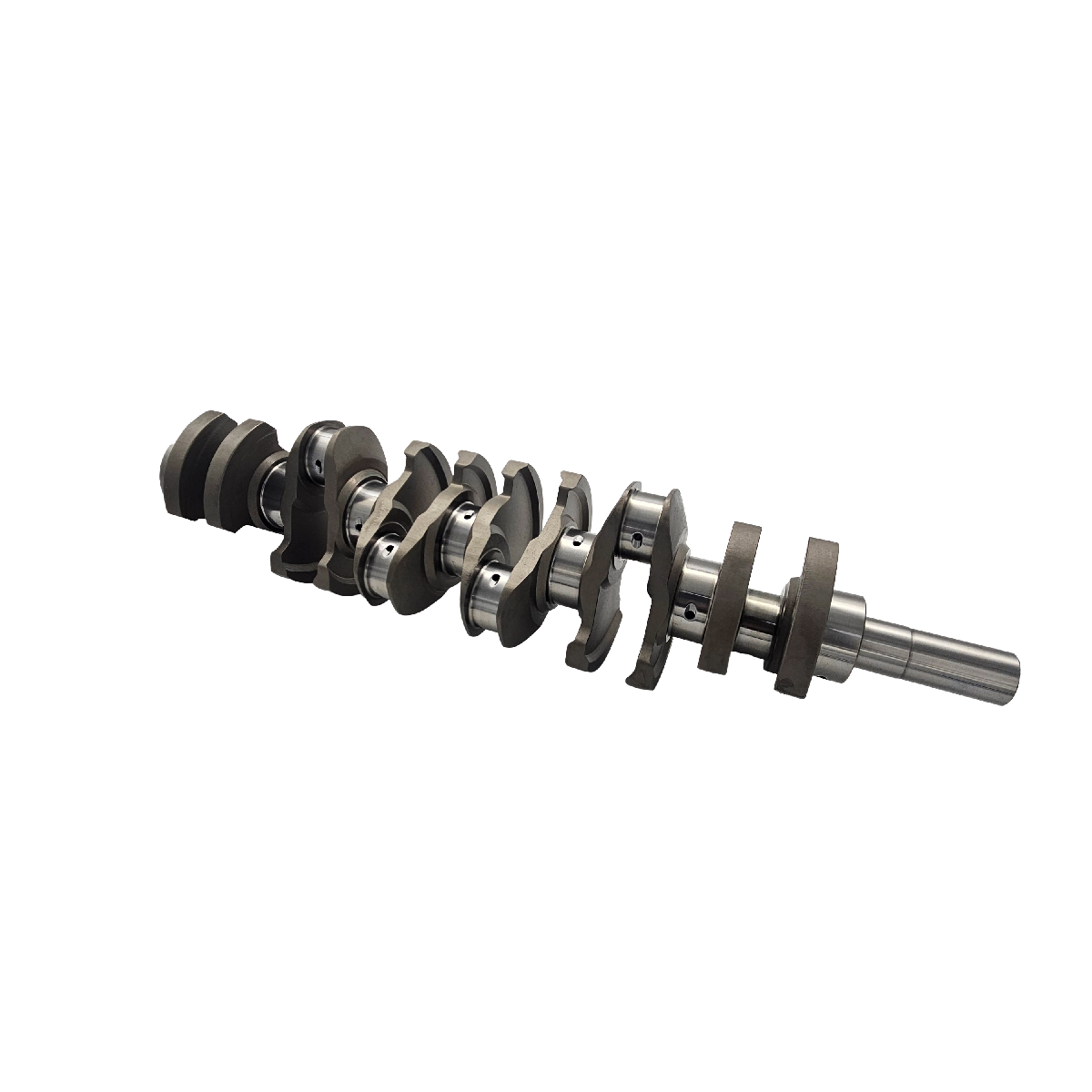

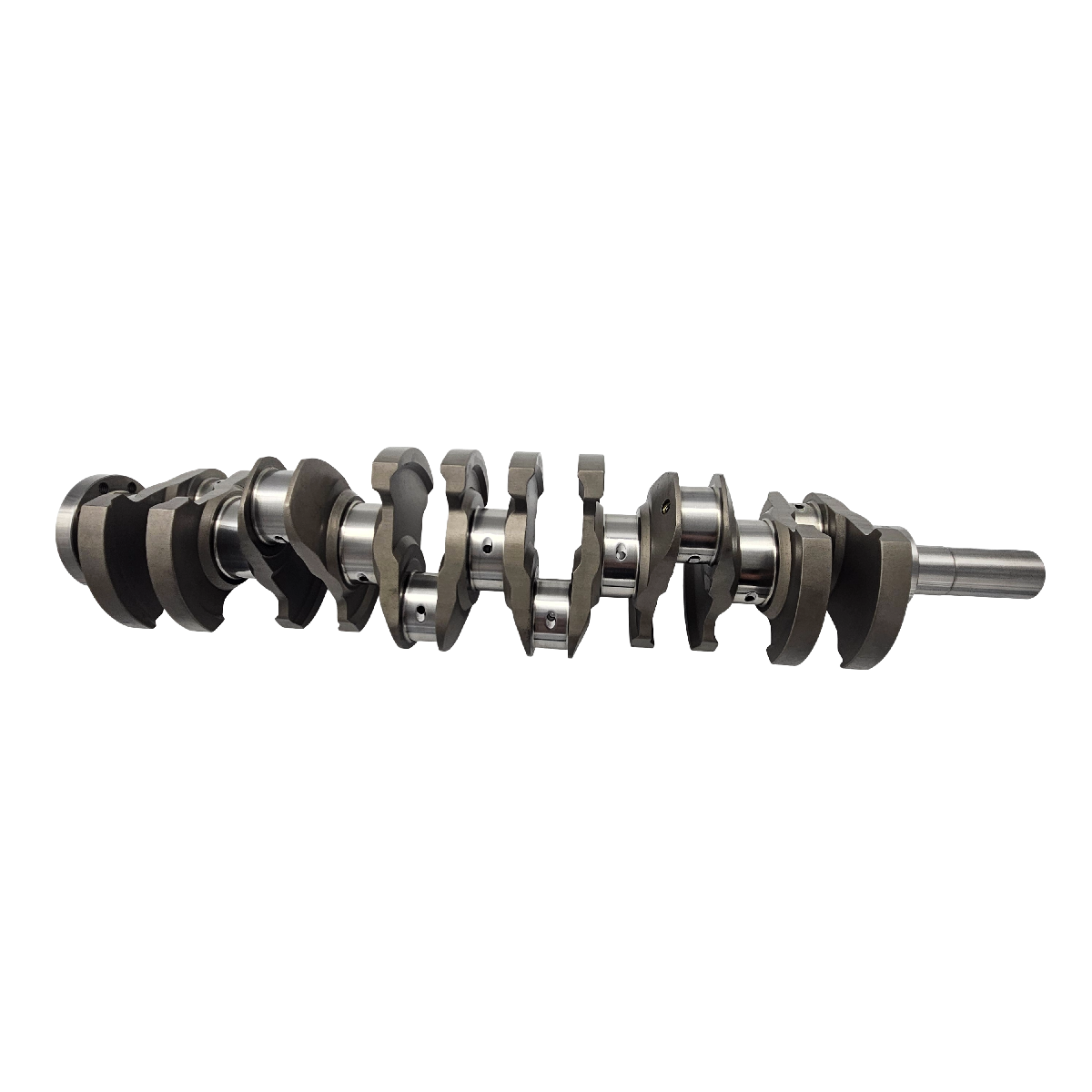

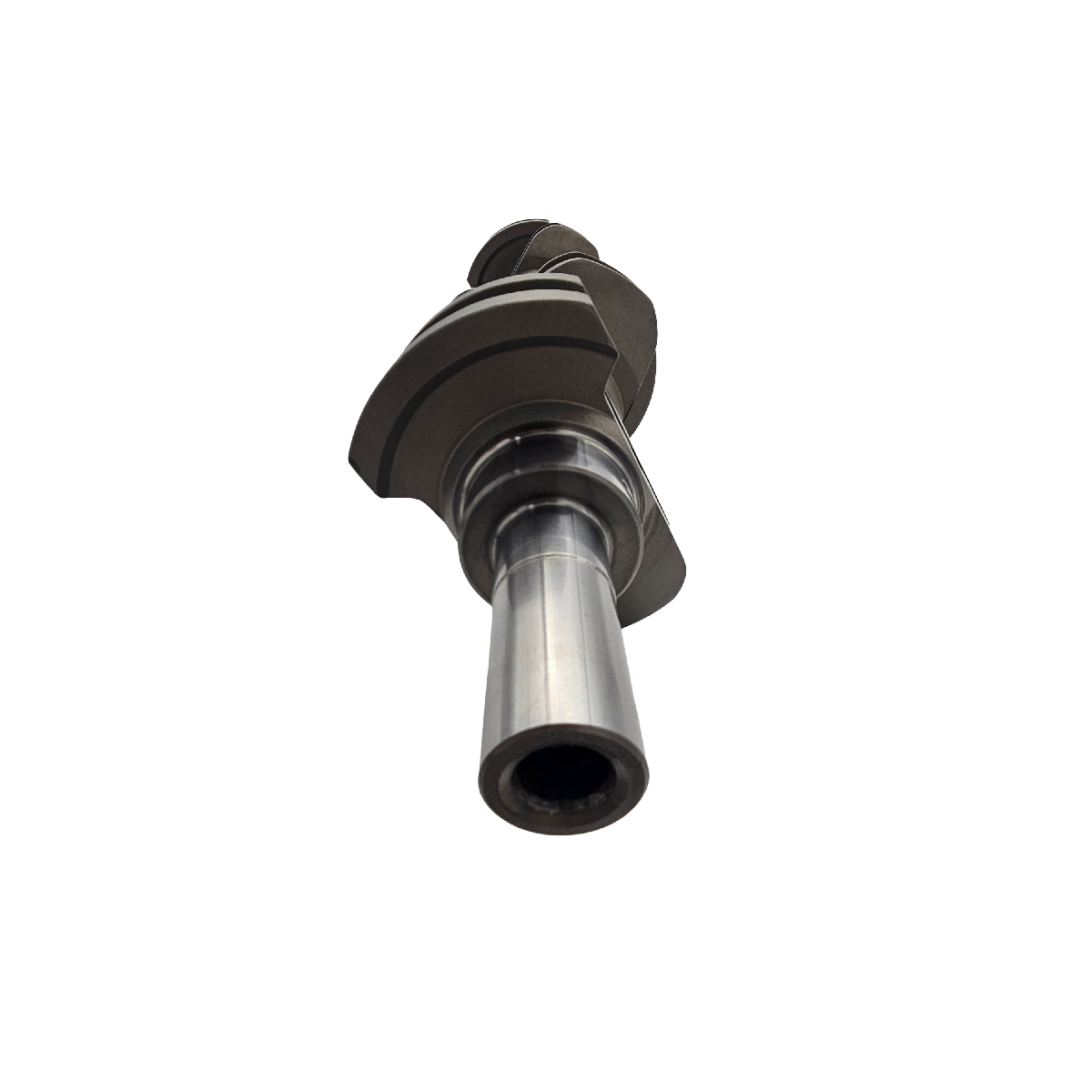

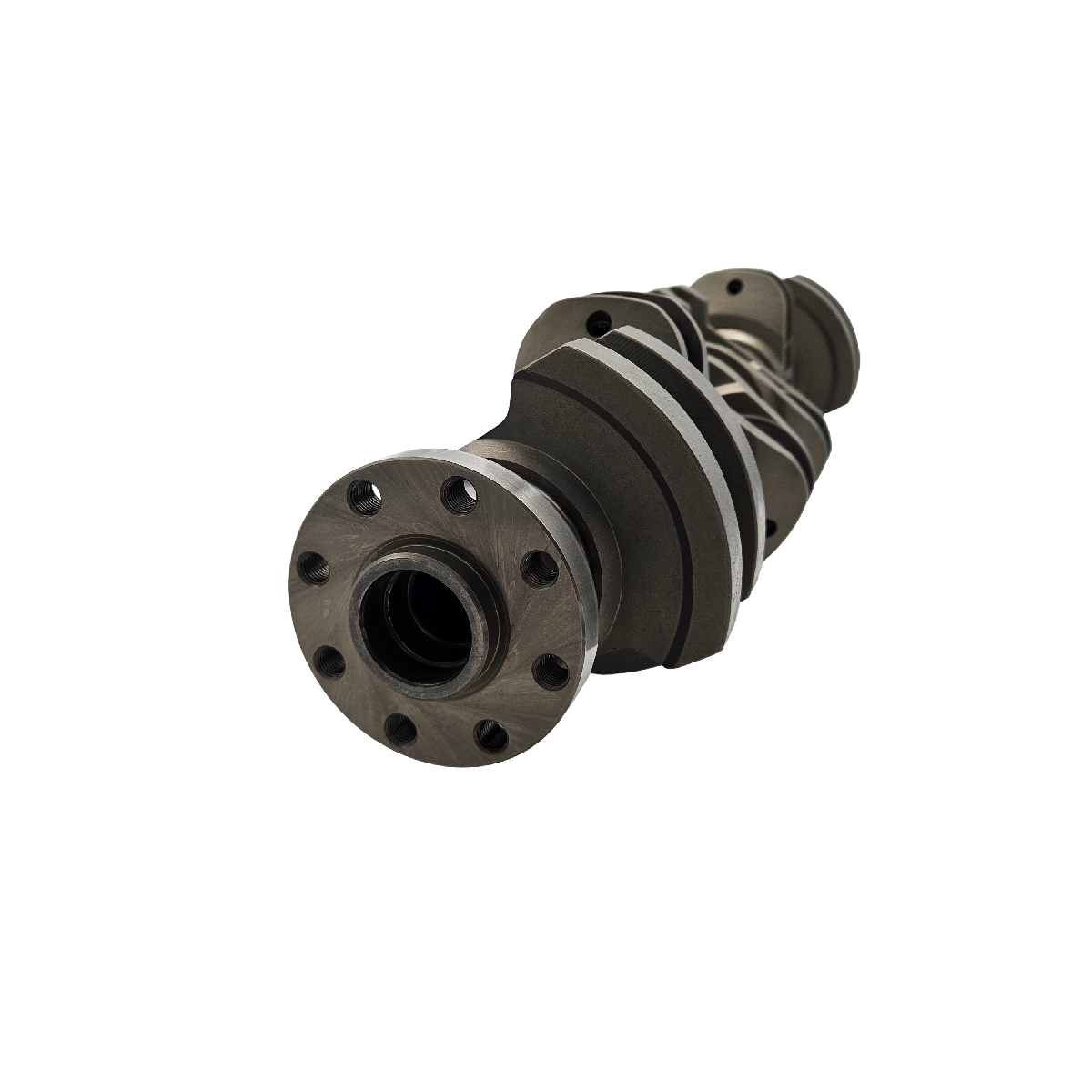

Spool Toyota 2JZ-GTE 91mm stroke crankshaft (EN40B)

Toyota 2JZ-GTE 3.2L Billet EN40B 91mm Stroker Crankshaft

The Toyota 2JZ-GTE engine in factory form features an 86 mm bore and 86 mm stroke, producing a displacement of 2997 cc.

By upgrading to the Spool 91 mm stroker crankshaft while retaining standard-length conrods and using custom pistons, engine capacity is increased significantly:

• 86.6 mm bore + 91 mm stroke = 3285 cc (↑ 288 cc)

• 87.1 mm bore + 91 mm stroke = 3362 cc (↑ 365 cc)

This increase in cubic capacity delivers substantial gains in torque and drivability, particularly in the low-to-mid RPM range.

Why EN40B?

The Spool EN40B 2JZ stroker crankshaft is designed for extreme power, sustained high RPM, and long-term durability in competition and high-horsepower street builds.

EN40B is a nickel-chromium-molybdenum alloy steel, traditionally used in aerospace and motorsport applications where fatigue resistance and core strength are critical. When combined with nitriding, EN40B offers exceptional surface hardness without compromising core toughness.

This makes it an ideal material for engines that see:

• Very high cylinder pressures

• Sustained high RPM

• Drag, roll racing, circuit, and extreme street use

True Billet Construction

The Spool EN40B 2JZ stroker crankshaft is a true billet crankshaft, fully CNC-machined from solid EN40B core stock.

This is not a cast or forged blank that has been finish-machined.

Manufacturing process:

1. CNC-machined from EN40B billet core stock

2. Heat treated

3. Precision nitrided for surface hardness and wear resistance

4. Final ground and fully balanced

The result is a crankshaft with exceptional dimensional stability, strength, and fatigue life.

Performance Benefits

With the increased displacement provided by the 91 mm stroke, engines typically experience:

• Up to 50% gains in torque (application dependent)

• Stronger low and mid-range power

• Earlier boost onset

• Increased peak power potential

• Improved overall engine response

This makes the EN40B stroker crank particularly well-suited to large-frame turbo applications where spool and torque are critical.

EN40B vs 4340 – Material Comparison

Summary:
4340 is an excellent performance crank material and suitable for many builds.
EN40B is the next step up, chosen when maximum durability, fatigue resistance, and long-term reliability under extreme loads are the priority.

Crankshaft Specifications

• Weight: 23 kg

• Material: EN40B Billet Steel

• Stroke: 91 mm

• Fully Counterweighted

• Precision Nitrided

• Fully Balanced

• Designed for High-Boost & High-RPM Applications

Engine build fitment

2JZ. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Measure journal and thrust clearances, check block clearance and balance the complete rotating assembly. Confirm the damper, crank trigger and flywheel arrangement with your engine builder.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
