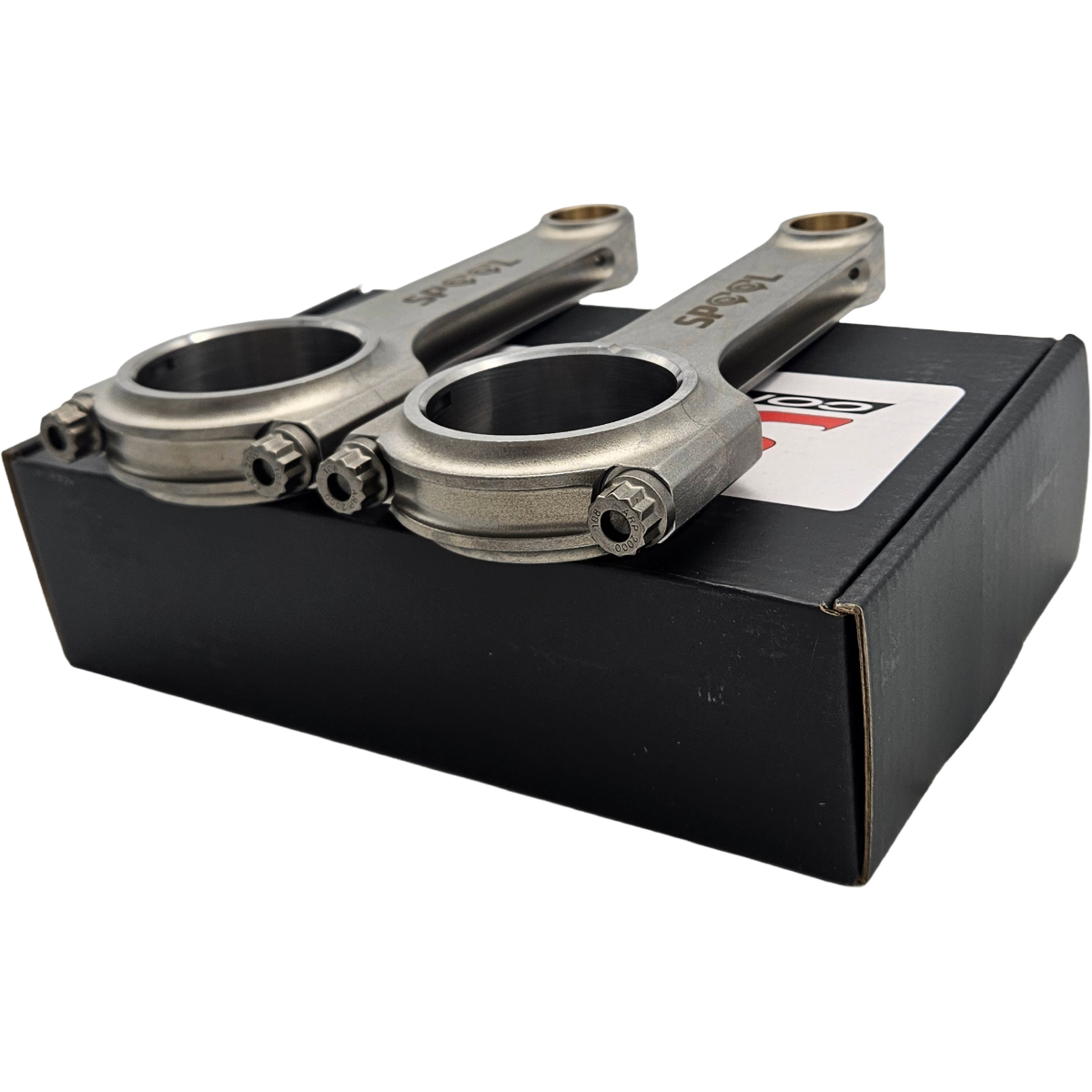

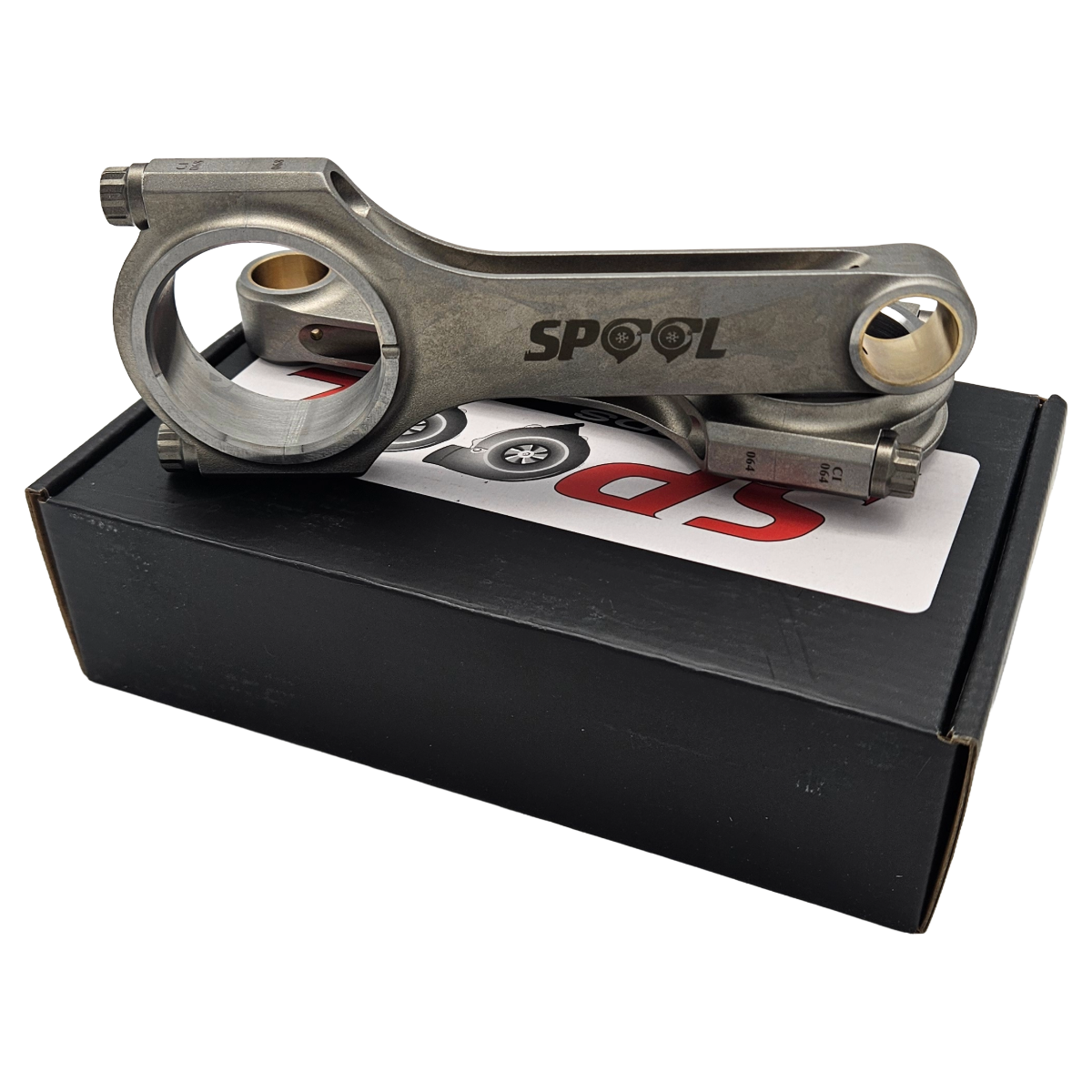

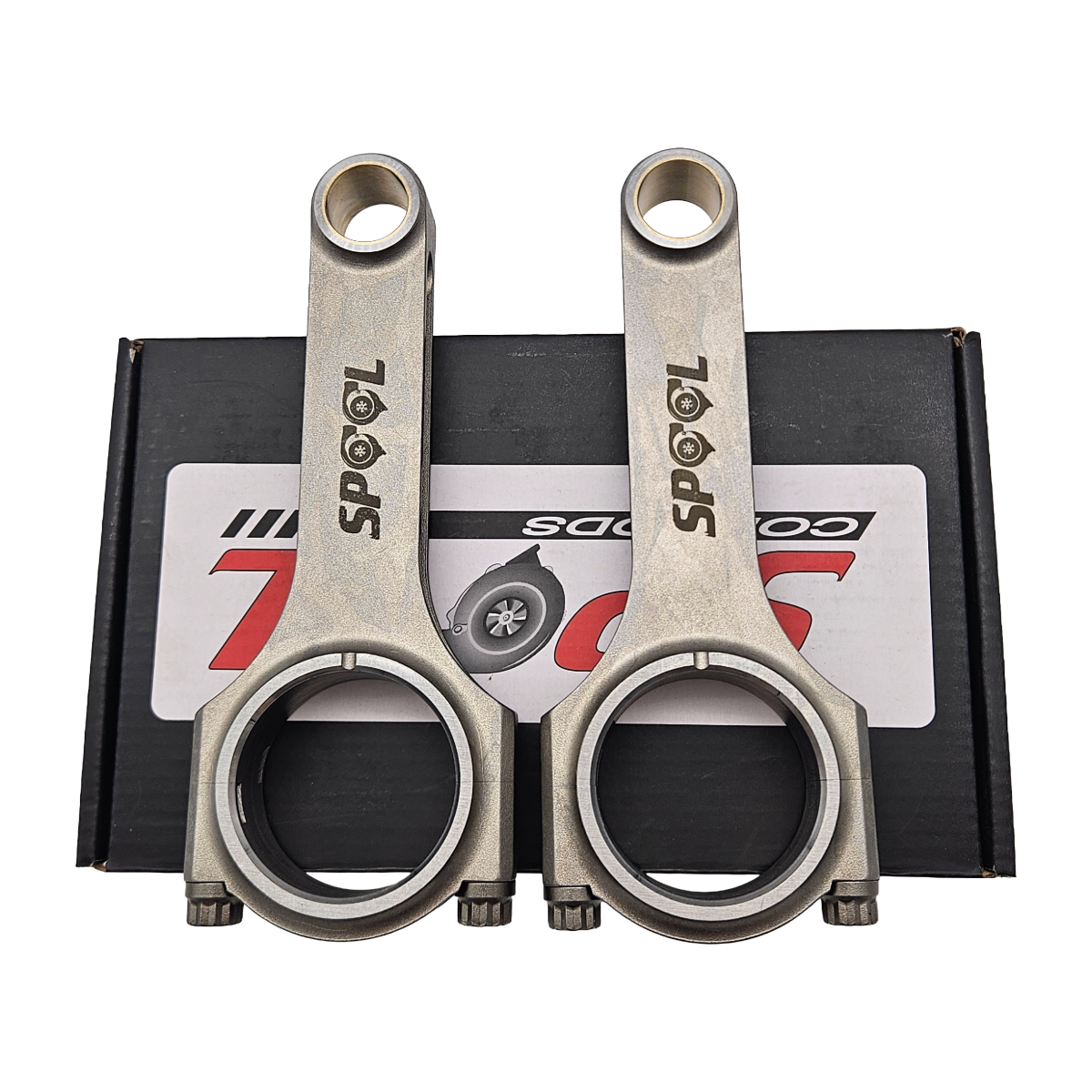

Spool Audi / VW 1.8L/2.0L EA113 H-Beam Conrods

$620.00

Conrod Option

Big End Bearing Option 4B1606H

All Spool Conrods come standard with ARP 2000 Fasteners.

These are a direct fit conrod for Audi/VW 1.8L/2.0L engines with 21mm Pin, 144mm centre to centre and 24.89mm Big End Width including EA113

These conrods feature:

High tensile 4340 forged steel
2 Piece forging
Hardness of HRC36-42
Dowelled caps for precision alignment
X-RAY & Sonic tested
Quenching and heat treated
Shot peened
100% Magnafluxed
Weight Matched Sets + - 1 gram
Vacuum degassed to remove impurities.
Side oil squirters

No bearings are included but can be added (Note: ACL use the bearings for both TFSI an TSI so the bearings look narrow in TFSI conrods)

Specifications:

Small End Pin Size: 21mm

Small End Pin Width 21.89mm

Big End Bore: 50.617mm

Big End Width 24.89mm (Note: Big end width some engines are 21.89mm)

Centre to Centre 144mm

Weight: 610g (with bolts)

Available options

Conrod Option: Spool H-Beam ARP2000 3/8 Bolt; Spool H-Beam ARP L19 3/8 Bolt; Spool H-Beam ARP CA625 3/8 Bolt
Big End Bearing Option 4B1606H: No Big End Bearings; HX-STD; STD; .025; .25

Engine build fitment

TFSI. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
