Spool CP Custom Toyota 1FZ-FE Forged Pistons
$2,150.00

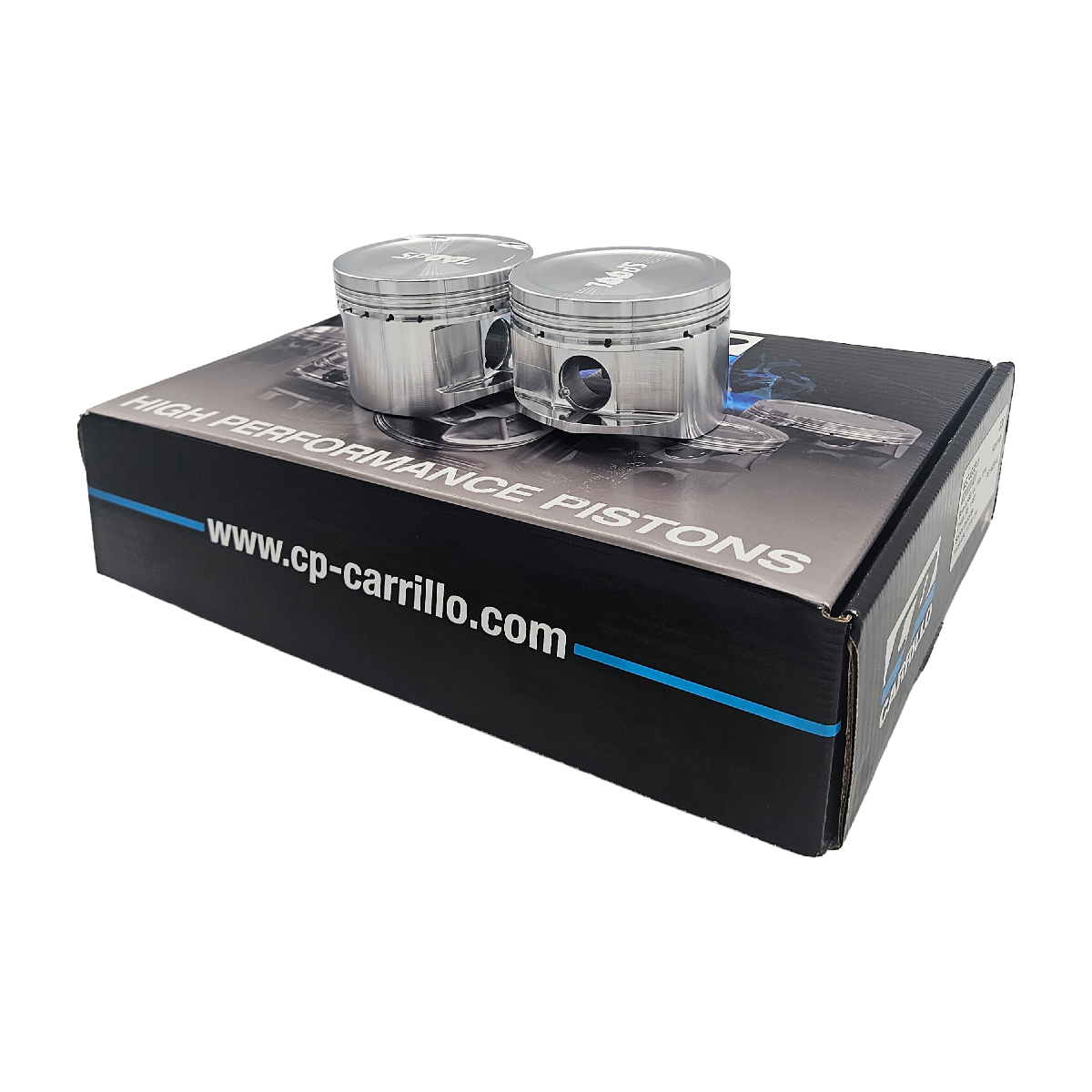

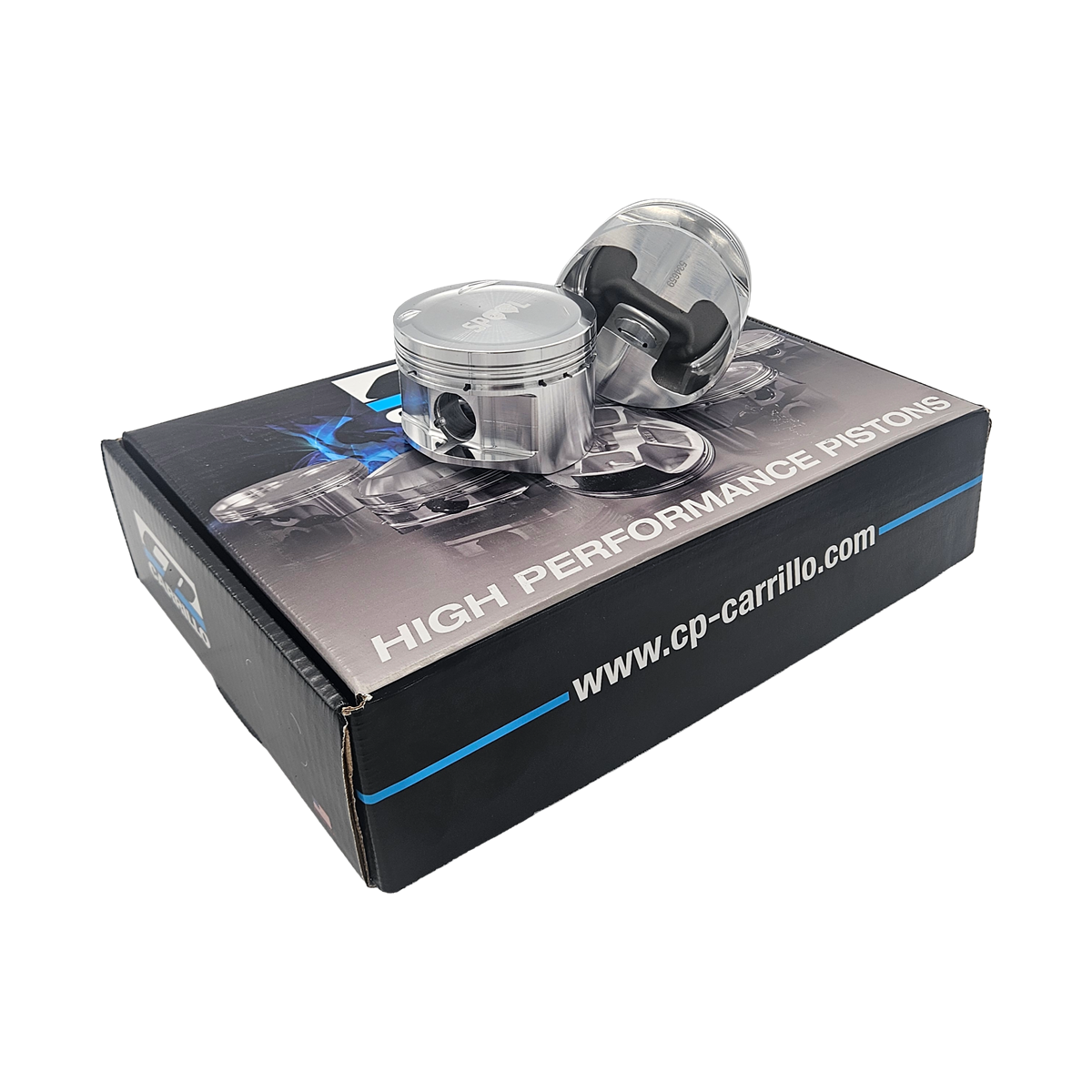

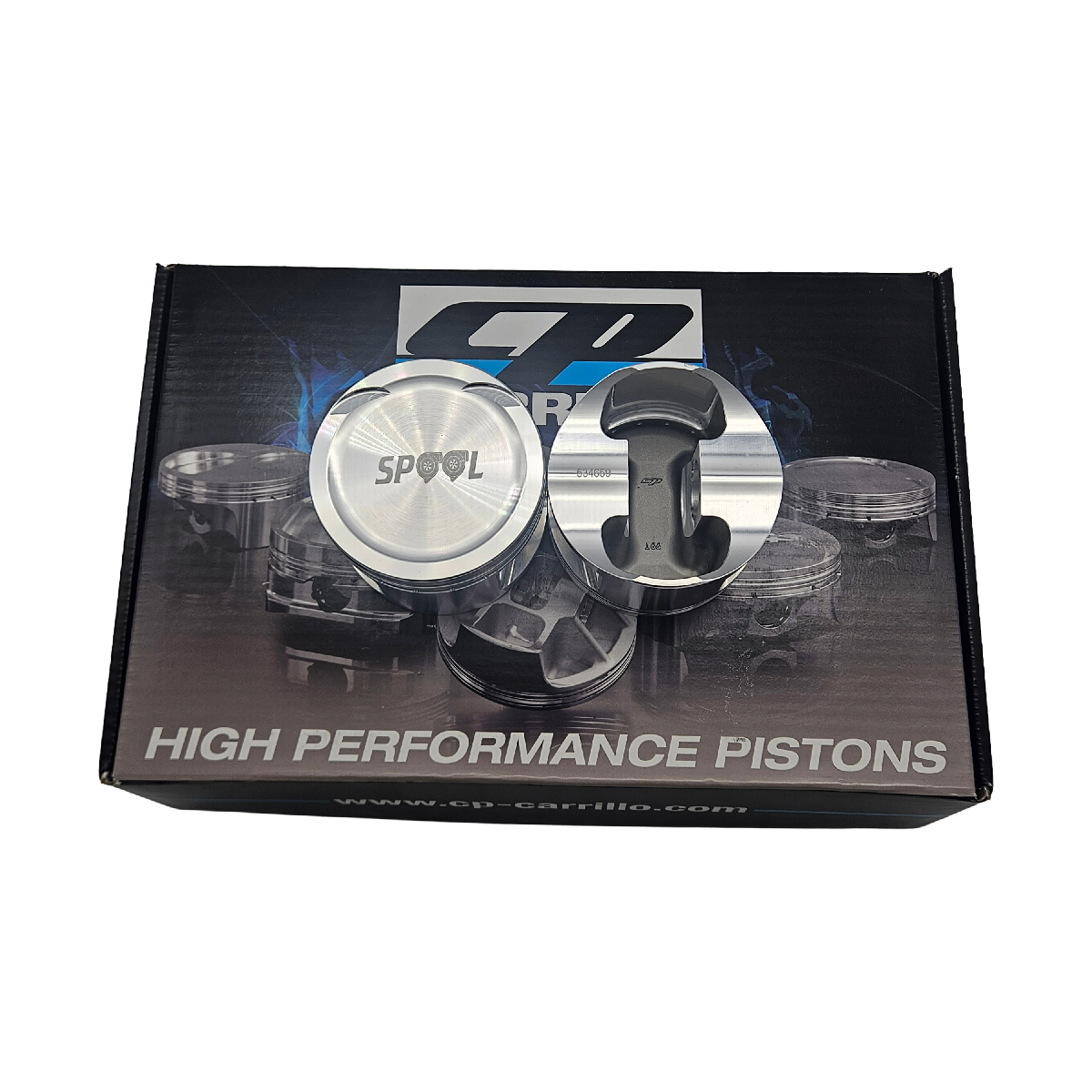

Toyota 1FZ-FE CP Forged Piston
These Pistons are custom made for Spool and rated at 1000hp by CP.
- Compression Ratio: 9.0:1
- Bore Size: +0.5mm
- Rings, Pins and Locks Included
CP Pistons standard features include:
- 5310 gudgeon pins
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminum forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Product images are for description purposes only. Actual product may vary.
Engine build fitment
1FZ-FE. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.
Installation and BBT workshop support
Confirm finished bore size, piston-to-wall clearance, compression height, pin specification, ring gaps and valve clearance against the supplied piston documentation.
Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
