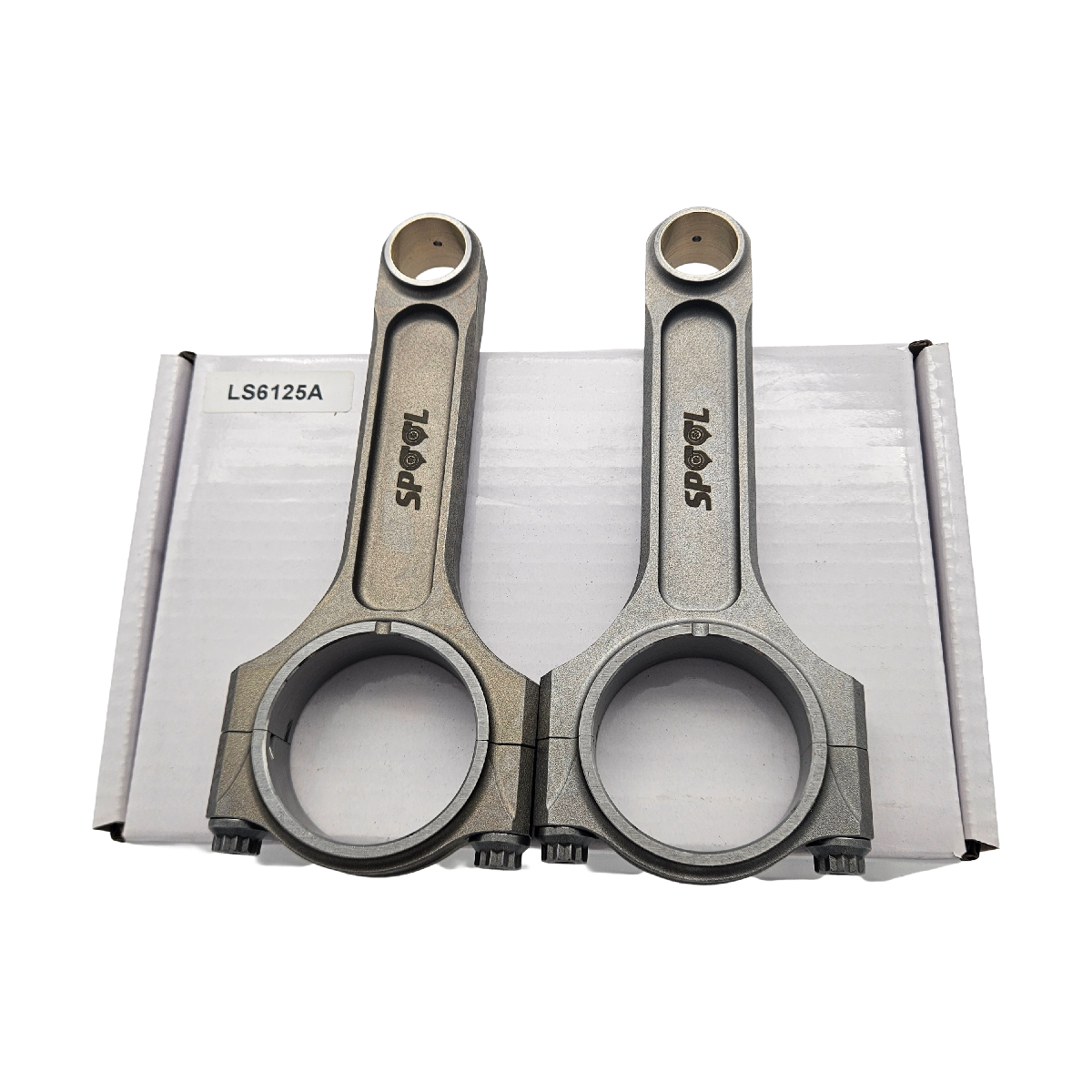

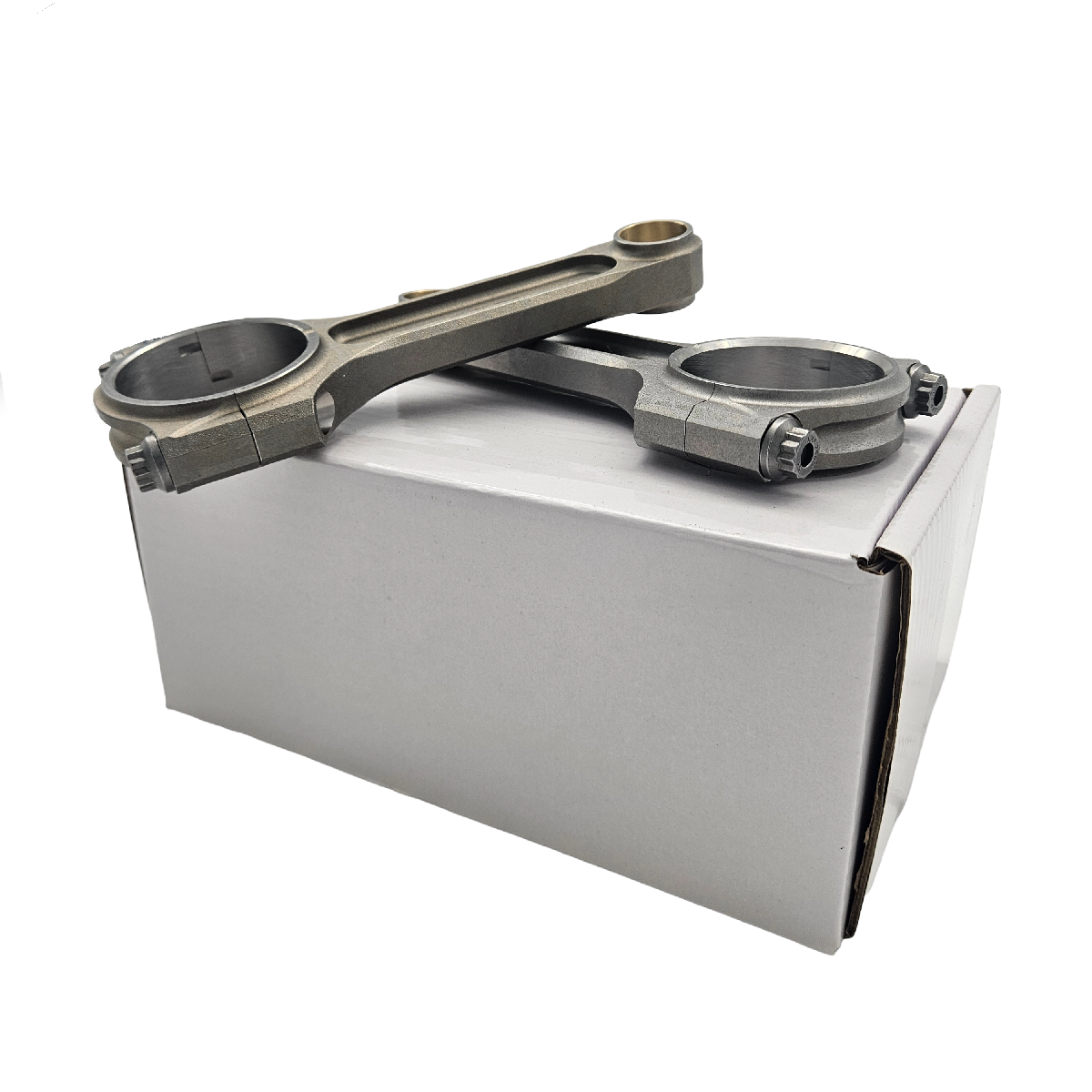

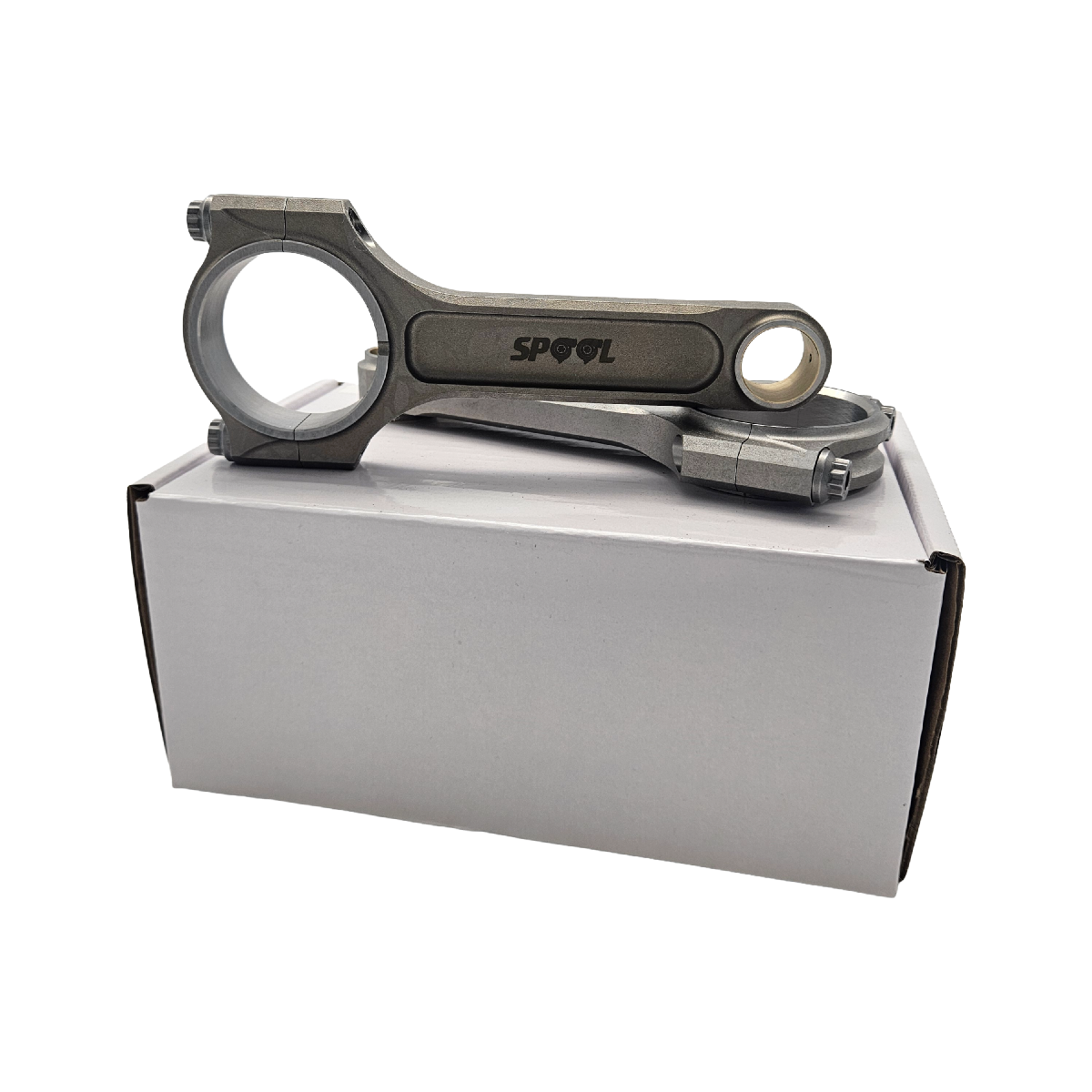

Spool Holden / GM LS 6.125" Drag Pro I Beam Conrods

All Spool Drag Pro Conrods come standard with 7/16 ARP 2000 Fasteners

Holden / GM LS 6.125" Drag Pro I Beam Conrods

Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit conrod for all Holden GM LS 5.7L and 6L V8 engines.

New features:

• Upgraded ARP2000 7/16 bolts
• Increased strength to the beam
• Increased strength around the fasteners / bolts
• Increased strength around the gudgeon pin

These conrods feature:

• High tensile 4340 forged steel
• 2 Piece forging
• Hardness of HRC36-42
• Dowelled caps for precision alignment
• X-RAY & Sonic tested
• Quenching and heat treated
• Shot peened
• 100% Magnafluxed
• Weight Matched Sets + - 1 gram
• Vacuum degassed to remove impurities.

ARP L19 bolt upgrade option available.

Note: Clearancing of the cylinder block is sometimes required.

No bearings are included.

Available options

• Conrod Option: Spool Drag Pro I-Beam ARP2000 7/16 Bolt; Spool Drag Pro I-Beam ARP L19 7/16 Bolt

Engine build fitment

GM / LS|LS 5.7L and 6.0L V8. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
