Spool Toyota 1FZ-FE 4.8L Stroker Kit

Spool Toyota 1FZ-FE 4.8L Stroker Kit

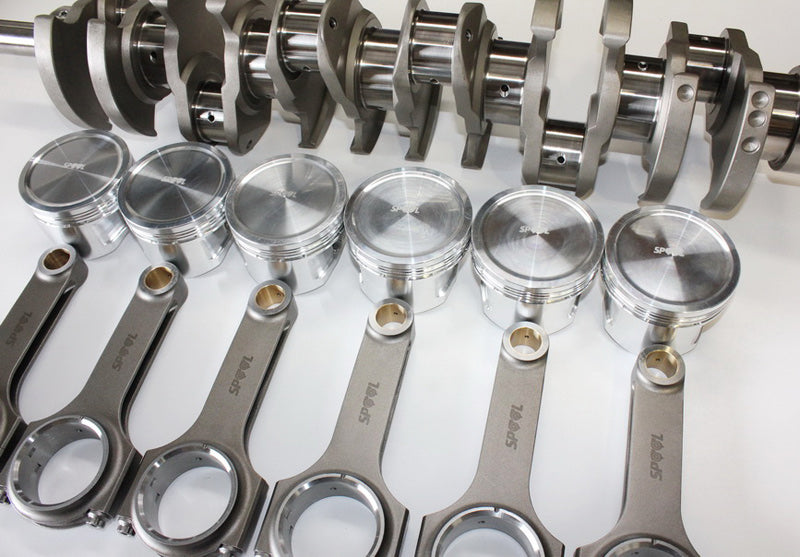

This kit includes:

• Spool Billet 4340 101mm Stroker Crankshaft
• Spool H Beam Forged Conrods with ARP2000 7/16 Bolts
• CP Custom Pistons with rings pins and locks. Pistons can be ordered in any bore size, any compression ratio and to suit turbo or naturally aspirated applications
• Full billet 4340 Nitrided and Balanced Crankshaft

With the increased cubic capacity from the 101mm stroker crank, increases of up to 50% in torque and low to mid range power are achievable. Boost will come on earlier in the rev range and peak power will increase.

Note: If conrod to block interference occurs, slight clearancing may be required.

Available options

• Piston Diameter: +0.5mm; +1mm; STD (Special Order)
• Conrod Bolts: ARP2000; ARP L19

Engine build fitment

1FZ-FE. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm block and head configuration, finished bore size, bearing clearances, compression ratio and crank trigger compatibility. Block clearancing and rotating assembly balancing may be required.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
