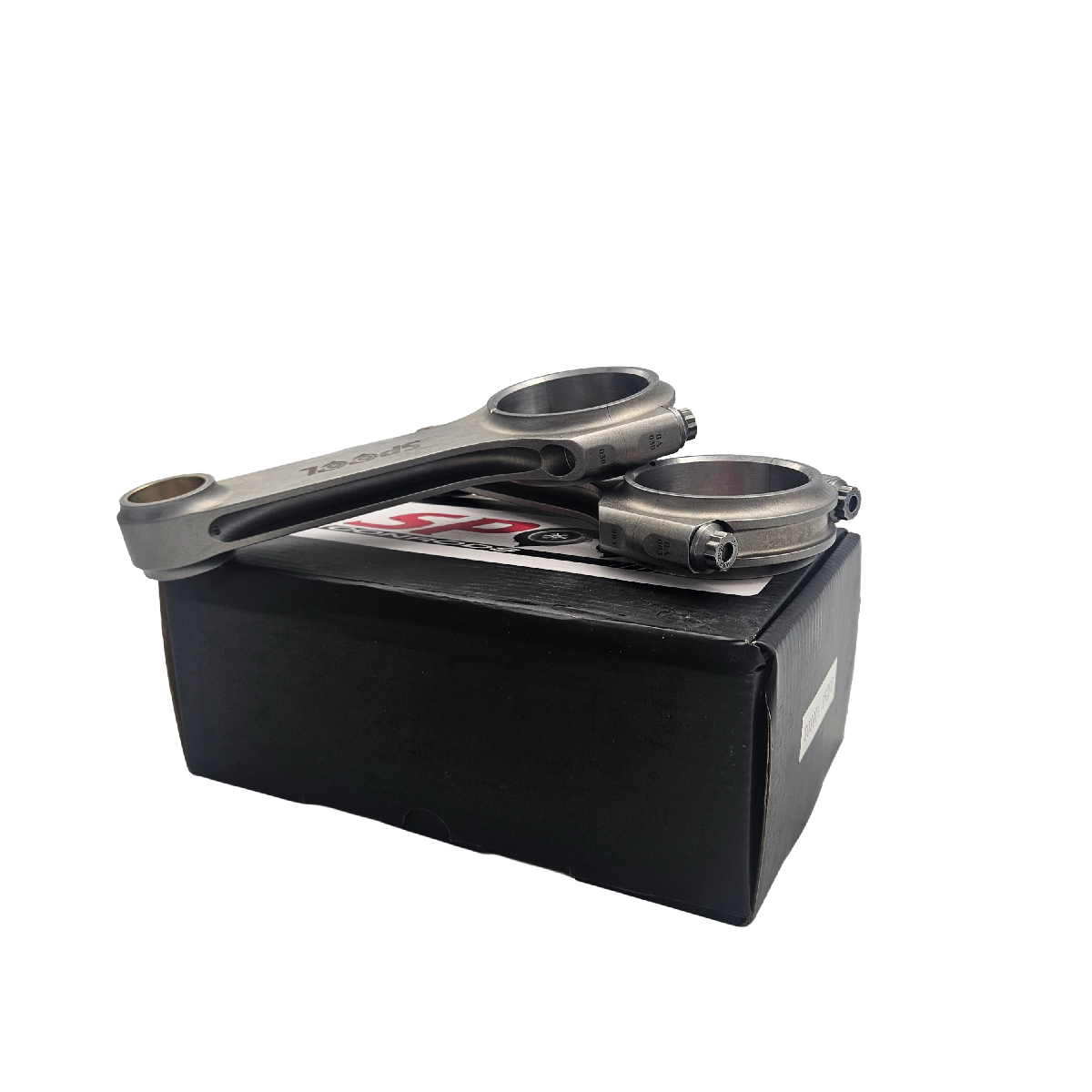

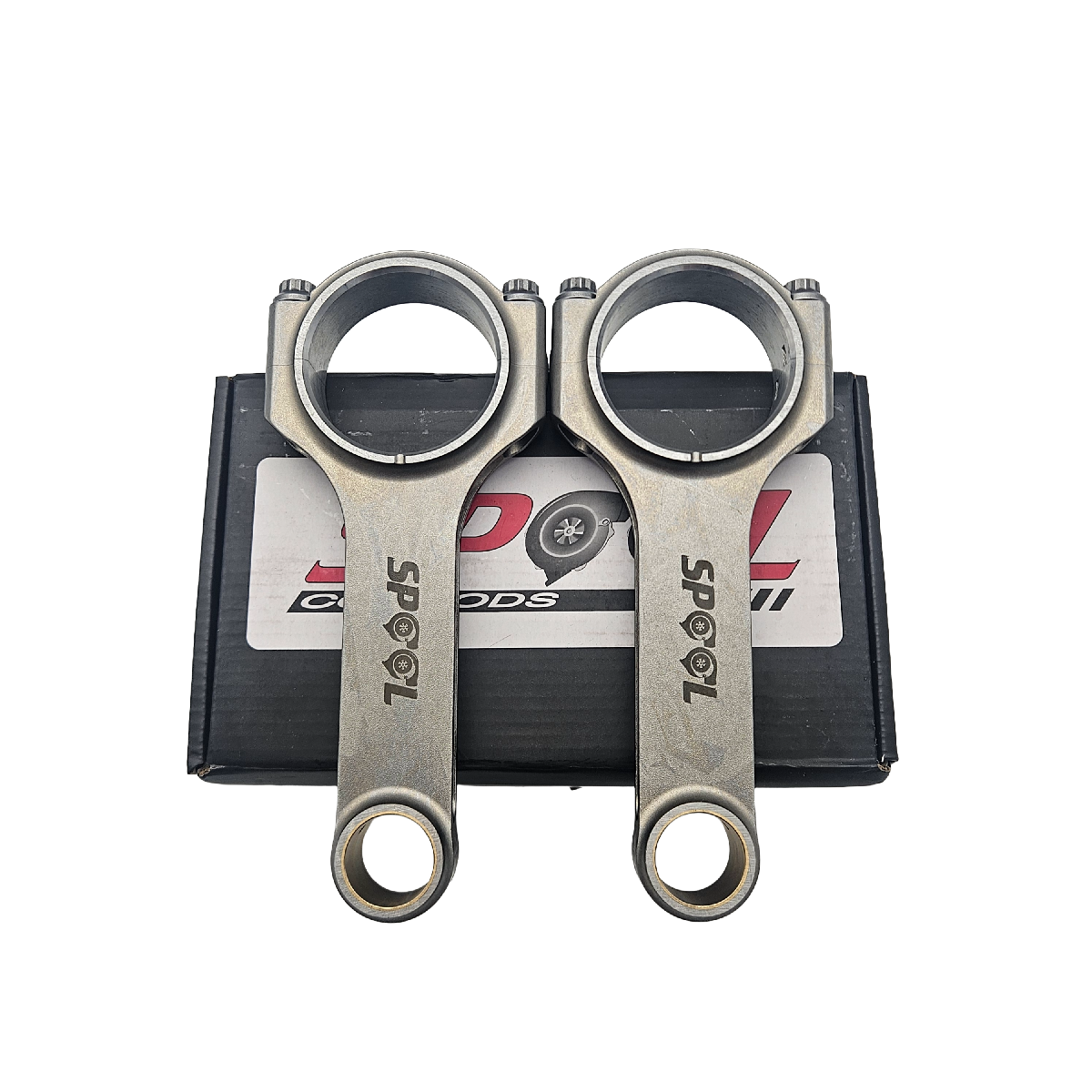

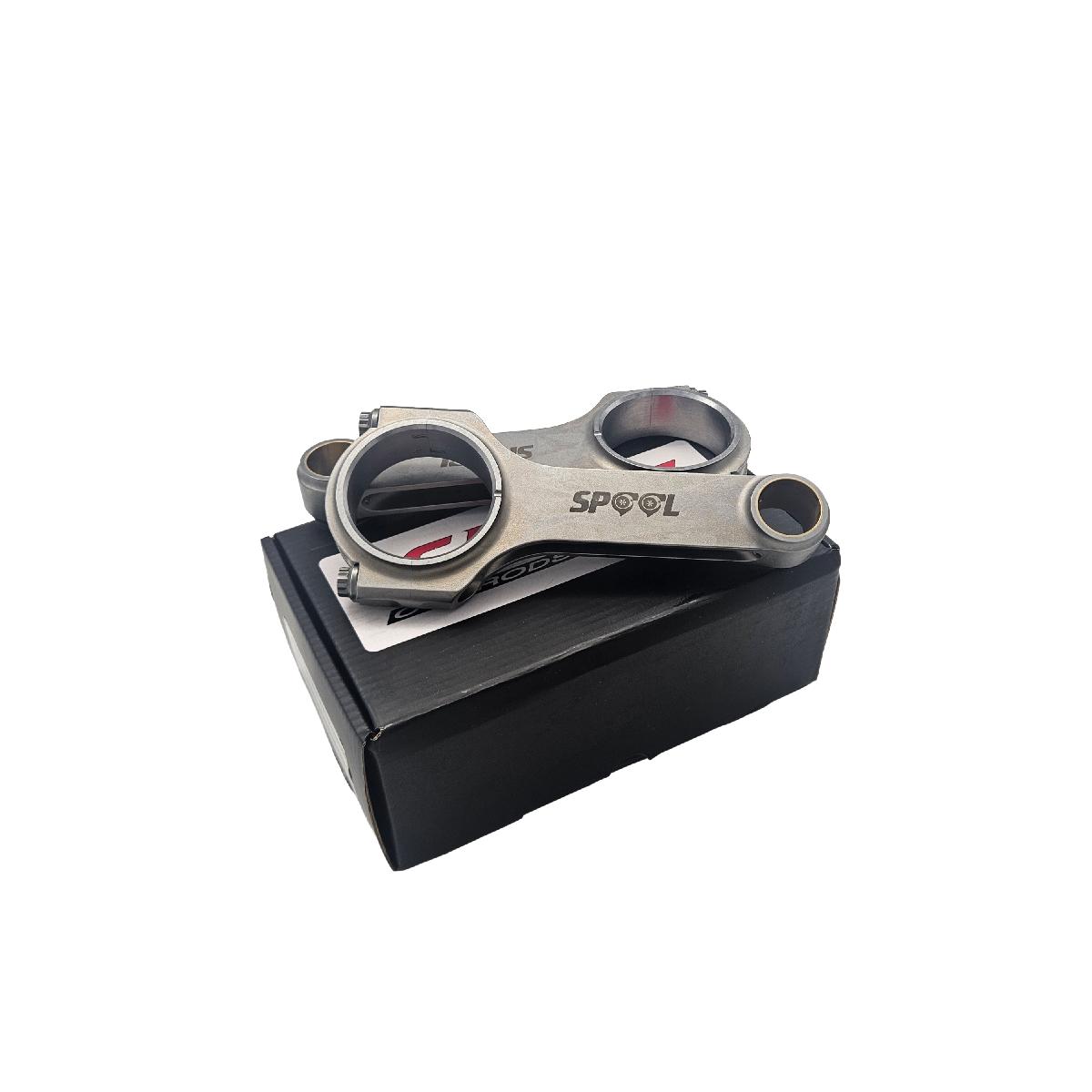

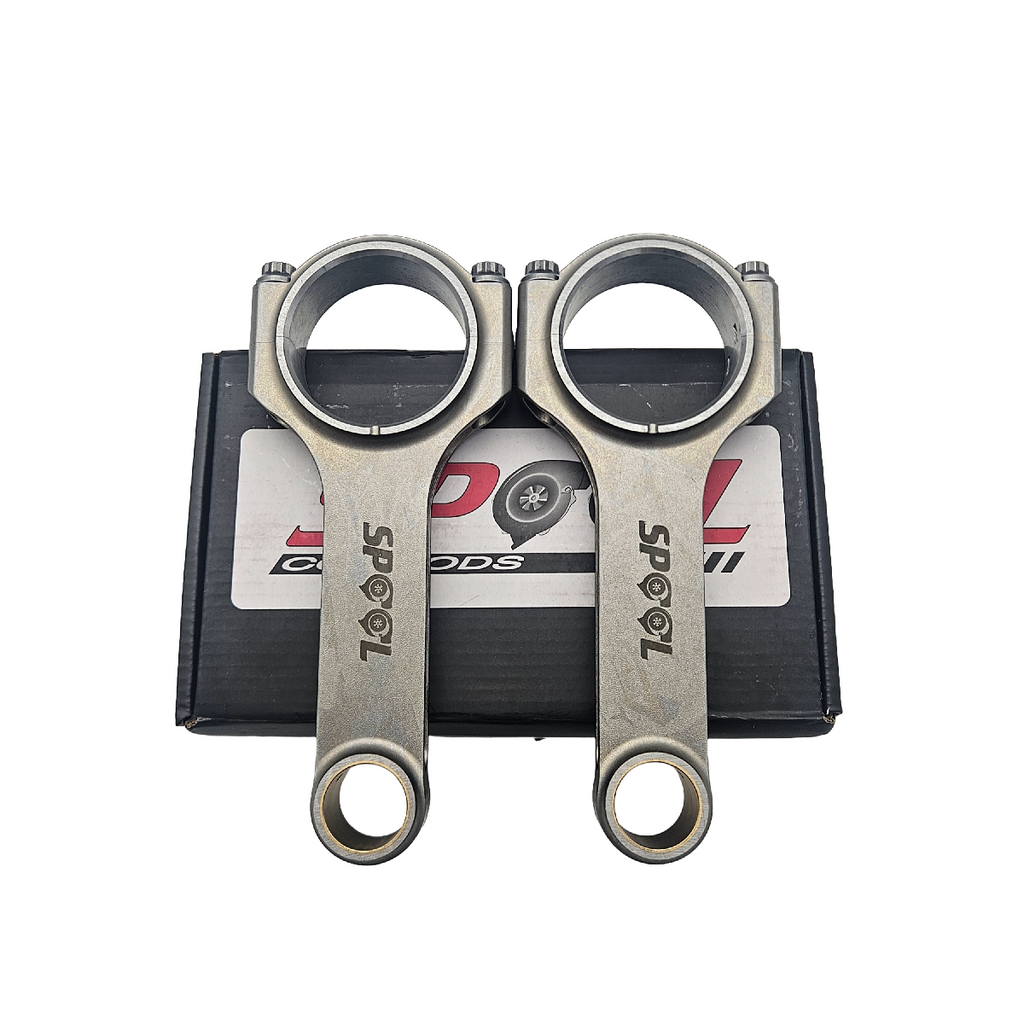

Spool Toyota 1FZ-FE Conrods

$920.00

All Spool Conrods come standard with ARP 2000 Fasteners.

These are a direct fit conrod for all Toyota Landcrusier 1FZ-FE - 4476cc Inline 6 DOHC 4V engines.

These conrods feature:

High tensile 4340 forged steel
2 Piece forging
Hardness of HRC36-42
Dowelled caps for precision alignment
X-RAY & Sonic tested
Quenching and heat treated
Shot peened
100% Magnafluxed
Weight Matched Sets + - 1 gram
Vacuum degassed to remove impurities.

No bearings are included.

We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.

Available options

Conrod Option: Spool H-Beam ARP2000 7/16 Bolt; Spool H-Beam ARP L19 7/16 Bolt

Engine build fitment

1FZ-FE. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
