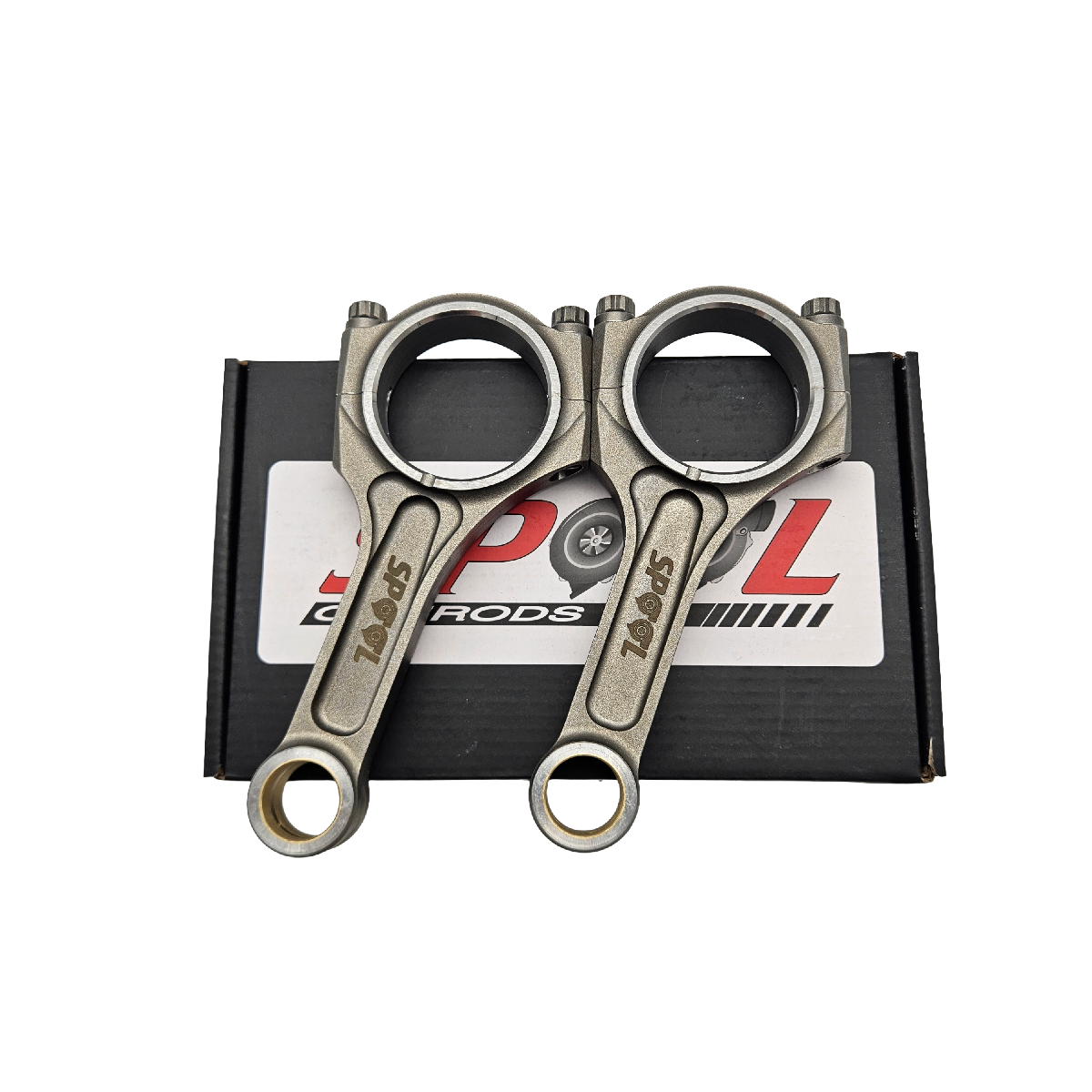

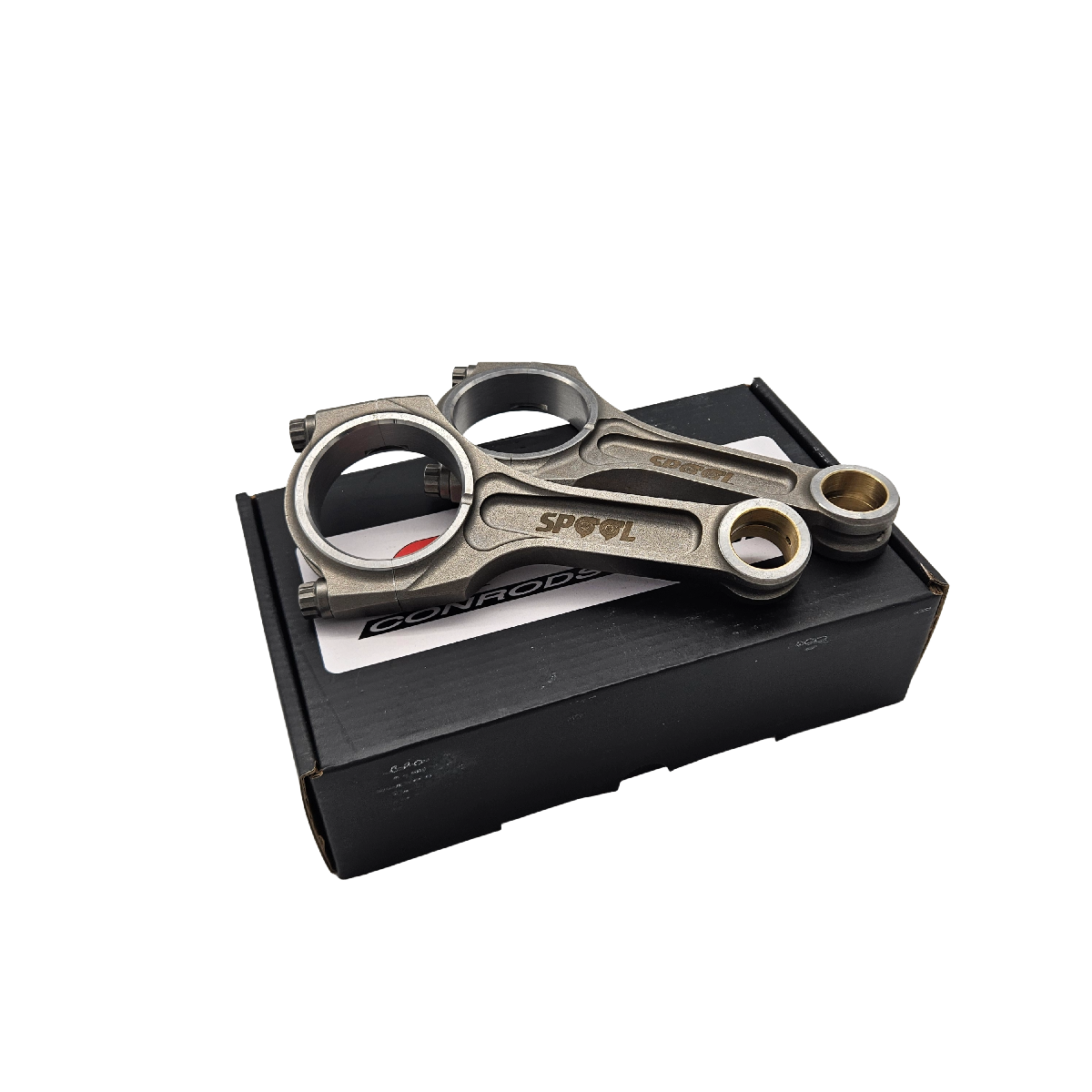

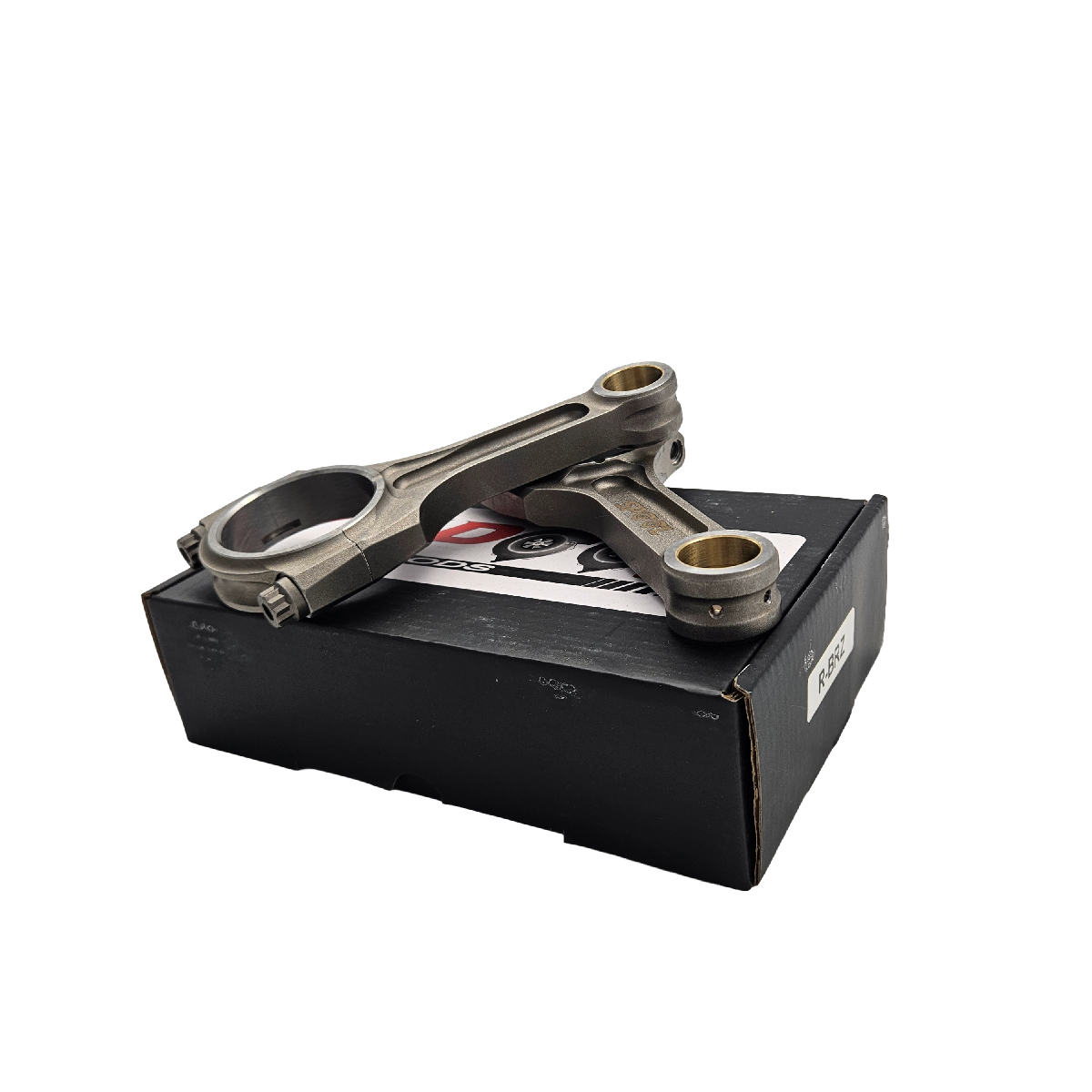

Spool Toyota 86 4U-GSE Conrods

$850.00

All Spool Conrods come standard with ARP 2000 Fasteners.

Spool Forged I Beam Conrods for Toyota 86 4U-GSE Engines

Enhance the performance of your Toyota 86 4U-GSE engine with Spool's premium Forged I Beam Conrods. Crafted from high tensile 4340 forged steel, these conrods are designed to withstand extreme conditions, ensuring durability and reliability. Each set is meticulously engineered to provide precision and strength, making them an ideal choice for high-performance applications.

Key Features:

Constructed from high tensile 4340 forged steel for superior strength
2 Piece forging for enhanced durability
Hardness rated at HRC36-42
Dowelled caps ensure precision alignment
Thoroughly X-RAY & Sonic tested for quality assurance
Quenching and heat treated for optimal performance
Shot peened to improve fatigue strength
100% Magnafluxed to detect any surface cracks
Weight matched sets with a tolerance of +/- 1 gram
Vacuum degassed to eliminate impurities

No bearings are included.

Available options

Conrod Bolts: ARP2000; ARP L19

Engine build fitment

4U-GSE. Match the selected dimensions, engine generation and rotating assembly specification before machining or assembly.

Installation and BBT workshop support

Confirm centre-to-centre length, journal dimensions, pin diameter and bolt clearance. Use the fastener manufacturer’s instructions for lubricant, tightening and stretch measurements.

Built by Boost & Tune is an authorised Spool Imports dealer and can assist with component selection, engine assembly and tuning requirements for your build.
