Turbosmart BlackBox Electronic Wastegate Controller
Turbosmart BlackBox Electronic Wastegate Controller

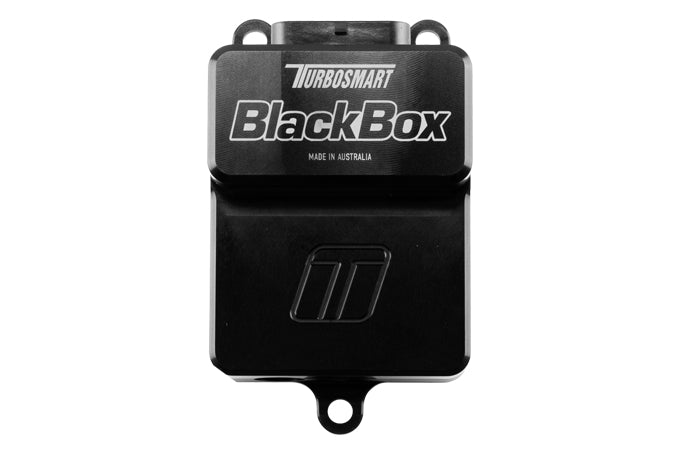

Turbosmart BlackBox Electronic Wastegate Controller is a dedicated dual-channel high-current controller for Turbosmart electronic external wastegates. It translates ECU commands into precise electronic wastegate position control for single- or twin-gate systems.
Control capability
- Two high-current H-bridge outputs
- PWM, 0–5 V position-target and CAN position-demand inputs
- Two 0–5 V wastegate-position inputs
- Two 0–5 V actuator-temperature inputs
- Two frequency inputs for advanced position encoders
- Automatic wastegate position calibration
- Factory-loaded PID calibration for Turbosmart electronic wastegates
- Internal over-current and over-temperature protection
- USB configuration and 34-pin Superseal connector
Compatibility
Designed for Turbosmart electronic StraightGate and electronic GenV poppet-style wastegates, including CompGate40, HyperGate45, ProGate50 and PowerGate60. Confirm that the chosen ECU strategy and wiring arrangement provide the required PWM, analogue or CAN control.
Selection and installation
Confirm the exact Turbosmart part number, controller or ECU compatibility, wiring, plumbing, mounting clearance and calibration requirements before ordering. Professional installation and calibration are recommended.
Built by Boost & Tune is an authorised Turbosmart dealer and can assist with product selection, installation and dyno calibration.
