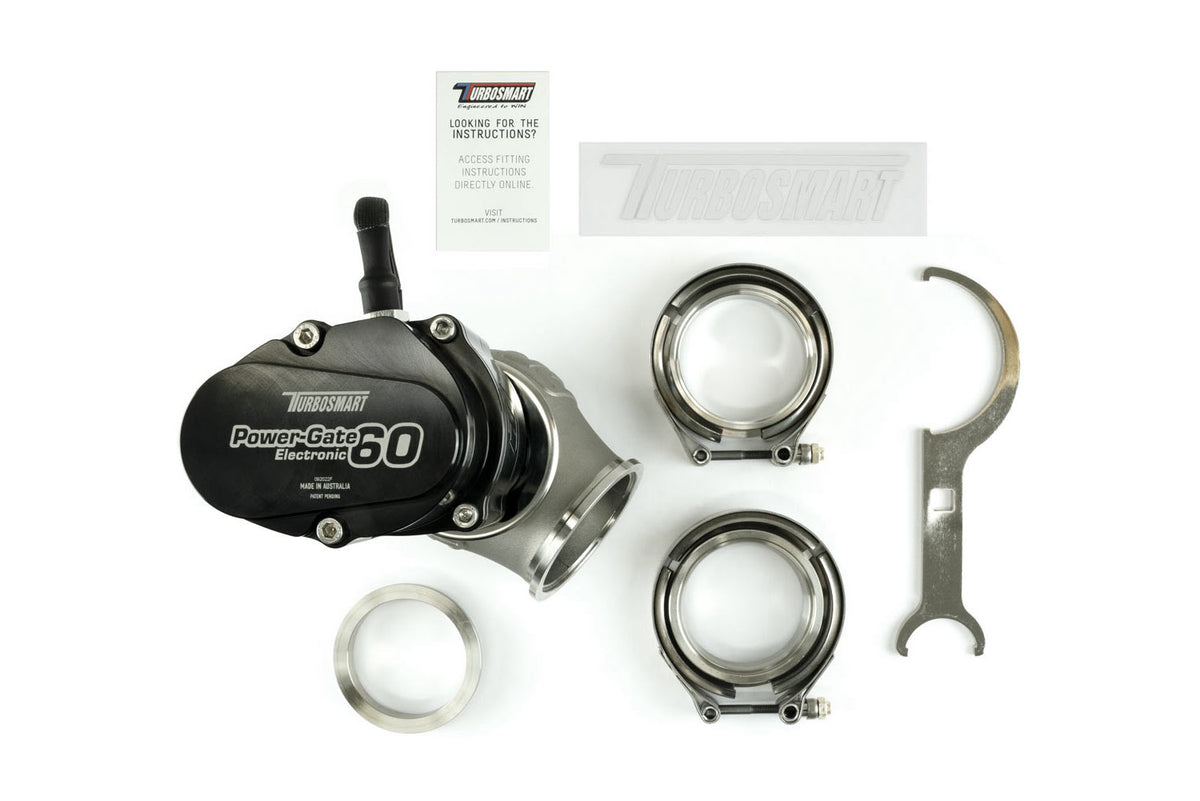

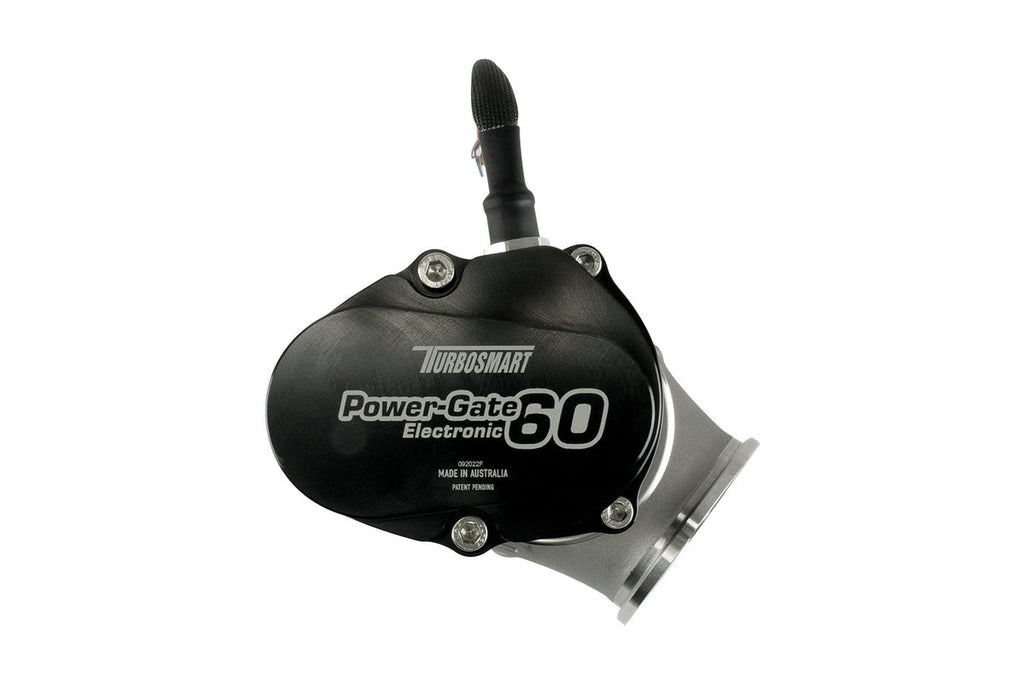

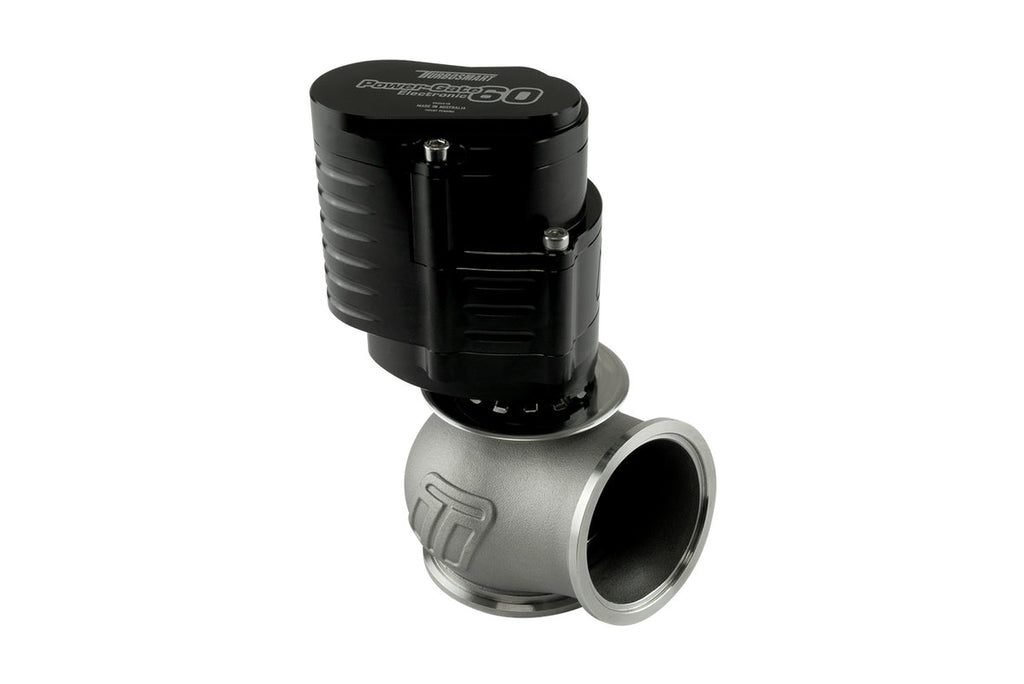

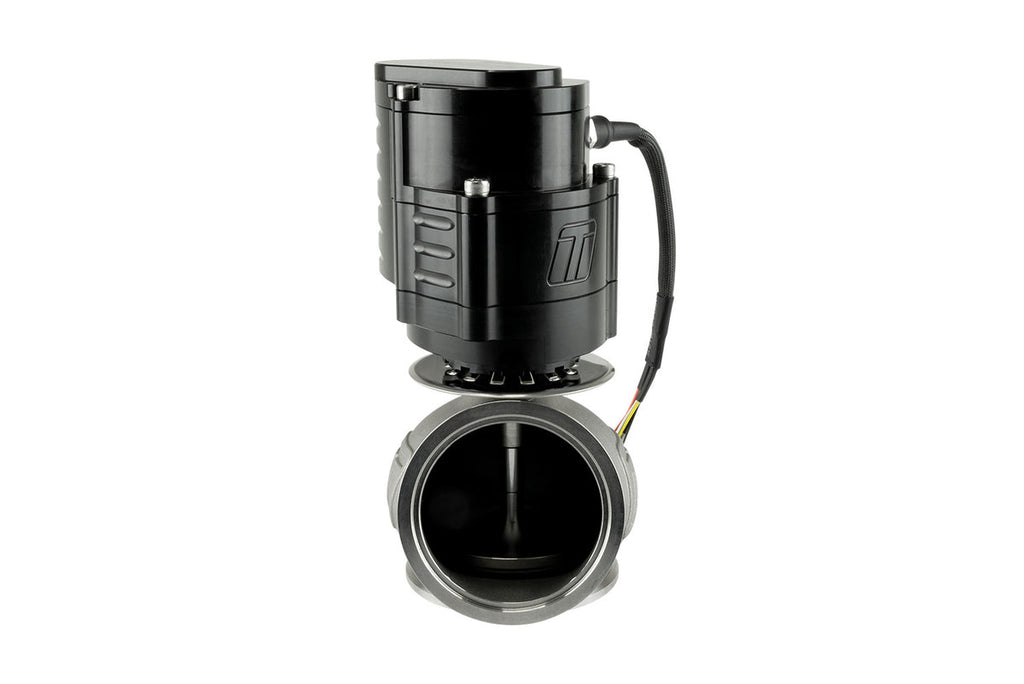

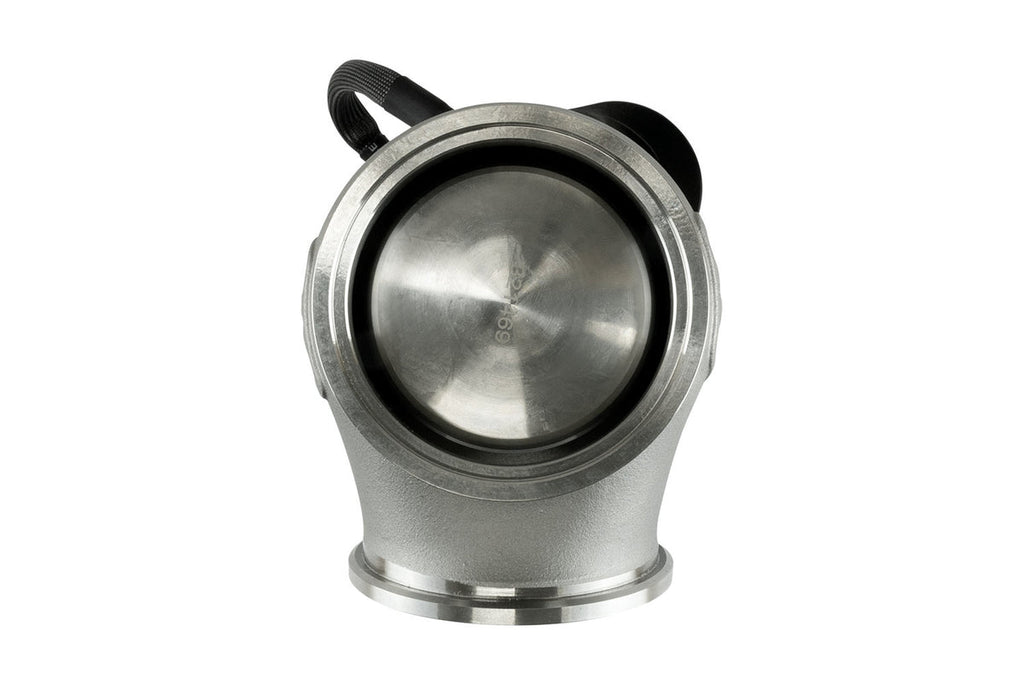

Turbosmart Electronic PowerGate60 Wastegate

Turbosmart GenV Electronic PowerGate60 External Wastegate is a fully electronically actuated 60 mm external wastegate built on the GenV PowerGate60 architecture. Electronic control removes the spring, boost-reference hose and minimum-boost limitations of a conventional pneumatic gate.

Key features

• 60 mm GenV electronic external wastegate
• CFD- and bench-validated high-flow design
• Nitronic 60 valve guide and high-temperature 347 stainless-steel body
• Liquid-cooled electronic actuator
• Strap-type V-band clamps
• User-adjustable actuator position
• 0–5 V analogue valve-position and actuator-temperature sensors
• Digital PWM valve-position sensor

Control requirements

Requires a compatible dual half-bridge electronic wastegate output or a suitable Turbosmart BlackBox controller. Confirm ECU strategy, wiring, cooling circuit, flange geometry and exhaust-manifold priority before ordering.

Selection and installation

Confirm the exact Turbosmart part number, controller or ECU compatibility, wiring, plumbing, mounting clearance and calibration requirements before ordering. Professional installation and calibration are recommended.

Built by Boost & Tune is an authorised Turbosmart dealer and can assist with product selection, installation and dyno calibration.
