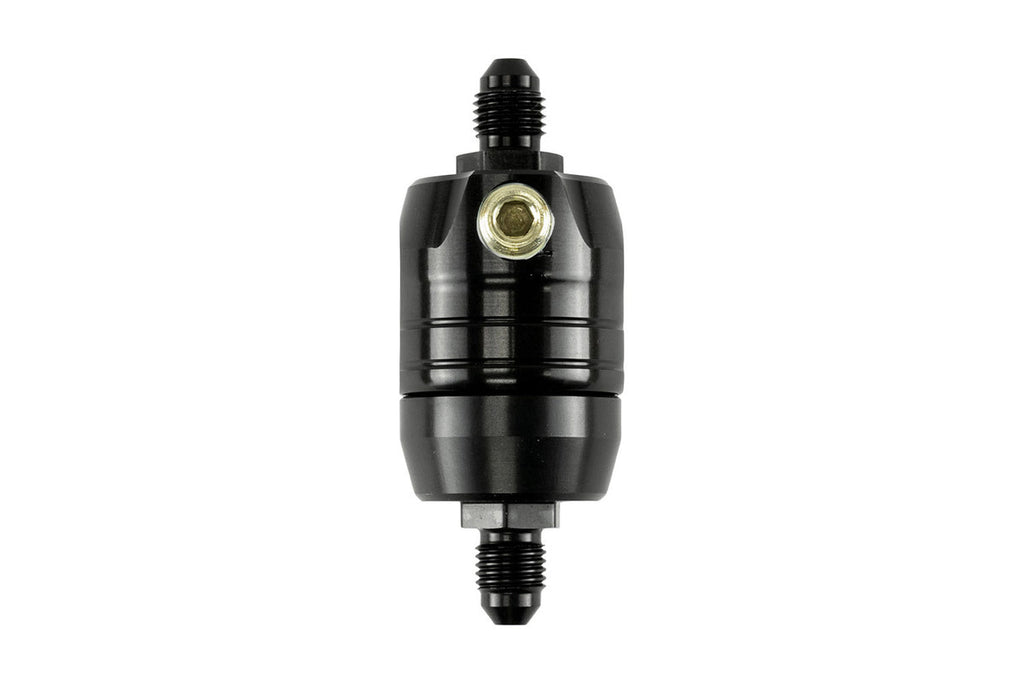

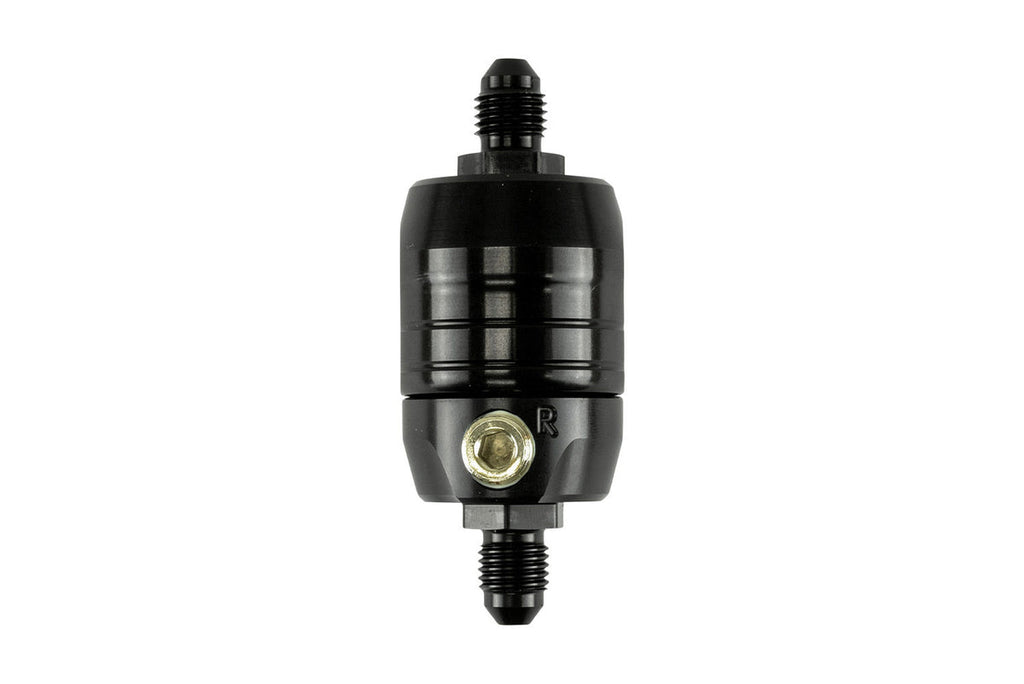

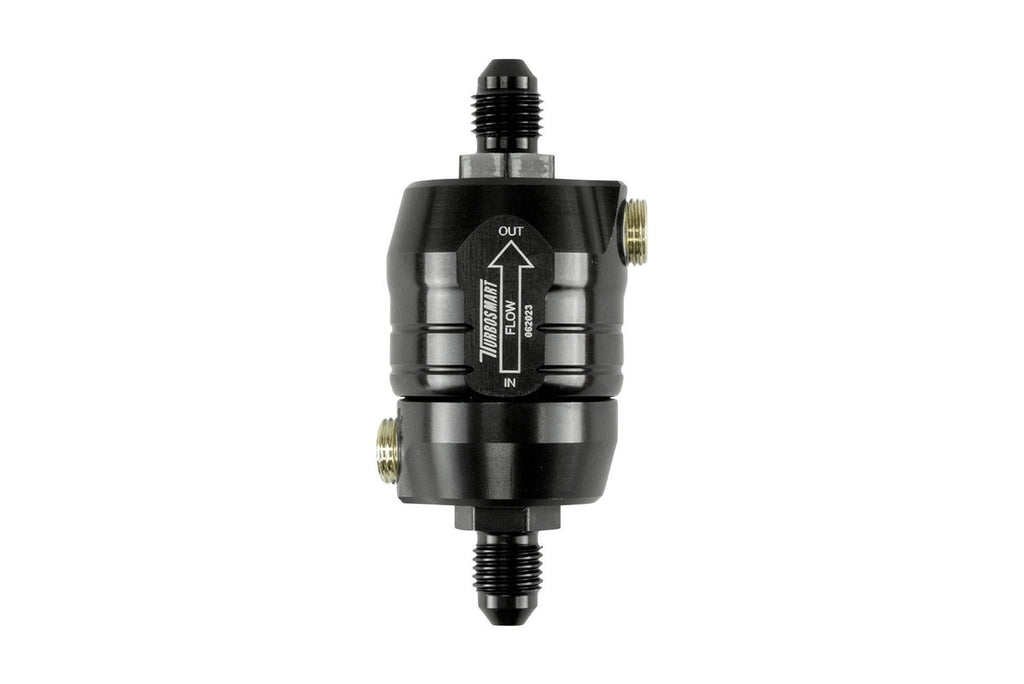

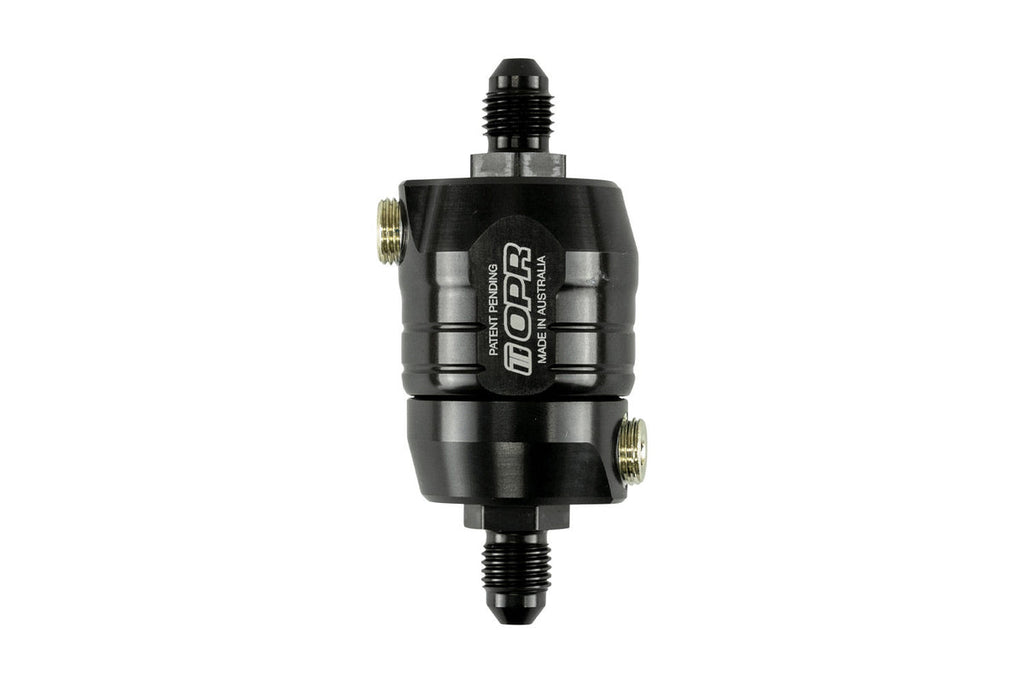

Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator
Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator
Turbosmart ProOPR Rising Rate Turbo Oil Pressure Regulator provides boost-referenced, rising-rate oil-pressure control for demanding turbocharger installations. Its inline returnless layout helps tailor the turbo oil feed without adding a separate return line.
Key features
- Part number: TS-0801-1012
- One 4AN regulated outlet for a single turbocharger oil feed
- 4AN oil inlet
- 1/8 NPT gauge or pressure-sensor port
- 1/8 NPT boost-reference port
- Integrated, serviceable 44-micron stainless-steel filter
- 6262-T6 anodised aluminium body and valve
- Suitable for engine-oil service
Application and setup
Designed for large-frame, high-boost and motorsport turbo systems where controlled oil pressure is required. Correct base pressure and rising-rate behaviour depend on the turbocharger, engine oil pressure, oil viscosity, plumbing and boost-reference signal. Confirm the turbo manufacturer's oil-feed requirements before installation.
What's included
Supplied with the ProOPR assembly, two 1/8 NPT blanking plugs and Turbosmart decal. Professional installation, pressure verification and leak testing are recommended.
Australian designed and manufactured. Built by Boost & Tune is an authorised Turbosmart dealer and can assist with component selection and system planning.
