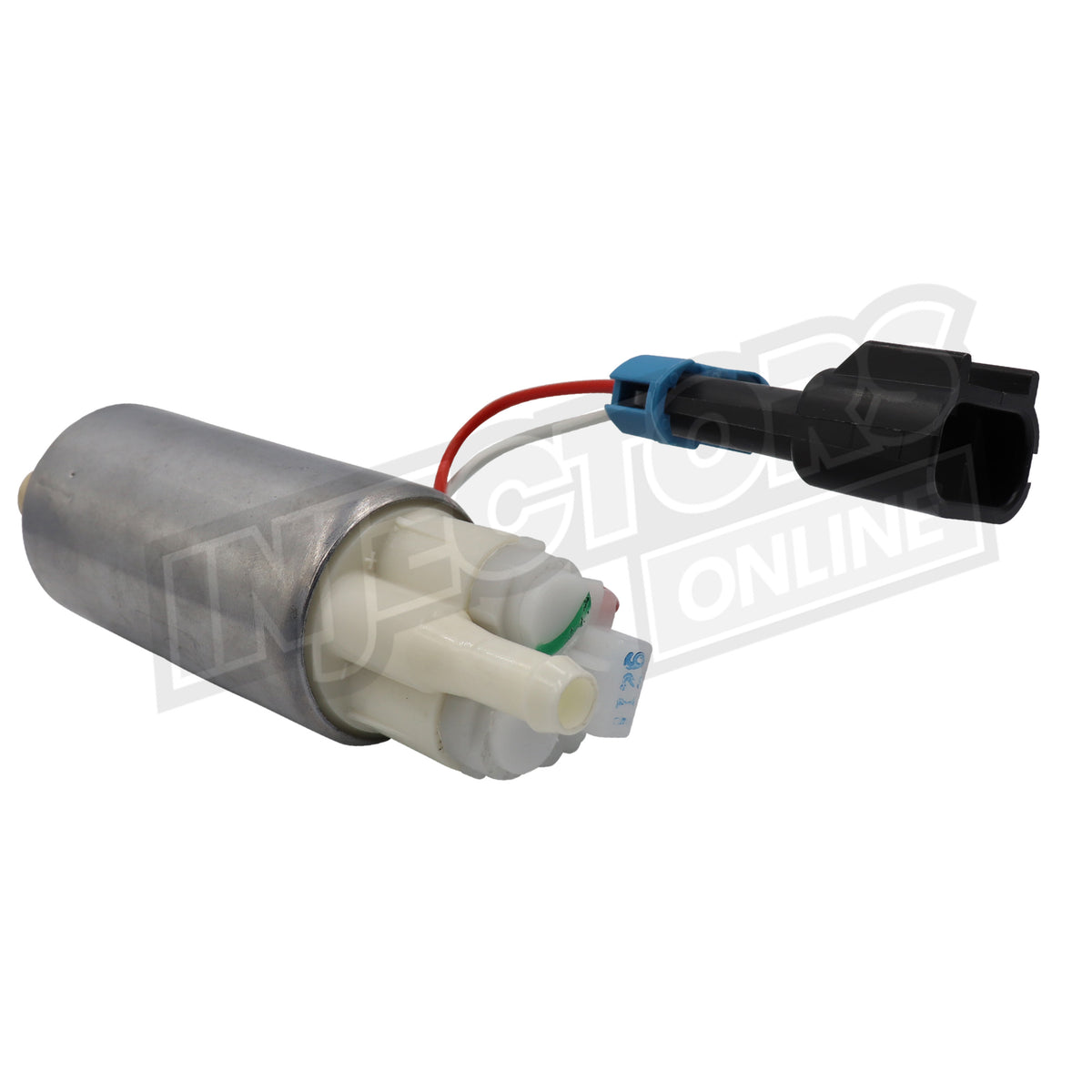

Walbro F10000302 Compact 255 LPH E85 In-Tank Fuel Pump
$199.43
Walbro F10000302 Compact 255 LPH E85 In-Tank Fuel Pump
Compact E85-compatible in-tank pump for applications where a smaller pump body is useful.
Specifications
- Approx. 335 L/h free flow
- Approx. 255 L/h at 13.5 V and 3 bar / 43.5 psi
- 37 mm body diameter
- 5/16 in / 8 mm outlet barb
- Direct strainer inlet
- Fitting kit included
Fitment
Universal component. The compact body can assist in restricted pump modules, but tank, pickup, wiring and fuel-pressure requirements must still be verified.
Fuel-system design
Fuel-pump flow changes substantially with system pressure and voltage. Size the pump using the actual base pressure, boost-referenced pressure where applicable, fuel type and expected engine demand rather than free-flow numbers alone.
Installation requirements
Verify wiring/current capacity, hose and seal fuel compatibility, filtration, pickup arrangement, regulator capacity and tank/external mounting requirements before installation.
