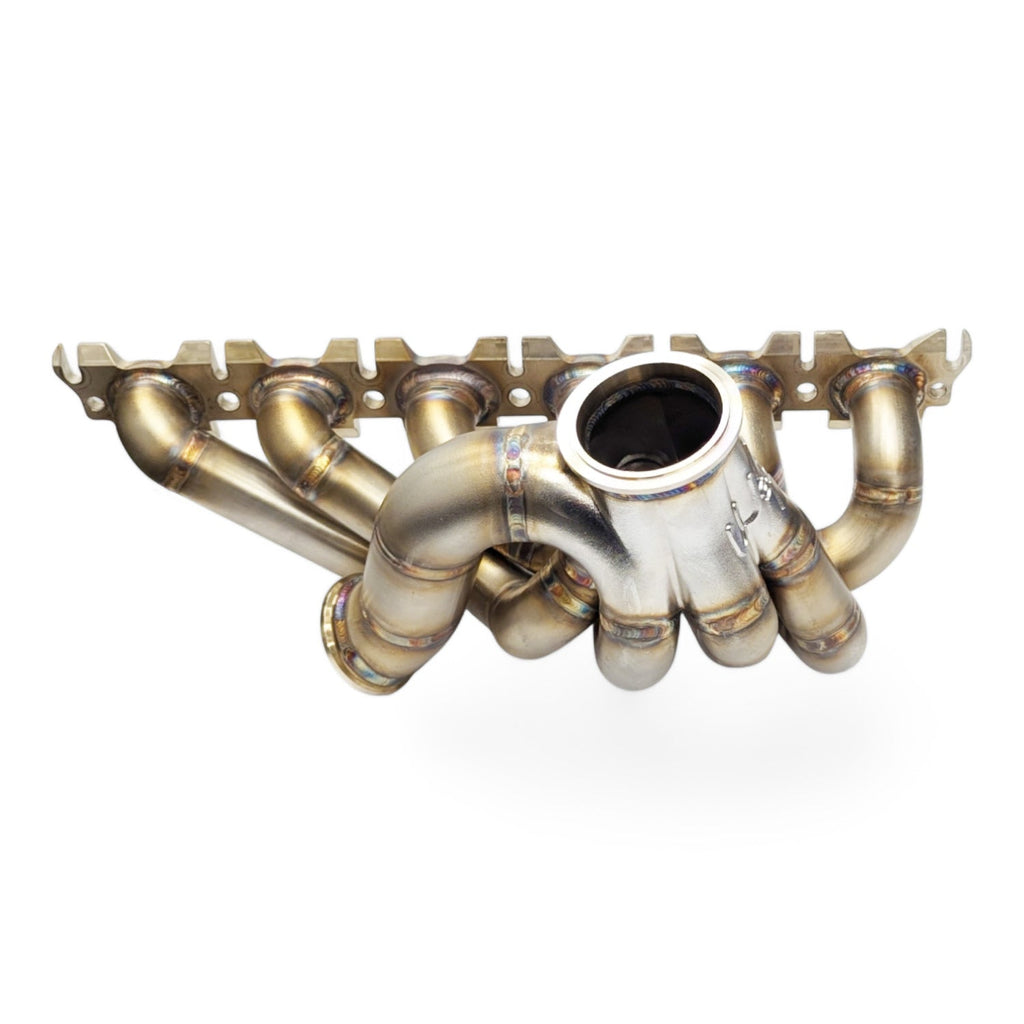

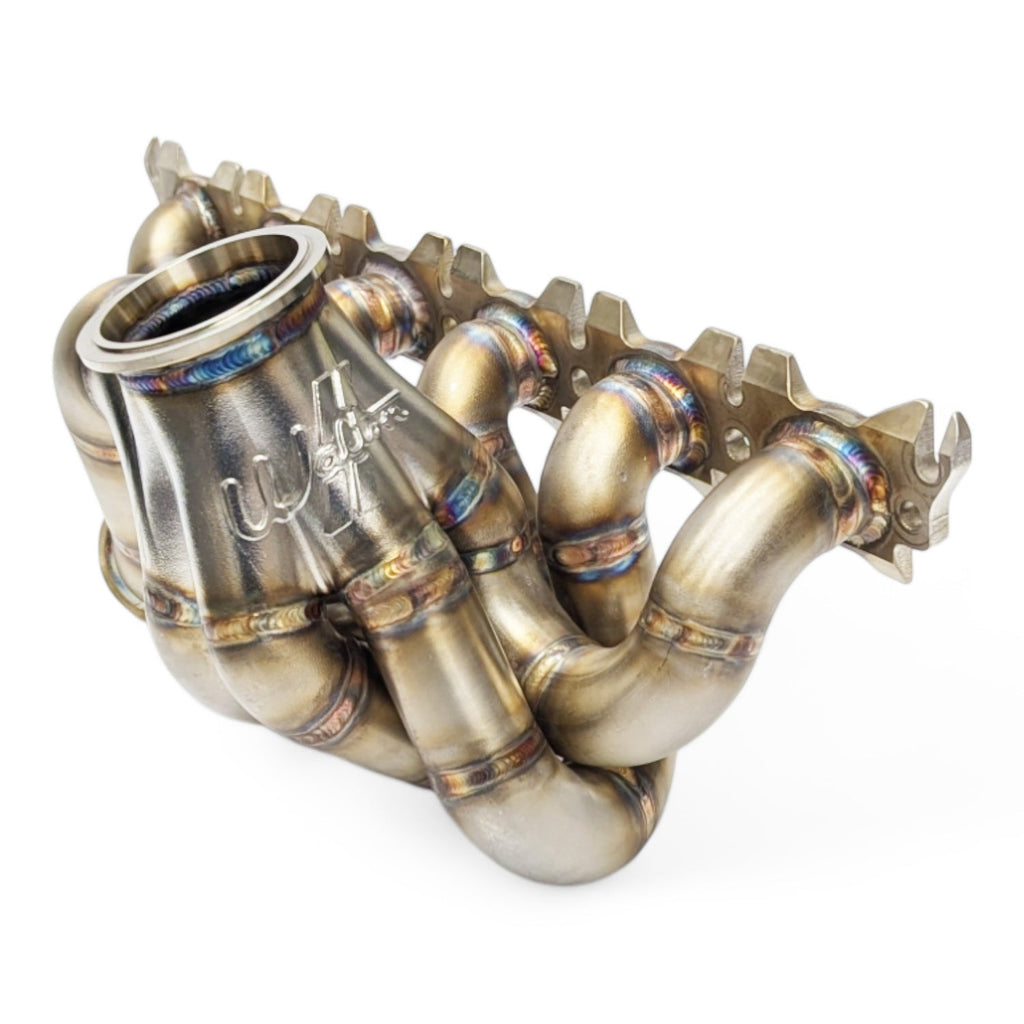

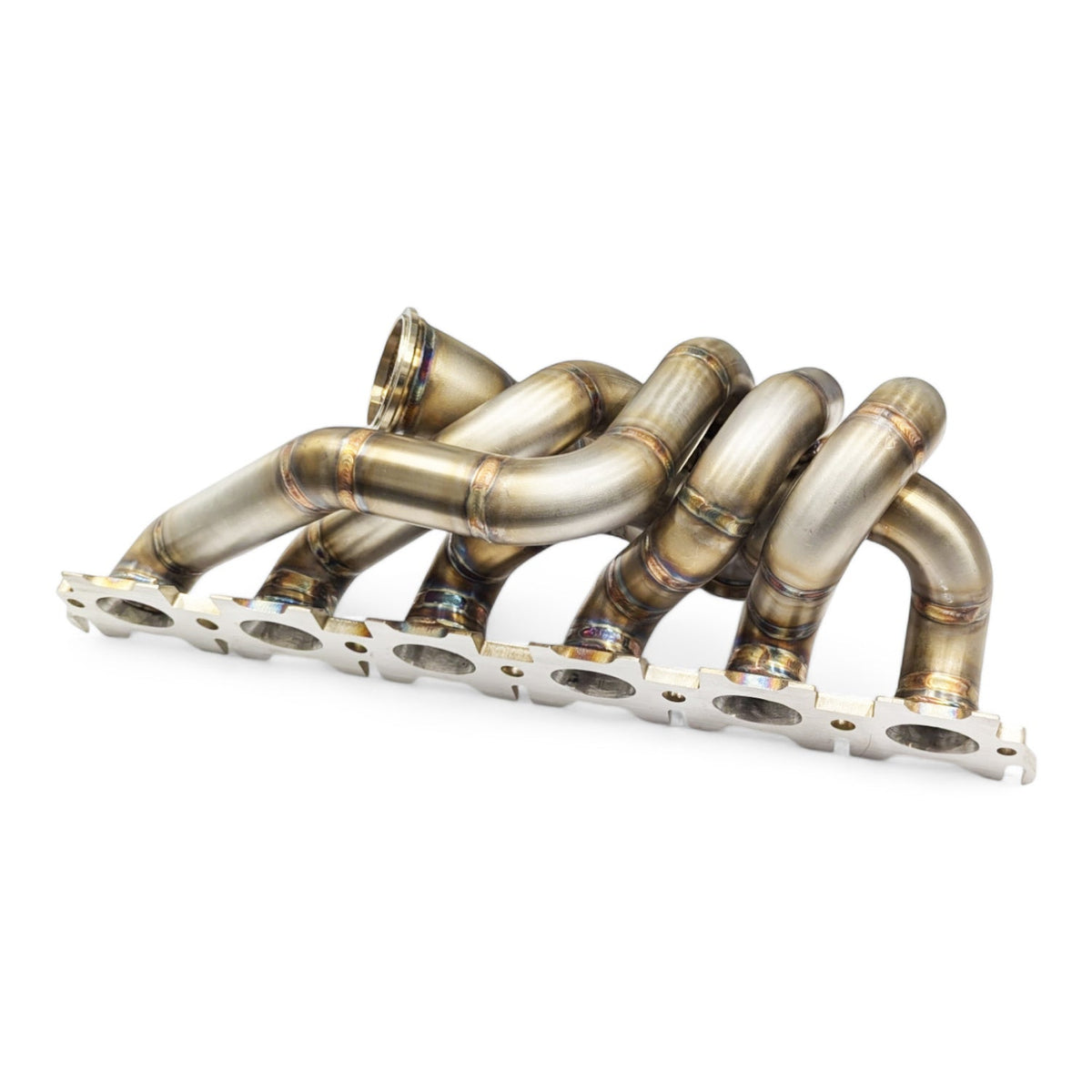

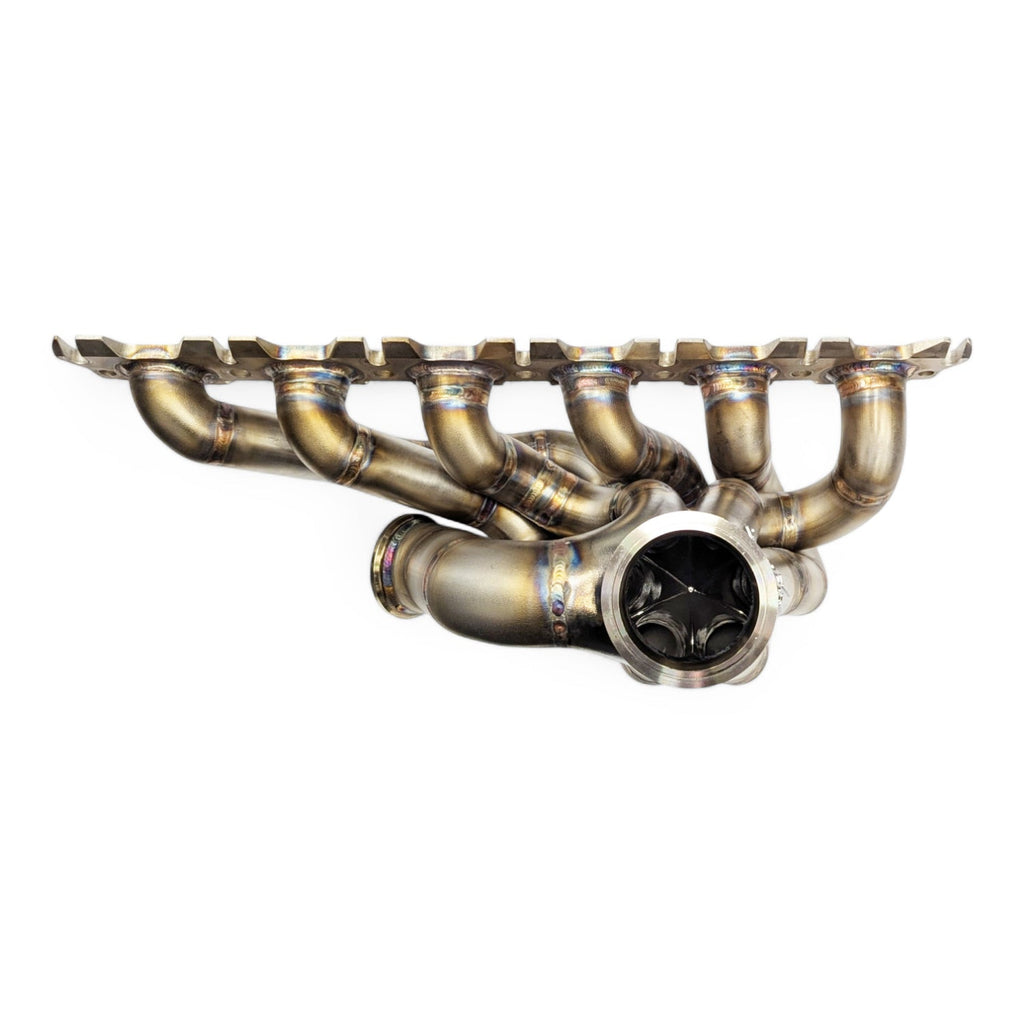

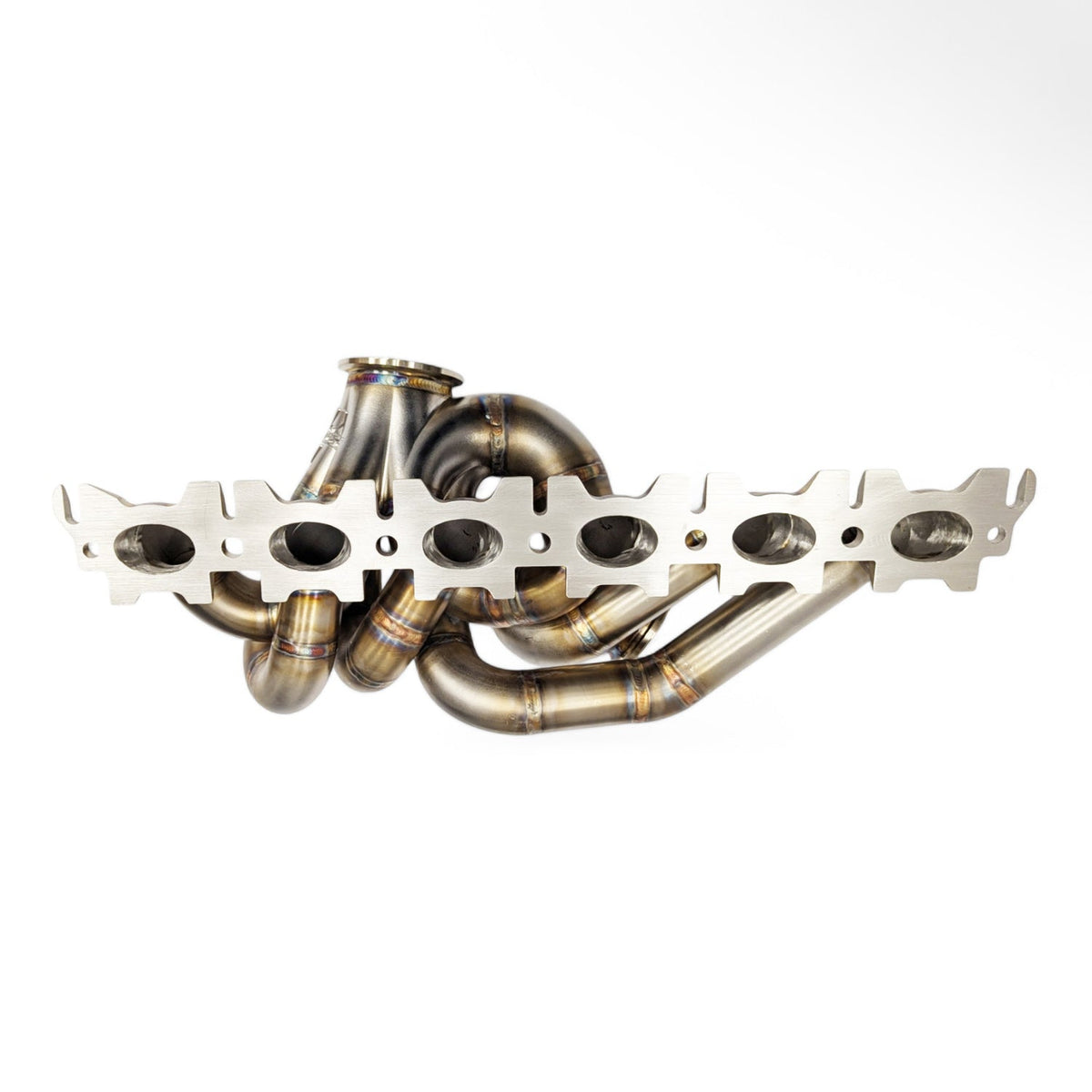

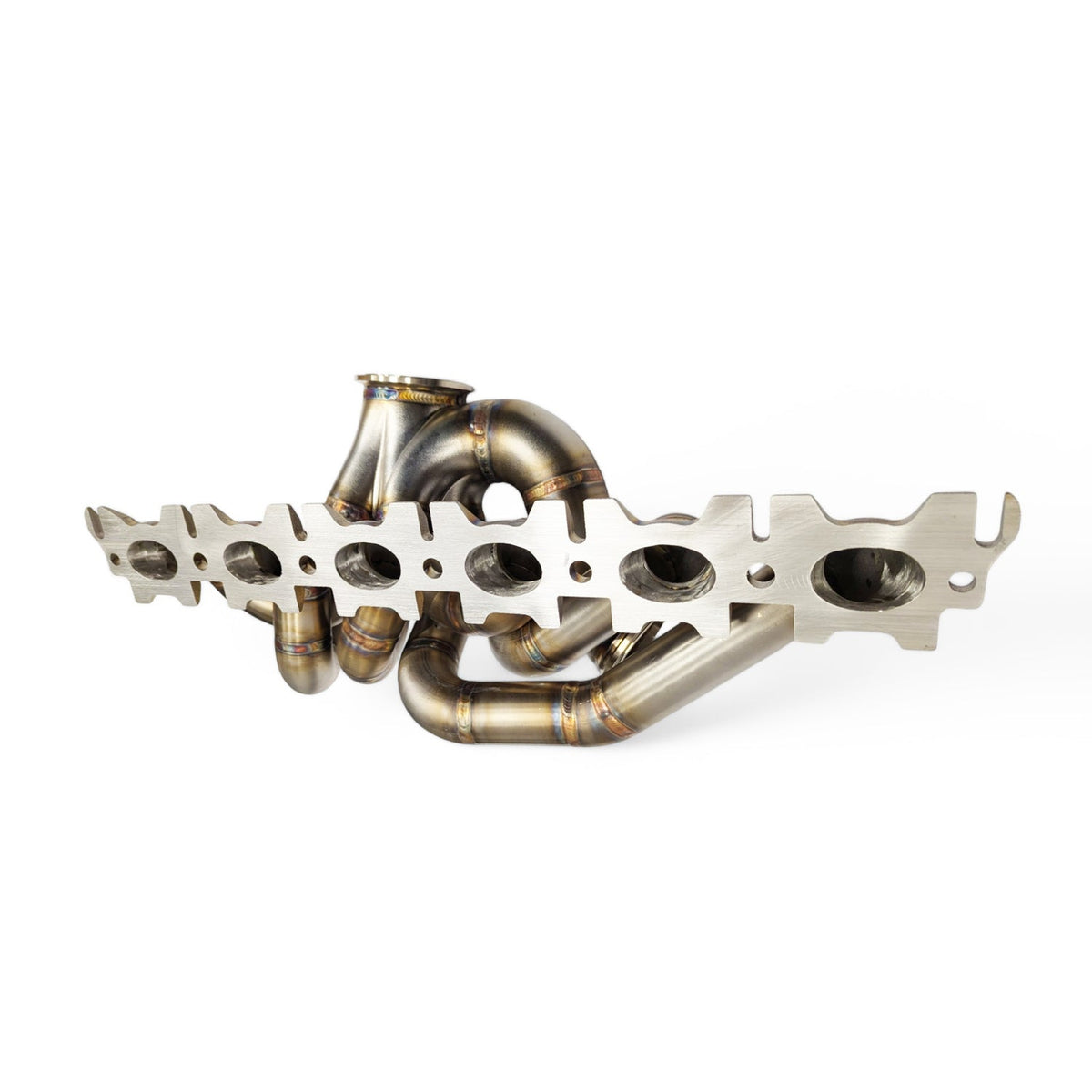

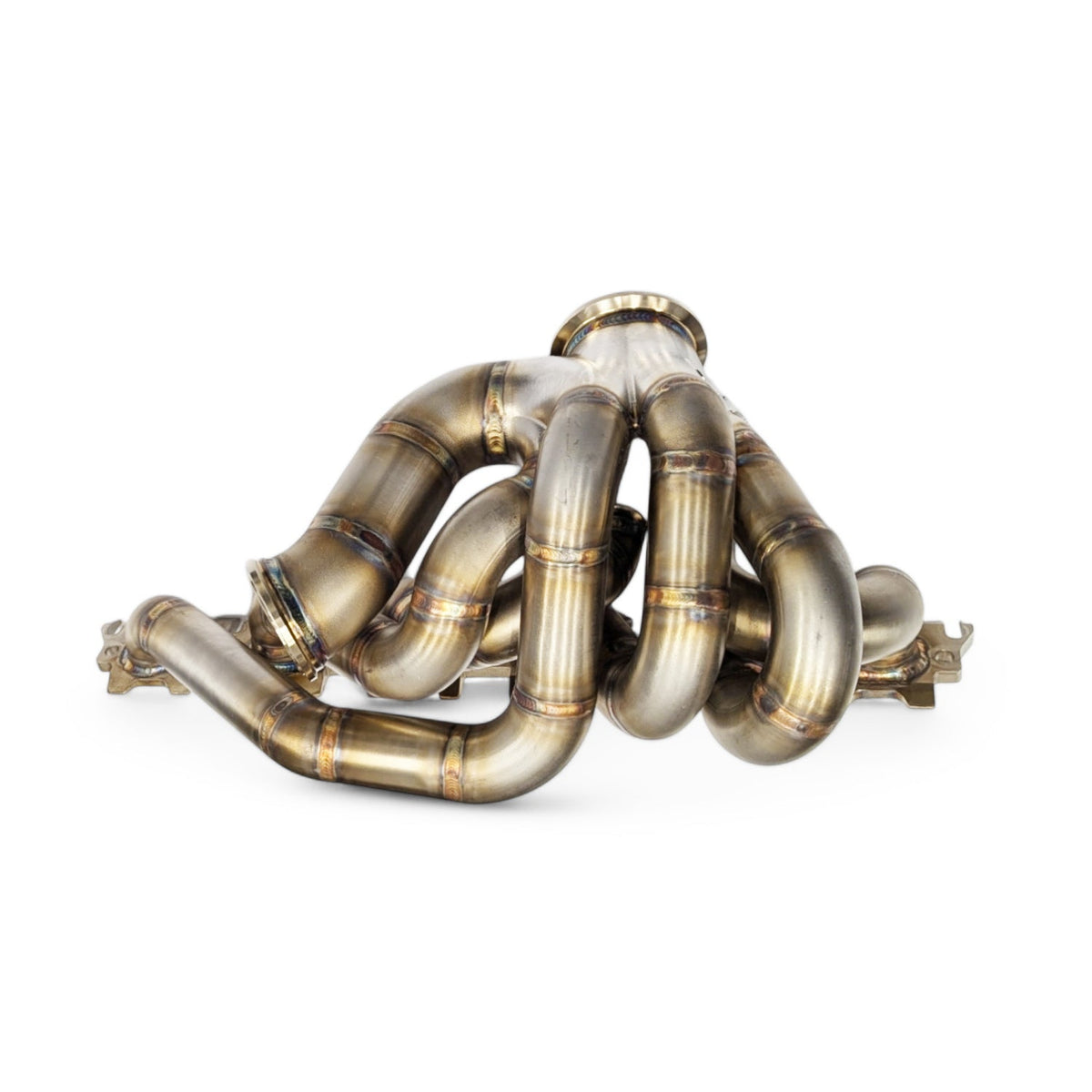

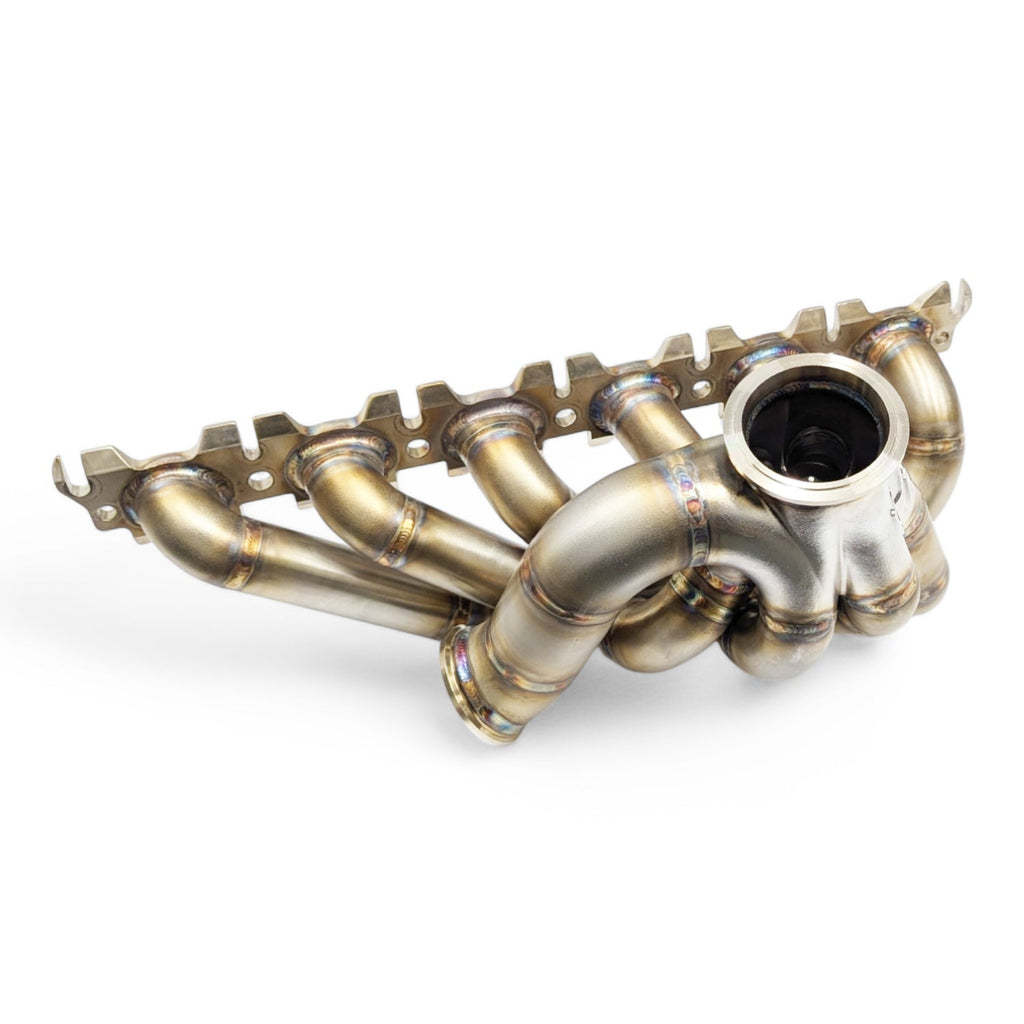

Walton Motorsport BMW B58 Gen1 Type B High-Mount Turbo Manifold

$4,065.99

Turbo Inlet Flange

Wastegate PortTurbosmart Straightgate 50mm (Flange Fitted)

Overview

Walton Motorsport BMW B58 Gen1 Type B High-Mount Turbo Manifold is Walton's large-frame single-turbo manifold for Gen1 B58 builds where outright airflow and turbocharger capacity take priority over the smaller, response-focused Type A package. The high-mount layout provides additional space and service access for larger turbocharger combinations.

Key Features

Designed for larger-frame B58 single-turbo combinations, generally beyond the G35 / 6262-size range.
High-mount turbo position for larger turbo packaging and improved service access.
304-grade stainless-steel construction.
Port-matched runner construction: runners pass through the cylinder-head flange and are TIG-welded from both sides before final blending.
Walton proprietary cast merge collector engineered for exhaust flow and wastegate priority.
Turbosmart StraightGate50 wastegate-flange configuration.
Manufactured in the United Kingdom.
Walton Motorsport lifetime manifold warranty, subject to current manufacturer terms.

Supported Package Components

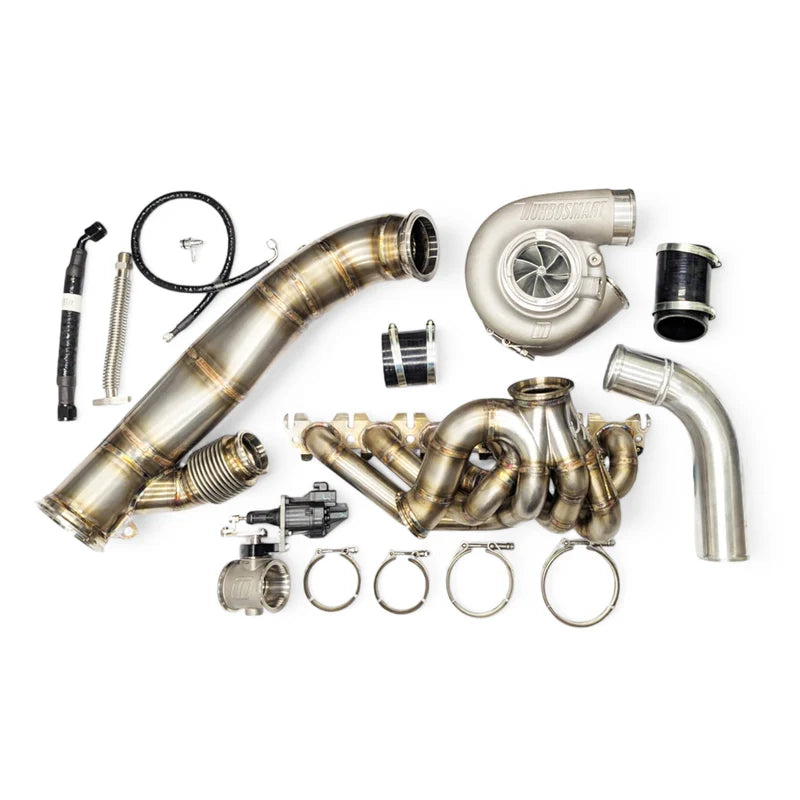

Walton currently offers supporting hardware around this manifold including large-frame turbocharger choices, downpipe options, StraightGate50 hardware, turbo oil-line components and a Type B boost pipe. The exact final package depends on turbocharger and vehicle specification, and custom fabrication may still be required.

Vehicle Fitment

BMW 1 Series F20/F21 LCI — B58 Gen1
BMW 2 Series F22/F23 LCI — B58 Gen1
BMW 3 Series F30/F31 LCI — B58 Gen1
BMW 4 Series F32/F33/F36 LCI — B58 Gen1

Important: Walton currently states that the Gen1 Type B manifold does not fit BMW 5 Series applications. Confirm chassis packaging, turbocharger, steering and exhaust layout before ordering.

Available Options

Turbo Inlet Flange

Turbosmart V-Band (Large Frame C Turbos) / HPT Frame 3 V-Band
Precision Large Frame V-Band & Garrett V-Band (G40/G42/G45 Turbos)
Borg Warner EFR V-Band
Garrett V-Band (G25/G30/G35) / Turbosmart V-Band (Frame B Turbos) / HPT Frame 2
Precision V-Band (T3 Frame THV Housings)
T3 Single Scroll
T4 Single Scroll

Wastegate Port

Turbosmart Straightgate 50mm (Flange Fitted)

Lead Time

Built to order. Walton currently advises a typical manifold build time of approximately 2–4 weeks. Production timing is indicative and can change with supplier workload.

Installation & Calibration

This is the foundation of a custom single-turbo conversion rather than a complete bolt-on system. Professional installation, exhaust / intake fabrication where required and ECU calibration are recommended.
