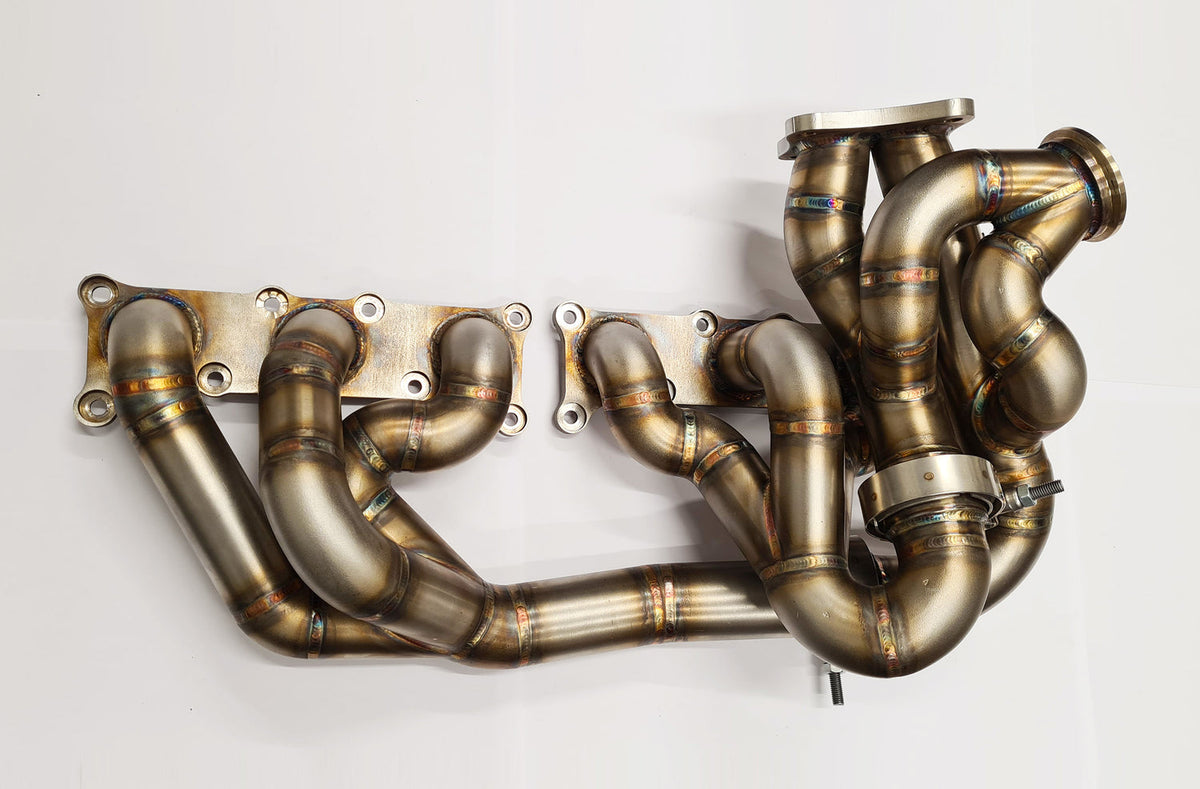

Walton Motorsport BMW N54 RHD Single-Turbo Manifold

$4,065.99

Overview

Walton Motorsport BMW N54 RHD Single-Turbo Manifold is designed specifically around right-hand-drive N54 engine-bay and steering packaging. It replaces the factory twin-turbo arrangement with a single Garrett V-Band turbo system.

Key Features

RHD-specific N54 manifold packaging.
Designed for Garrett GTX35 / G-Series V-Band turbochargers up to approximately G35-1050 size.
50 mm external-wastegate port designed around the Turbosmart ProGate50.
304-grade stainless-steel construction.
Port-matched runner construction with both-side TIG welding through the cylinder-head flange.
Walton proprietary cast merge collector engineered for stable wastegate priority.
Designed for use with OEM BMW head studs and gaskets.
Manufactured in the United Kingdom.
Walton Motorsport lifetime manifold warranty, subject to current manufacturer terms.

Supporting Conversion Components

Walton currently offers supporting ProGate50, 3.5-inch downpipe, screamer / wastegate dump pipe and V-Band exhaust hardware. Turbocharger and turbo-connection components are selected separately.

Vehicle Fitment

BMW E82/E88 N54 — right-hand drive
BMW E90/E91/E92/E93 N54 — right-hand drive
BMW E89 Z4 N54 — right-hand drive

Walton also lists additional RHD N54 chassis including E60/E61, E71 and F01. Those applications are not automatically added to BBT vehicle routes where an exact current finder path is unavailable; contact BBT for fitment review.

Available Options

Turbo Inlet Flange

Garrett V-Band (GTX35/G-Series)

Wastegate Port

50mm Port Size (Flange Fitted)

Lead Time

Built to order. Walton currently advises a typical manifold build time of approximately 2–4 weeks. Production timing is indicative and can change with supplier workload.

Installation & Calibration

Converting an N54 from factory twins to a single turbo is a substantial mechanical installation involving turbocharger, exhaust, wastegate, oil / coolant and engine-management systems. Professional installation and tuning are strongly recommended.
