Name: Crow Cams Nissan Patrol TB42/TB45 6cyl — 442846
Brand: Crow Cams
SKU: '442846
Price: 493.16 AUD
Availability: InStock

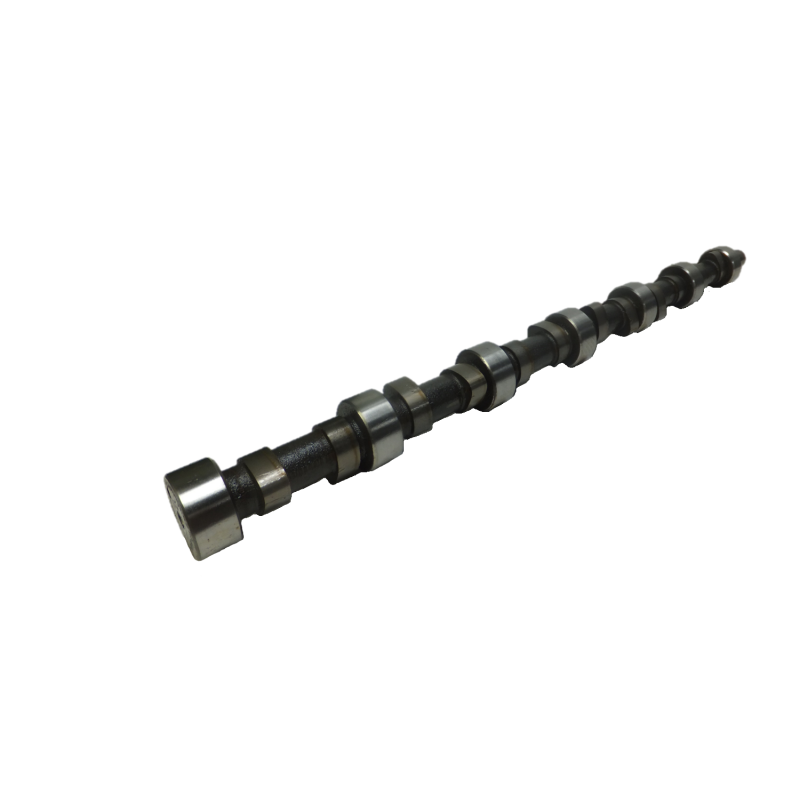

Nissan Patrol TB42/TB45 6cyl — Crow Cams 442846

Crow Cams Nissan Patrol TB42/TB45 6cyl — 442846

$493.16

Nissan Patrol TB42/TB45 6cyl — 442846

A mild towing profile. Crow excludes EFI use for this 109-degree lobe-separation version and identifies 442846-13 for the EFI application.

Camshaft specifications

Supplier part number	442846
Supplied position	Single camshaft — inlet and exhaust lobes
Operating range	2200 - 4000 rpm
Advertised duration — inlet / exhaust	267° / 281°
Duration at 0.050 inch — inlet / exhaust	218° / 225°
Valve lift — inlet / exhaust	.409" / .412"
Hot valve lash — inlet / exhaust	.016" / .018"
Rocker ratio used for listed valve lift	1.5:1
Lobe separation angle	109°

Supplied contents

One camshaft. Springs, retainers, installation hardware are separate.

Application and fitting

Replacement or upgraded springs are available. Crow lists 5840-12 springs for the TB42/TB45 family; confirm the pressure and installed height required by the chosen profile.

For the supplier-listed EFI towing alternative, see Crow Cams Nissan Patrol TB42/TB45 6cyl — 442846-13.

Supporting parts

The following are separate supplier-listed components. BBT can check which are required for your installation.

5840-12 — Dual Valve Springs - Nissan 6cyl
ZDDP-2 — Dura Cam ZDDP Oil Additive - 2 pack

Contact BBT for parts without a product link.

BBT installation support

Have the installer verify cam timing, piston-to-valve clearance, spring installed height, coil-bind and retainer-to-seal clearance on the actual engine. Confirm the lash or preload procedure for the supplied cam and follow its lubrication and run-in instructions. BBT can assist with part selection, installation and calibration.
