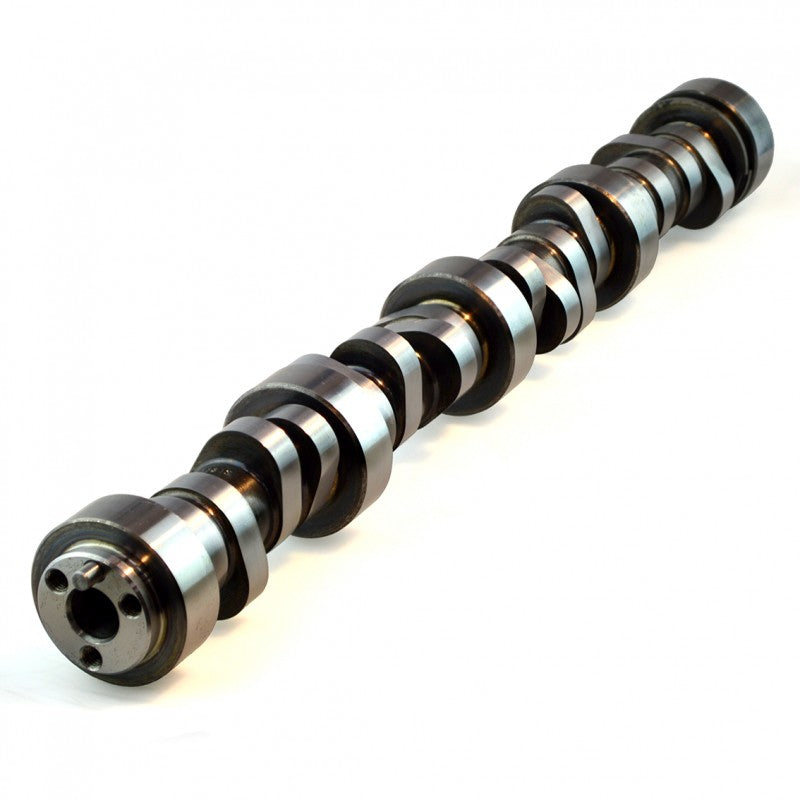

Holden/Chev LS Custom is a supplier-configured camshaft offering. The final grind, core, valvetrain and engine application must be agreed before production or purchase.
Product specifications
| Supplier part number | 871950 |
|---|---|
| Brand | Crow Cams |
| Product category | Camshafts |
Technical and supplier information
- Fill in our Cam Recommendation Form to help select the right profile for our application
- Please fill in our Cam Recommendation Form and we will get back to you with a suitable grind as soon as possible If you have already received a Recommendation or you have particular specs you want to match, please email us with the detailsPlease be aware:- These cams will be ground to order so please allow at least 2 weeks lead time.- Upfront payment of the camshaft is required before any custom jobs are produced
Application and fitment
Applicable BBT GM LS / engine-family routes shown for this product. Confirm the exact engine code and build before ordering. Supplier part number: 871950
Supplied contents
One camshaft for the specified position/profile. Matching camshafts, lifters, springs, retainers and installation hardware are not included unless explicitly stated for this SKU.
Installation and configuration
- Confirm the camshaft part number, engine generation, camshaft drive, trigger arrangement and cylinder-head compatibility before installation.
- Degree the camshaft where required and measure piston-to-valve, valve-to-valve, spring coil-bind and retainer-to-seal clearances on the actual engine.
- Check lifter type, hydraulic preload or mechanical lash, rocker geometry, pushrod length where applicable and the required spring/retainer package.
- An active-AFM/DOD engine requires the correct mechanical conversion before a non-AFM camshaft is fitted; update the ECU calibration as required.
- Agree the final cam card, base circle, core condition, intended RPM and matching valvetrain specification before the custom order is accepted.
Recommended associated products
Only purchase components required for your actual engine configuration. Included kit components are already accounted for; separately listed alternatives must not be added cumulatively.
- Required: Crow Cams / Genuine GM L76 DOD Delete Kit — A suitable mechanical AFM/DOD delete is required before fitting a non-AFM camshaft to an active-AFM L76/L77. The ECU calibration must also be updated.
- Recommended: Crow Cams Genuine GM LS7 Lifter and Guide Kit — Hydraulic lifters and guides for a compatible non-AFM valve train or correctly completed AFM-delete conversion. Do not add when already supplied in an overhaul kit.
- Recommended: Crow Cams Genuine GM LS Cam Retaining Plate Kit — Recommended cam-retaining-plate and fastener kit when the existing plate or fasteners require replacement.
- Recommended: Crow Cams Genuine GM LS Timing Cover Gasket Kit — Recommended front-cover gasket and seal service components during camshaft installation.
- Optional: BTR Chromoly Pushrod Set | 7.400in x 5/16in | GM LS — 7.400-inch chromoly pushrod set. Purchase only if measured valve-train geometry confirms this exact length and diameter.
- Optional: Crow Cams Genuine GM LS High-Pressure Oil Pump Kit — High-pressure oil-pump package for a compatible non-AFM oiling system. Not a direct replacement for active AFM or LSA applications.
Alternative packages — choose one
These are optional alternatives, not additional required purchases. Select the version that matches the intended engine, existing components and complete package contents.
- Recommended: Crow Cams Genuine GM LS3/L98 Lifter Overhaul Kit — Select the overhaul package matching the actual engine and early/late head-bolt arrangement. Use one appropriate overhaul kit, not several.
- Recommended: Crow Cams / Genuine GM LS1 Lifter Overhaul Kit - 2004 onwards — Select the overhaul package matching the actual engine and early/late head-bolt arrangement. Use one appropriate overhaul kit, not several.
- Recommended: Crow Cams Genuine GM LS1 Early/Long Bolt Lifter Overhaul Kit — Select the overhaul package matching the actual engine and early/late head-bolt arrangement. Use one appropriate overhaul kit, not several.
- Recommended: Crow Cams LSA Lifter Overhaul Kit — Select the overhaul package matching the actual engine and early/late head-bolt arrangement. Use one appropriate overhaul kit, not several.
BBT product selection and workshop support
Built by Boost & Tune is an authorised Crow Cams dealer and performance engine workshop. We can assist with the correct camshaft profile, compatible valve-train hardware, engine preparation, installation and calibration. Provide the exact engine code, intended use and existing components so the complete package can be checked before ordering.
Custom-order confirmation
This SKU represents a custom/order-specific camshaft service rather than one universal fixed cam card. The required profile must be confirmed against the engine specification before production. BBT can work through the intended use and supporting valvetrain requirements before the order is committed.
