Crow Cams Ford Falcon FG Quad Cam 315kw - Set — FG3152568
Crow Cams Ford Falcon FG Quad Cam 315kw - Set — FG3152568
Crow Cams FG3152568 is a four-camshaft engine set for the Ford Falcon FG 315 kW engine only. Choppy idle with emphasis on bottom-end and mid-range response.
Camshaft specifications
| Supplier part number | FG3152568 |
|---|---|
| Application | Ford Falcon FG 315 kW engine only |
| Operating range | 2700–6500 rpm |
| Advertised duration — inlet / exhaust | 278° / 278° |
| Duration at 0.050 inch — inlet / exhaust | 216° / 216° |
| Valve lift at 1.79 rocker ratio — inlet / exhaust | 0.545 / 0.510 inch |
| Lobe separation angle | 114° |
| Lash specification | Hydraulic / hydraulic |
Supplied contents
| RH inlet | 270-2568 |
|---|---|
| LH inlet | 271-2568 |
| RH exhaust | 272-2568 |
| LH exhaust | 273-2568 |

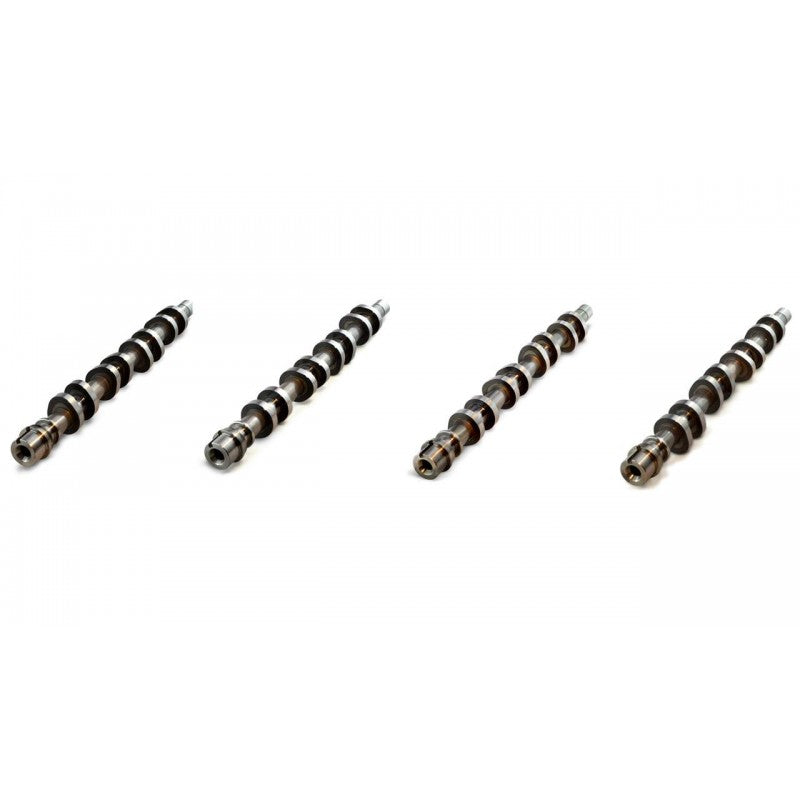

Four camshafts are supplied. Crow identifies RH as the driver side and LH as the passenger side. Springs, retainers, sprocket hardware and other supporting parts are separate.
Supporting parts and setup
The RH exhaust cam requires ARP 256-1001 to match its thread. Headers, suitable catalytic converters and ECU calibration are required; a vernier gear set may also be needed.
Performance springs are required: 1804-16 for the inlet at Crow’s stated 43 mm installed height, and 1809-16 for the exhaust at 39.06 mm. The inlet and exhaust sets each contain 16 springs.
Contact BBT for the listed companion parts and the correct timing hardware for your engine.
Installation and BBT support
Have the installer verify cam timing, piston-to-valve clearance, spring pressures, coil-bind clearance and retainer-to-seal clearance on the actual engine. BBT can help select the supporting parts and arrange installation and calibration.
Product System
- Engine Parts
Vehicle Fitment
- Ford Falcon Fg Boss 5 4
Confirm chassis, engine, drivetrain and production-year compatibility before ordering.
