Crow Cams Ford BA XR8 260 kW Valve Spring Kit

$1,046.05

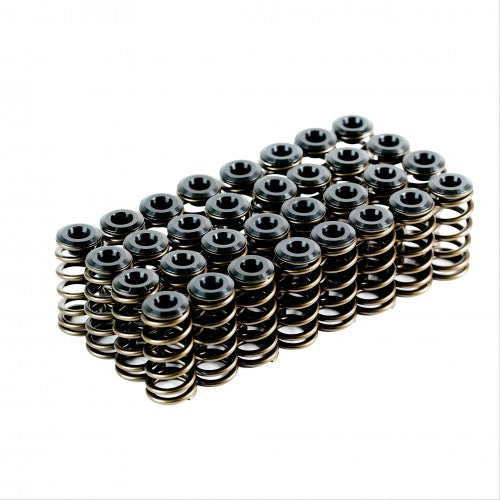

Crow Cams Ford BA XR8 260 kW Valve Spring Kit

Valve spring and retainer package for Ford BA XR8 260 kW engines manufactured up to May 2008.

Supplied components

Crow lists 1809-32 valve springs and 10704 retainers in this kit. The 1809-32 pack contains 32 springs. Springs and retainers are included together; do not add a second standalone spring set for the same installation.

Selection

Crow recommends this kit alongside BAF260XR8, BAF260XR8/2 and BAF260XR82. Match the kit to the actual cylinder heads and production date.

Installation and BBT support

Have the installer verify cam timing, piston-to-valve clearance, spring pressures, coil-bind clearance and retainer-to-seal clearance on the actual engine. BBT can help select the supporting parts and arrange installation and calibration.

Applications and compatibility

This part is listed for the following engine and vehicle applications where the Crow camshaft or valvetrain package calls for this exact part number:

Ford Falcon BA/BF — Boss 5.4L V8

Compatibility is still determined by the complete cylinder-head and camshaft combination; vehicle model alone is not a substitute for checking the required spring, retainer, lock, lifter and rocker setup.

Installation checks

Measure installed height on the actual cylinder heads and verify seat/open pressure, coil-bind margin, retainer-to-seal clearance and valve-guide clearance before running the engine. Do not assume nominal installed height from a different cylinder-head combination.

Associated Crow camshaft listings on BBT

This component is called up by Crow on applicable camshaft packages including:

The list above is representative rather than universal. Use the recommendation table on the exact camshaft page or contact BBT with the cam part number before ordering a complete valvetrain package.

Ordering and BBT support

Built by Boost & Tune can help confirm the correct Crow camshaft, springs, retainers, locks, lifters, rockers, timing components and supporting hardware as one compatible package. For modified cylinder heads, non-standard valves or an unknown existing combination, provide the engine specification and measured valvetrain details before ordering.
