Diamond forged piston kits for Mitsubishi 4G63
Four-piston kits for a 88 mm crankshaft stroke, 5.905-inch connecting rods and 1.375 in compression height. Choose the finished bore, crown volume and nominal compression ratio, then select the standard or H13 gudgeon-pin kit.

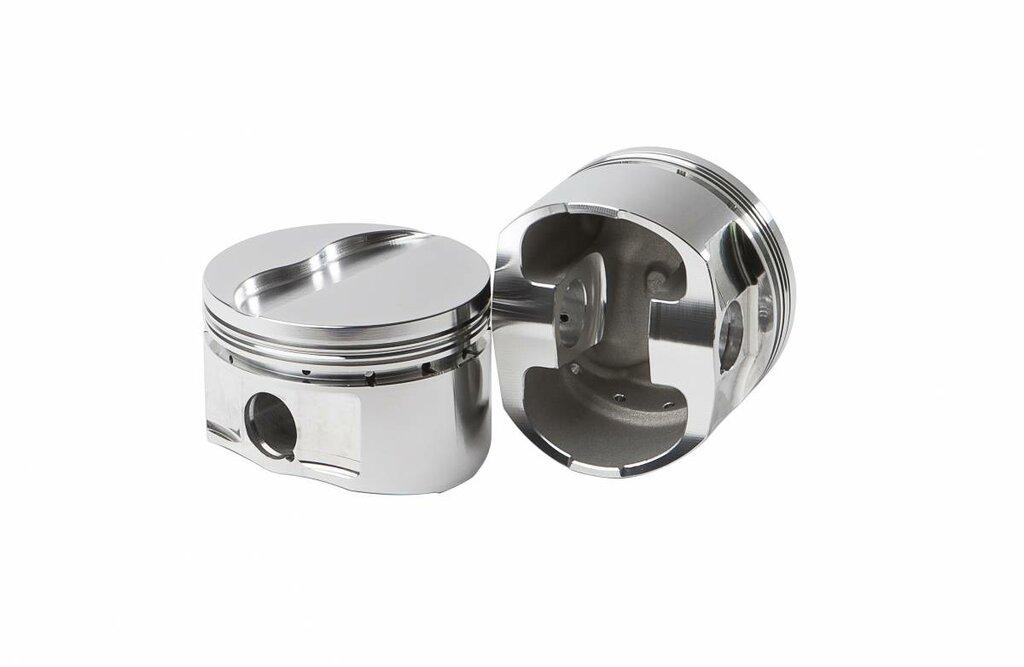

Representative Diamond catalogue photograph. Crown shape, valve reliefs and supplied components depend on the selected kit number.
Made to order and delivery
Special-order, made-to-order pistons. Allow approximately 5–6 weeks for delivery, pending Australian customs processing time. Manufacturing schedules, international freight and clearance can extend this estimate.
Construction and supplied components
- Forged 2618 aluminium with machined crown and valve pockets.
- Side gas ports, oil-ring-fed pin lubrication and moly-coated skirts.
- Four pistons, the listed ring set, fitted gudgeon pins and retainers included.
- Ring thickness: 1.00 mm x 1.20 mm x 2.80 mm.
- Pin dimensions: 0.866 in diameter × 2.250 in length.
- Valve-pocket depths: 0.200 in intake and 0.190 in exhaust. Check clearance with the actual cylinder head and camshafts.
Kit selection
| Kit SKU | Bore | Crown volume | Ratio | Included pin | Ring set | Retainer | Oil-rail supports |
|---|---|---|---|---|---|---|---|
| 82001-4 | 85.50 MM | -12.30 CC | 9.10:1 nominal | G8662250180C | 09513366 | 015113-8 | No |
| 82000-4-H | 85.00 MM | -12.30 CC | 9.00:1 nominal | H8662250225C | 09513346 | 015113-8 | No |
| 82002-4 | 86.00 MM | -12.30 CC | 9.10:1 nominal | G8662250180C | 09513386 | 015113-8 | No |
| 82000-4 | 85.00 MM | -12.30 CC | 9.00:1 nominal | G8662250180C | 09513346 | 015113-8 | No |
| 82001-4-H | 85.50 MM | -12.30 CC | 9.10:1 nominal | H8662250225C | 09513366 | 015113-8 | No |
| 82002-4-H | 86.00 MM | -12.30 CC | 9.10:1 nominal | H8662250225C | 09513386 | 015113-8 | No |
| 82003-4 | 85.00 MM | -8.00 CC | 9.50:1 nominal | G8662250180C | 09513346 | 015113-8 | No |
| 82003-4-H | 85.00 MM | -8.00 CC | 9.50:1 nominal | H8662250225C | 09513346 | 015113-8 | No |
| 82004-4 | 85.50 MM | -8.00 CC | 9.60:1 nominal | G8662250180C | 09513366 | 015113-8 | No |
| 82004-4-H | 85.50 MM | -8.00 CC | 9.60:1 nominal | H8662250225C | 09513366 | 015113-8 | No |
| 82005-4 | 86.00 MM | -8.00 CC | 9.70:1 nominal | G8662250180C | 09513386 | 015113-8 | No |
| 82005-4-H | 86.00 MM | -8.00 CC | 9.70:1 nominal | H8662250225C | 09513386 | 015113-8 | No |
Fitment and engine preparation
These kits use the listed 88 mm crankshaft stroke. Confirm the 5.905-inch rod length, pin diameter, block deck height and compression height before ordering. Do not interchange these with the separate long-rod or other stroker piston groups.
For a 4G63 engine build matching these dimensions. Have your engine builder confirm the block generation, 6-bolt or 7-bolt configuration, cylinder-head and valve geometry, measured bore and intended fuel/boost combination. Oversize bores require block assessment and machining.
Published compression ratios are nominal: chamber volume, deck clearance and head-gasket dimensions determine the assembled result. Check piston-to-wall clearance, ring gaps, pin fit, piston-to-valve clearance and rotating-assembly balance using the supplied Diamond instructions.
BBT workshop support
Boost & Tune can help coordinate pistons, rods, crankshaft, machining and tuning for your planned engine build. Connecting rods, crankshaft, machining and assembly are purchased separately.
